A custom plastic part usually begins as a CAD model.
However, a CAD model that looks perfect on a computer screen is not automatically ready for injection molding.
Between the first drawing and stable mass production, engineers must make a series of decisions involving material selection, wall thickness, draft angle, mold structure, gate position, shrinkage, tolerance, surface finish and quality control.
For OEM buyers, understanding this process makes it easier to communicate with a custom plastic injection molding manufacturer and avoid unnecessary tooling modifications.

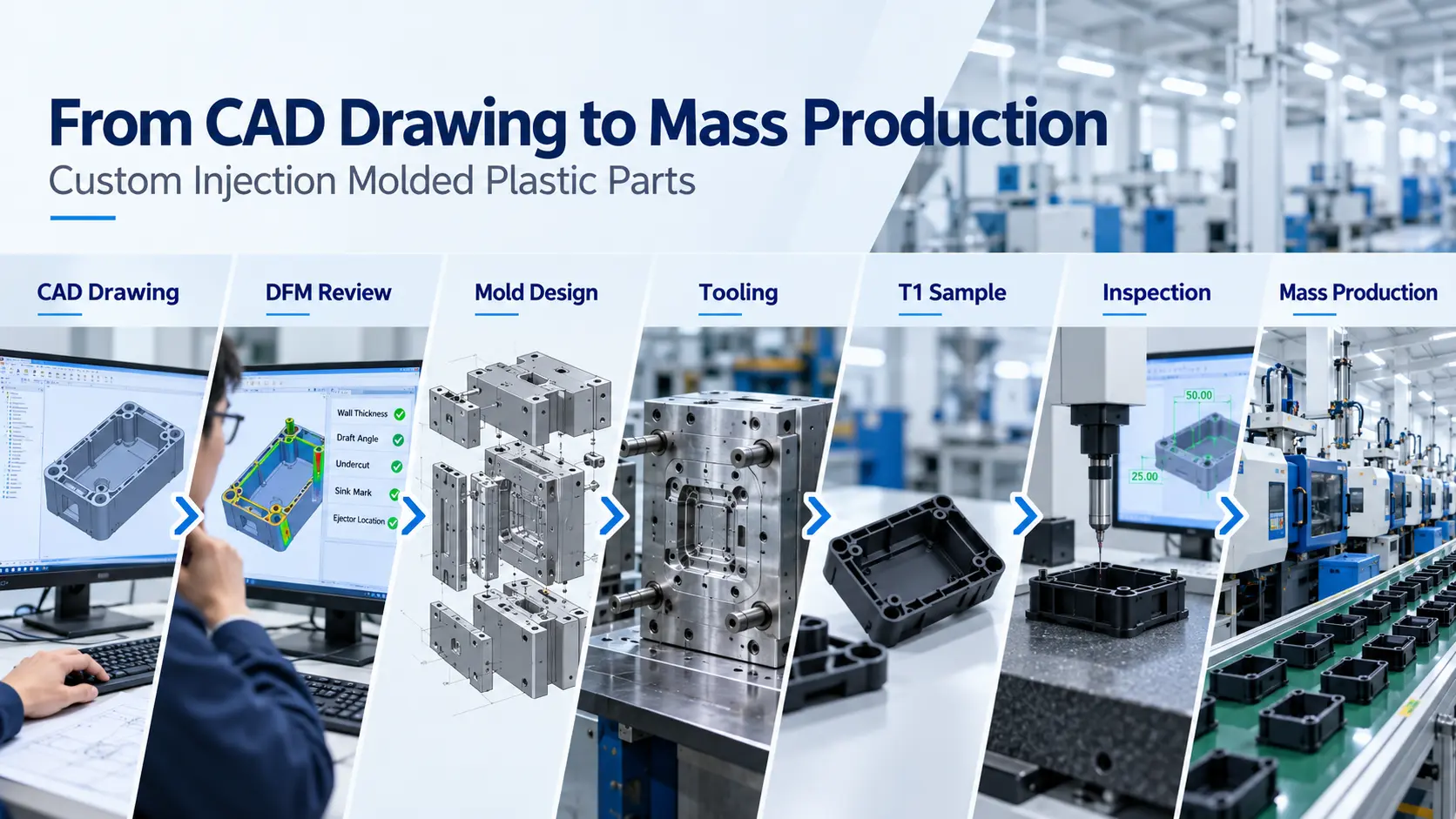

A well-managed injection molding project should move through several clearly controlled stages, from RFQ and DFM review to mold manufacturing, sample approval and mass production.
Step 1: Preparing the RFQ for Custom Injection Molded Plastic Parts
A reliable quotation begins with complete project information.
A product photo alone is usually not enough for an accurate custom injection molding quotation.
Where possible, customers should provide a 3D CAD model together with a 2D engineering drawing.
Common 3D file formats include STEP, STP, IGS and X_T.
The 3D file helps the manufacturer evaluate the complete geometry of the component, while the 2D drawing defines dimensions, tolerances and special technical requirements.
A complete RFQ should normally include:
- 3D drawing.
- 2D technical drawing.
- Material requirement.
- Color.
- Surface finish.
- Critical dimensions.
- First order quantity.
- Estimated annual demand.
- Operating environment.
- Assembly requirements.
- Special inspection requirements.
If the material has not yet been selected, the customer should explain the performance requirements instead.
For example, the manufacturer should know whether the component needs to withstand oil, repeated friction, high temperature, low temperature, outdoor UV exposure or continuous mechanical load.
This information allows the supplier to evaluate the component as an engineering project rather than simply calculating a price from its shape.
Step 2: DFM Review Before Injection Mold Manufacturing
DFM stands for Design for Manufacturability.
It is one of the most important stages in a custom plastic injection molding project.
The purpose of DFM is to identify potential manufacturing problems before the mold is manufactured.
A good DFM review may evaluate wall thickness, draft angle, undercuts, ribs, bosses, parting lines, gate location, ejector positions and expected shrinkage.
Problems identified at this stage are normally much cheaper to solve than problems discovered after tooling is complete.
Wall Thickness
Wall thickness has a major effect on molding stability.
Extremely thick areas cool more slowly than thin areas.
This can result in sink marks, internal voids, excessive cycle time and dimensional instability.
Sudden changes in wall thickness can also create uneven shrinkage.
Where possible, the component should use reasonably uniform wall thickness.
If greater stiffness is required, ribs may often be more effective than simply making the entire part thicker.
Draft Angle
Draft allows the molded component to release from the mold.
Vertical walls with insufficient draft may create excessive friction during ejection.
This can cause scratches, drag marks or deformation.
The appropriate draft depends on part depth, material and surface texture.
A highly textured surface normally requires more draft than a polished surface.
Undercuts
An undercut is a feature that prevents the component from being removed directly from the mold.
Some undercuts require sliders, lifters or other moving mold mechanisms.
These features increase tooling complexity, cost and maintenance requirements.
In some cases, a small product design change can eliminate an undercut completely.
This is one of the most valuable functions of DFM review.
Ribs and Bosses
Ribs are widely used to improve stiffness while keeping wall thickness under control.
However, ribs that are too thick may produce sink marks on the opposite cosmetic surface.
Bosses for screws, inserts or assembly also require careful design.
They should provide sufficient strength without creating excessively thick plastic sections.
Gate and Ejector Locations
Gate position affects how molten plastic enters and fills the cavity.
It can influence weld lines, air traps, warpage and appearance.
Ejector pin positions also need to be considered because ejector marks may remain visible on the finished component.
If cosmetic surfaces are important, these positions should be discussed before tooling begins.
Step 3: Confirming the Injection Molding Material
Material should ideally be confirmed before final mold design.
Different plastics shrink differently during cooling.
ABS, PP, POM, PA66 and PC do not have identical shrinkage or flow behavior.
Even different grades within the same material family can behave differently.
For example, PA66 GF30 does not mold in exactly the same way as unfilled PA66.
Glass fiber reinforcement changes stiffness, shrinkage and flow characteristics.
Changing material after the mold has already been manufactured may therefore affect dimensions and warpage.
A professional plastic injection molding manufacturer should review both the material family and the exact grade where required.
Material selection should consider:
- Mechanical strength.
- Impact resistance.
- Operating temperature.
- Chemical exposure.
- Moisture.
- Wear.
- Friction.
- UV exposure.
- Electrical properties.
- Flammability.
- Dimensional stability.
For critical OEM components, the approved production resin should remain consistent unless the customer authorizes a change.
Step 4: Injection Mold Design
Once the DFM review and material are confirmed, detailed injection mold design begins.
The mold engineer determines the core and cavity structure, parting line, gate system, runner system, cooling channels, ejector system and any required sliders or lifters.
The expected production quantity also influences the design.
A project requiring only a few thousand parts may use a relatively simple mold.
A high-volume OEM project may justify more durable tooling, multiple cavities and more optimized cooling.
Single-Cavity or Multi-Cavity Mold?
A single-cavity mold produces one component during each molding cycle.
A multi-cavity mold can produce several identical parts at the same time.
Multi-cavity molds normally require a higher initial tooling investment, but they can significantly reduce unit production cost when annual demand is high.
The correct choice depends on production volume, component size, molding machine capacity and target cost.
This is why buyers should provide realistic annual quantities during the RFQ stage.
Mold Steel Selection
Mold steel should match the expected production volume and plastic material.
A low-volume project does not necessarily require the same tooling specification as a project expected to produce millions of components.
Glass-filled engineering plastics may also create greater tool wear than some unfilled materials.
Using excessively expensive tooling can increase unnecessary initial investment.
Using insufficient tooling for a high-volume project may create maintenance and consistency problems.
Cooling System
Cooling is a major part of the injection molding cycle.
After molten plastic fills the mold, the component must cool enough to maintain its shape during ejection.
Poor cooling design can cause longer cycle times and uneven shrinkage.
For larger or more complicated components, cooling channel design can have a significant effect on both productivity and dimensional stability.
Step 5: Mold Manufacturing
After the mold design is approved, physical tool manufacturing begins.
Depending on mold complexity, this may include CNC machining, EDM, wire cutting, grinding, polishing and fitting.
Complex molds containing sliders, lifters or inserts require additional machining and assembly.
At this stage, design changes become much more expensive.
If the customer's product design is still changing frequently, it is normally better to resolve major design decisions before mold manufacturing begins.
Once mold steel has been cut, even a small product modification may require additional machining or replacement of mold components.
Good revision control is therefore very important.
The customer and manufacturer should clearly confirm the final drawing revision before tooling begins.
Step 6: The First Mold Trial
After the mold is completed, the first molding trial is carried out.
This may be called T0, T1 or First Trial depending on the supplier's terminology.
The purpose is not simply to produce a sample.
Engineers use the first trial to evaluate whether the mold fills correctly, whether the component ejects properly and whether visible or dimensional defects appear.
Common injection molding defects include:
- Short shots.
- Flash.
- Sink marks.
- Weld lines.
- Burn marks.
- Flow marks.
- Warpage.
- Ejector marks.
- Dimensional deviation.
Some defects can be corrected through process parameter adjustments.
Others require mold modification.
The engineering team needs to determine the root cause rather than simply adjusting the machine until the part looks acceptable.
Step 7: Sample Inspection
After the first trial, molded samples should be inspected against the approved technical drawing.
Critical dimensions receive particular attention.
Depending on the project, inspection equipment may include calipers, micrometers, height gauges, optical measurement systems, gauges or coordinate measuring machines.
The inspection method should match the required tolerance.
For example, ordinary calipers may be suitable for some general dimensions but may not provide sufficient accuracy for very tight tolerances.
Customers should clearly identify critical dimensions on the drawing.
This allows the manufacturer to focus measurement and process control on the dimensions that actually affect product function.
Step 8: Functional and Assembly Testing
Dimensional inspection alone does not always prove that a component will work correctly.
Many custom injection molded plastic parts are installed together with metal components, rubber seals, bearings, screws or other plastic parts.
A molded component may technically meet individual dimensions but still have assembly problems because of accumulated tolerances.
Where possible, actual assembly testing should therefore be carried out.
Typical checks may include:
- Fit with mating components.
- Screw installation.
- Snap-fit performance.
- Clearance.
- Movement.
- Sealing.
- Insertion force.
- Pull-out force.
- Appearance after assembly.
For industrial components, the customer may also perform real application testing before final approval.
Step 9: Mold Modification
It is normal for some custom injection molds to require adjustment after the first trial.
This does not automatically mean that the tooling was manufactured incorrectly.
Injection molding involves complex interactions between geometry, material flow, cooling and shrinkage.
The important point is that modifications should be controlled and documented.
The manufacturer should identify the problem and explain the proposed modification.
For example, a dimensional correction may require steel adjustment.
A filling problem may require a gate change.
Warpage may require adjustments to geometry, cooling or processing conditions.
Once the mold is modified, another sample trial is normally performed.
This process continues until the approved requirements are achieved.
Step 10: Approving the Golden Sample
When the component meets dimensional, functional and appearance requirements, an approved reference sample should be established.
This is often called a golden sample.
The golden sample becomes an important reference for future production.
It is particularly useful for characteristics that are difficult to define completely with numerical dimensions.
Examples include:
- Color.
- Texture.
- Gloss.
- Visible flow marks.
- Gate appearance.
- Ejector marks.
- General cosmetic quality.
The technical drawing remains the main dimensional specification, while the golden sample provides a useful physical reference for appearance and overall workmanship.
Step 11: Pilot Production
For complicated or important projects, a pilot production run can be useful before launching full mass production.
Producing a small number of parts tests whether the manufacturing process remains stable beyond the first few samples.
Pilot production may reveal problems related to:
- Cycle stability.
- Dimensional repeatability.
- Material handling.
- Packaging.
- Surface scratches.
- Assembly.
- Production efficiency.
A component that performs well during a short mold trial should also remain consistent during a longer production run.
For automotive, industrial equipment or other long-term OEM projects, this step can reduce mass-production risk.
Step 12: Mass Production
After the sample, drawing and production conditions are approved, regular injection molding production begins.
A stable production process should control key parameters such as material drying, barrel temperature, mold temperature, injection speed, injection pressure, holding pressure, cooling time and cycle time.
Operators should not make uncontrolled changes simply to increase production speed.
Repeatability is more important than maximizing short-term output.
Quality Control During Mass Production
Quality inspection should continue after the first article has been approved.
Mass production may involve thousands or hundreds of thousands of molding cycles.
Tool temperature, material condition and machine parameters can change over time.
Manufacturers should therefore use appropriate in-process controls.
Depending on the project, this may include first-piece inspection, periodic dimensional checks, visual inspection and final inspection before shipment.
For critical dimensions, inspection frequency can be defined according to customer requirements and production risk.
Material batches should also be controlled when traceability is required.
For repeat OEM orders, the same approved resin grade should be used unless another material is approved.
Why Tolerance Should Be Defined Carefully
One of the most common questions in injection molding is how tight plastic part tolerances can be.
There is no single tolerance that applies to every component.
Achievable tolerance depends on:
- Part size.
- Material.
- Geometry.
- Wall thickness.
- Mold design.
- Shrinkage.
- Environmental conditions.
- Measurement method.
- A small precision POM component cannot be treated the same way as a large PP housing.
- Very tight tolerances also increase cost.
They may require more accurate mold manufacturing, more mold modification, tighter process control and more inspection.
Instead of applying extremely tight tolerances to every dimension, engineers should identify the dimensions that actually affect assembly and function.
This produces a more practical and economical design.
Surface Finish and Cosmetic Requirements
Surface finish should also be confirmed before mass production.
Plastic parts may require polished, matte, textured or standard molded surfaces.
Customers should identify which surfaces remain visible after assembly.
Gate marks, parting lines and ejector marks may be acceptable in hidden areas but unacceptable on cosmetic surfaces.
If exact color matching is important, Pantone or RAL references can be provided.
However, a physical approved color sample may provide better control for sensitive appearance requirements.
For transparent parts, mold polishing and handling become even more important because scratches and flow marks may be more visible.
Secondary Processing After Injection Molding
Some custom plastic components require additional processes after molding.
Typical secondary operations include:
- Machining.
- Drilling.
- Threaded inserts.
- Ultrasonic welding.
- Printing.
- Painting.
- Laser marking.
- Adhesive bonding.
- Assembly.
These requirements should ideally be identified during the quotation stage.
Secondary operations affect production cost, lead time and quality control.
For example, if a brass threaded insert will be installed, the molded boss should be designed for the selected insert before tooling.
Adding such a requirement after the mold has been completed may require modification.
Packaging Custom Plastic Parts
Packaging is sometimes overlooked during product development, but it can directly affect final product quality.
Glossy plastic parts may scratch when they rub against each other during transportation.
Thin components may deform if they are packed under excessive pressure.
Transparent parts may require protective film.
Precision components may require individual bags or trays.
Packaging should therefore be selected according to part geometry, surface finish and transportation requirements.
The cheapest packaging method is not always the lowest-cost solution if it creates damaged parts during shipping.
What Should the Buyer Approve Before Mass Production?
Before mass production begins, the buyer should confirm the final drawing revision, material grade, color, surface finish, approved sample and critical dimensions.
The purchase order should reference the latest drawing revision.
Revision control is extremely important in custom manufacturing.
Sending multiple drawing versions through email, WhatsApp or other communication channels without clear revision numbers can easily lead to production mistakes.
Each engineering change should clearly identify the new drawing version.
The manufacturer should confirm receipt before production continues.
How to Get a Faster Injection Molding Quotation
The fastest quotation does not come from sending the shortest inquiry.
It comes from sending complete information.
For a custom plastic injection molding project, provide:
- 3D CAD drawing.
- 2D dimensional drawing.
- Material or performance requirement.
- Color.
- Surface finish.
- Critical tolerances.
- Initial quantity.
- Annual quantity.
- Application.
- Secondary processing.
- Packaging requirements.
When this information is available from the beginning, the supplier can focus on engineering and pricing rather than repeatedly requesting basic project information.
From CAD Drawing to Reliable Mass Production
Custom injection molding is not simply a process of putting plastic into a mold.
Successful production requires coordination between product design, material selection, tooling, mold trials, dimensional inspection and process control.
Problems identified during DFM are usually much easier and less expensive to correct than problems discovered after mold manufacturing.
For this reason, involving the injection molding supplier early in product development can reduce both project risk and unnecessary cost.
If you are developing a custom plastic component, send us your 3D drawing, 2D drawing, material requirement, quantity, critical tolerances and application information.
SWKS supports custom injection molded plastic parts from drawing review and mold development through sample validation and mass production.
Complete project information allows our team to evaluate your component more accurately and prepare a quotation based on your actual manufacturing requirements.
