Custom Molded Cover for Battery Terminal Protection

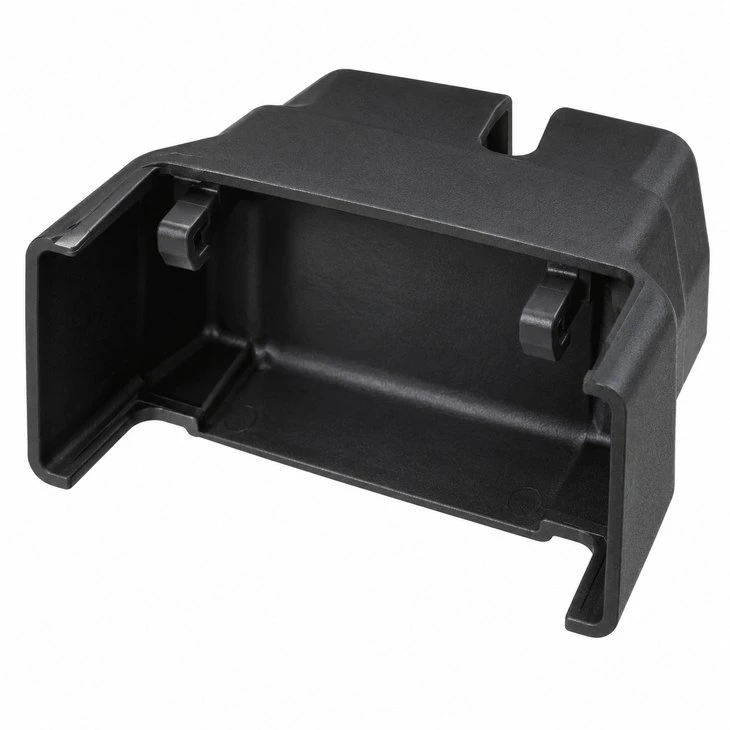

A battery terminal cover is a molded barrier fitted over a defined terminal and part of its cable connection. This PA66 concept shows a compact hood, lower skirt, snap features and a cable exit. The final shape depends on the terminal, cable lug, battery case and installation space. Images illustrate possible geometry; they do not represent a certified electrical component or a specific production design.
The cover is supplied as a plastic part unless otherwise stated. Battery, terminal, cable, fuse, fasteners and electrical assembly are separate. Confirm whether the cover shields one terminal, encloses a connection or helps retain a cable route. These functions require different clearances and attachment features.
Map the Terminal and Cable Envelope
Provide the terminal drawing or sample, including post or stud size and height, nut and washer envelope, cable lug orientation and cable bend direction. Mark installation datums and neighboring posts or case walls. Check the fit with the cable in its installed position, not only with the cover placed over an empty terminal.
Define opening size and skirt depth around the connection. If tightening or inspection access is needed, show tool clearance and cover removal direction. Specify cable and lug dimensions rather than relying on wire gauge alone. The exit notch should suit the route and avoid pinching.
Choose Retention for Service Access
Snap tabs may support tool-free installation where the surrounding case has a suitable engagement edge. Their position and deflection depend on the actual interface and service sequence. If a screw, hinge, clip or separate latch is needed, show it in the drawing and define whether it is included.
Allow removal clearance for battery maintenance. Do not assume an unverified battery-case feature or treat a concept latch as a validated retention force or cycle-life rating. Where repeated removal matters, specify the service conditions and review the full assembly.
Review PA66 Grade and Exposure
A generic PA66 description does not establish dielectric performance, flame behavior, chemical compatibility or long-term heat resistance for this cover. Specify the resin grade, reinforcement or modification, color and any required material properties. Filled and unfilled grades may differ in stiffness, shrinkage and snap behavior.
State battery type, location, temperature range, moisture and possible contact with electrolyte, cleaners, oil or fuel. Check these conditions against the selected resin data. Do not assume every PA66 grade is suitable for direct or repeated contact with battery acid.
See our custom molded nylon parts category for related PA components. For molded screw bosses or threaded inserts, review the threaded insert design guide.
Design the Hood and Molded Skirt
Review wall thickness, ribs, draft, radii and parting direction with the proposed mold design. Provide enough internal clearance for connection hardware without excess bulk. Tabs and ribs should support the selected retention method without crowding the terminal or cable. Identify restricted gate or ejector-mark areas and any required polarity or identification marks on the drawing. No warning symbols are represented in these text-free images.
Check Fit in the Complete Assembly
Review samples on the intended terminal, lug, cable and battery case. Check installation and removal, cable clearance, adjacent-part interference and retention under the agreed handling conditions. Identify critical dimensions and sample acceptance criteria. If environmental, vibration, temperature or electrical tests are required, define methods and limits for the full assembly with its design authority.
No voltage rating, dielectric withstand value, flame classification, ingress rating or safety certification is claimed for this concept cover. Such properties depend on the specified resin, geometry and assembled system and require applicable verification.
Information for a Custom PA66 Cover
Provide a 3D model or terminal and cable drawings, battery interface dimensions, resin grade, exposure conditions, color, quantity and any required assembly tests. Identify the retention style and surfaces that must remain accessible. Final clearances and performance requirements should be approved for the intended battery application. These generated images are concept views; final geometry follows the approved customer drawing.
Send your drawing or sample details to amanda@tjswks.com to discuss a custom PA66 industrial battery terminal insulating cover.
