Custom Injection Molded Nylon Latch Receiver Housings

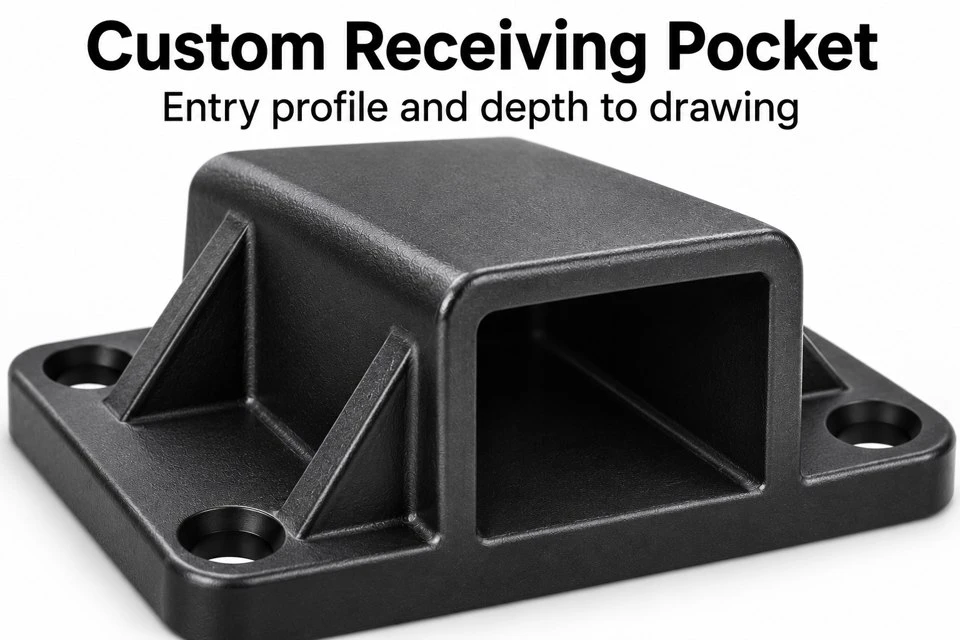

How Should the Receiving Pocket Match the Latch Tongue?

Supply the mating tongue drawing with its profile, travel and installed position. Define the required clearance and the surfaces that guide or retain the tongue. A nominal opening width alone cannot establish the full engagement relationship. Include any angular movement, door adjustment or offset that occurs during closing so the receiving geometry can be reviewed against the intended path.

The sample review should consider the entire opening and closing sequence. Explain whether the tongue enters straight into the pocket or approaches along an arc. Include nearby components that restrict access or movement. If multiple receivers are used on the same panel, show their positions and alignment method. These details support an assembly check that reflects how the equipment is fitted and used.

What Is Reviewed Before Injection Mold Manufacture?

The molding review considers wall sections, transitions, draft, rib construction and the direction used to form the receiving pocket. Gate placement, parting lines and ejection should be discussed where they affect appearance or engagement. Mark the functional contact surfaces on the drawing. Any suggested change to the pocket, ribs or base should be recorded for approval before the tool design is released.

Identify the critical dimensions and inspection datums. These may include opening size, pocket depth, mounting hole position and the relationship between the pocket and base. Apply specific tolerances to features that control the assembly, with agreed general requirements elsewhere. A dimensioned drawing should accompany the three dimensional model so purchasing, tooling and inspection teams work from a consistent revision.

If the project begins with an existing sample, explain whether it represents the approved geometry or a worn component. A damaged entry edge or distorted base should not automatically become the new design requirement. Where only photographs or a sketch are available, further dimensions may be needed before tooling can be quoted. Clear definition at this stage makes the proposed manufacturing scope easier to review.

How Can Samples Be Checked Before Production?

Sample inspection should reference the approved drawing, nylon grade, color and any agreed conditioning state. Measure the identified functional dimensions using the specified method. Fit the receiver to representative supporting parts and operate the intended latch through its travel. Check entry, seating, release and installation access. Record the result so approval is based on the complete assembly relationship.

A prototype can help establish the overall layout and available clearances, but its manufacturing method should be identified. A printed or machined model may not represent the material behavior or variation of an injection molded component. Use representative molded samples when approval depends on the selected resin and molding process. If repeated operation or environmental exposure is required, agree on the test configuration and acceptance criteria before evaluation.

How Are Repeat Production and Packaging Arranged?

Repeat orders should identify the part number, drawing revision, material designation and approved sample reference. This is useful when similar housings have different pocket widths or mounting patterns. Proposed changes to resin, reinforcement, color or geometry should be reviewed before manufacture. Keeping these details together helps purchasing and inspection teams distinguish the intended configuration across later production batches.

Packaging can be discussed according to the part geometry and receiving workflow. State whether bulk packing is acceptable and whether the pocket edges or mounting surfaces require separation during transport. Include quantities per pack and label information required by the assembly partner. For replacement stocks, clear identification helps the maintenance team select the correct receiver without relying solely on its external appearance.

What Is Needed for a Custom Latch Housing Quotation?

Send a STP, STEP or IGS model with a dimensioned drawing, material requirements and order quantity. Include the mating tongue, installation geometry, service conditions, expected repeat demand and delivery destination. Tooling cost, unit price, minimum order quantity, sample arrangements and lead time are confirmed after project review. If an assembly trial is planned, include the target date so the proposal can address the intended schedule.

Send your drawing, material and quantity for a custom nylon latch receiver housing quotation. Contact: amanda@tjswks.com / 0086-15222707659
