Tianjin SWKS Technology & Development Co.,Ltd is one of the most reliable manufacturers and suppliers of custom injection molded nylon split pipe clamps in China. If you're going to buy bulk cheap custom injection molded nylon split pipe clamps, welcome to get quotation from our factory. Quality products and low price are available.
Custom Injection Molded Nylon Split Pipe Clamps
Material: ABS/POM/PA66/PP/PC/PA/PU/TPE/TPU etc.
Processing Service: Injection
Drawing: STP/STEP/IGS
Contact: amanda@tjswks.com / 0086-15222707659

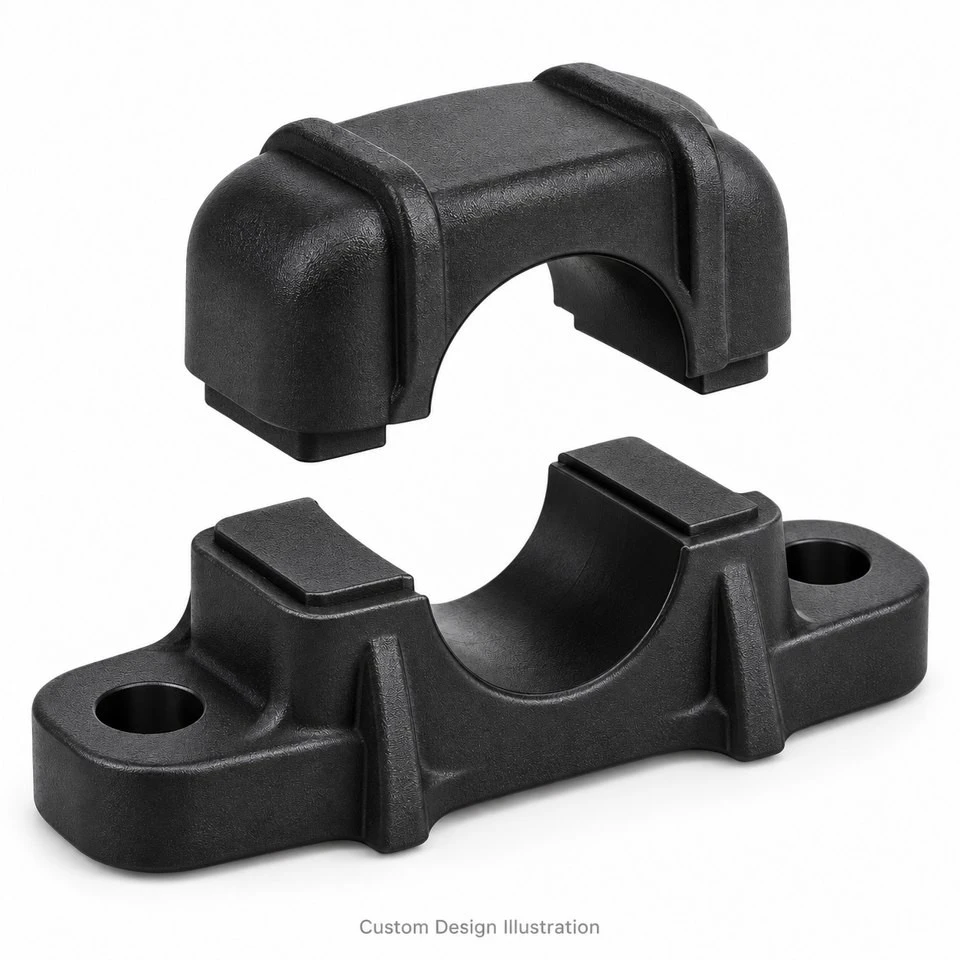

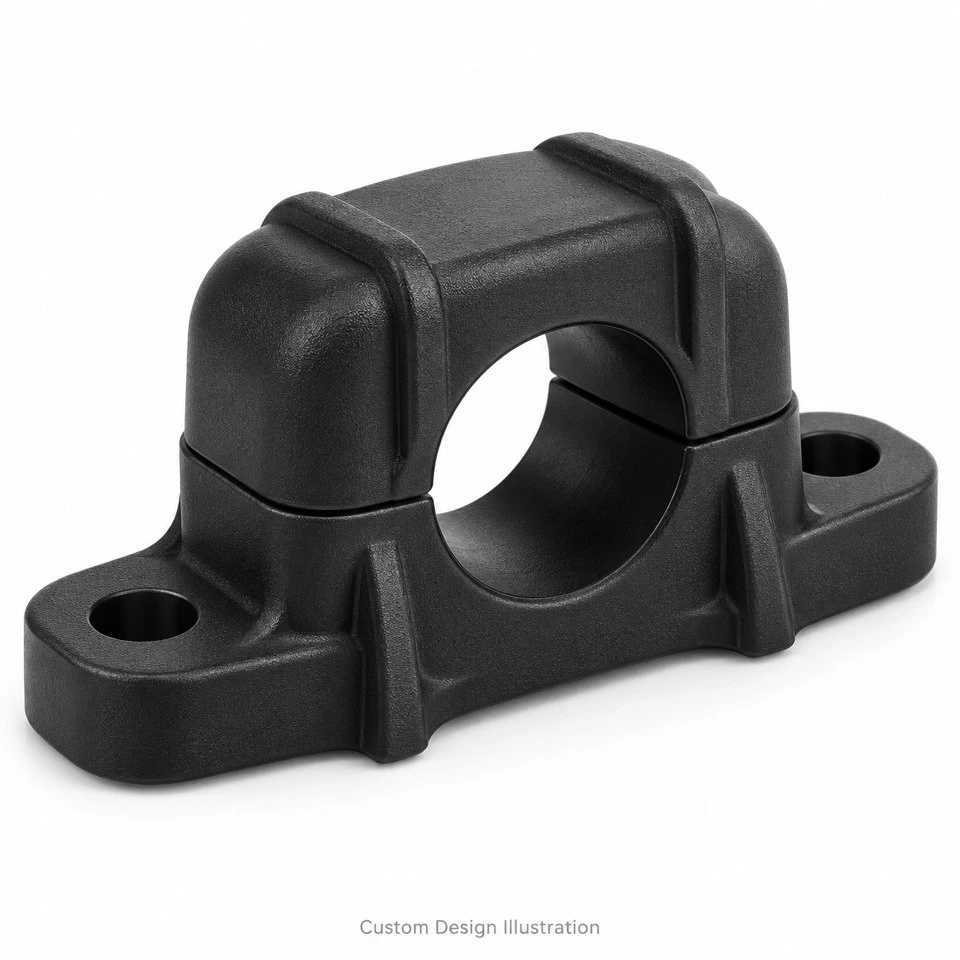

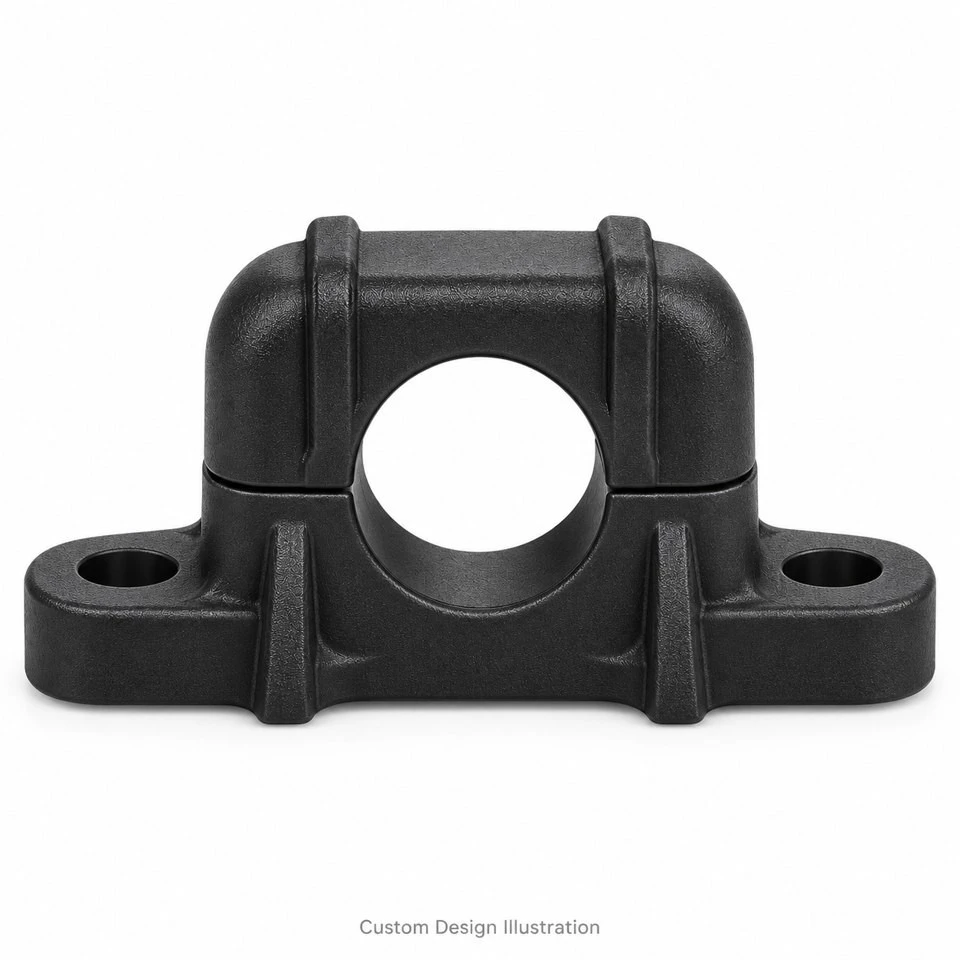

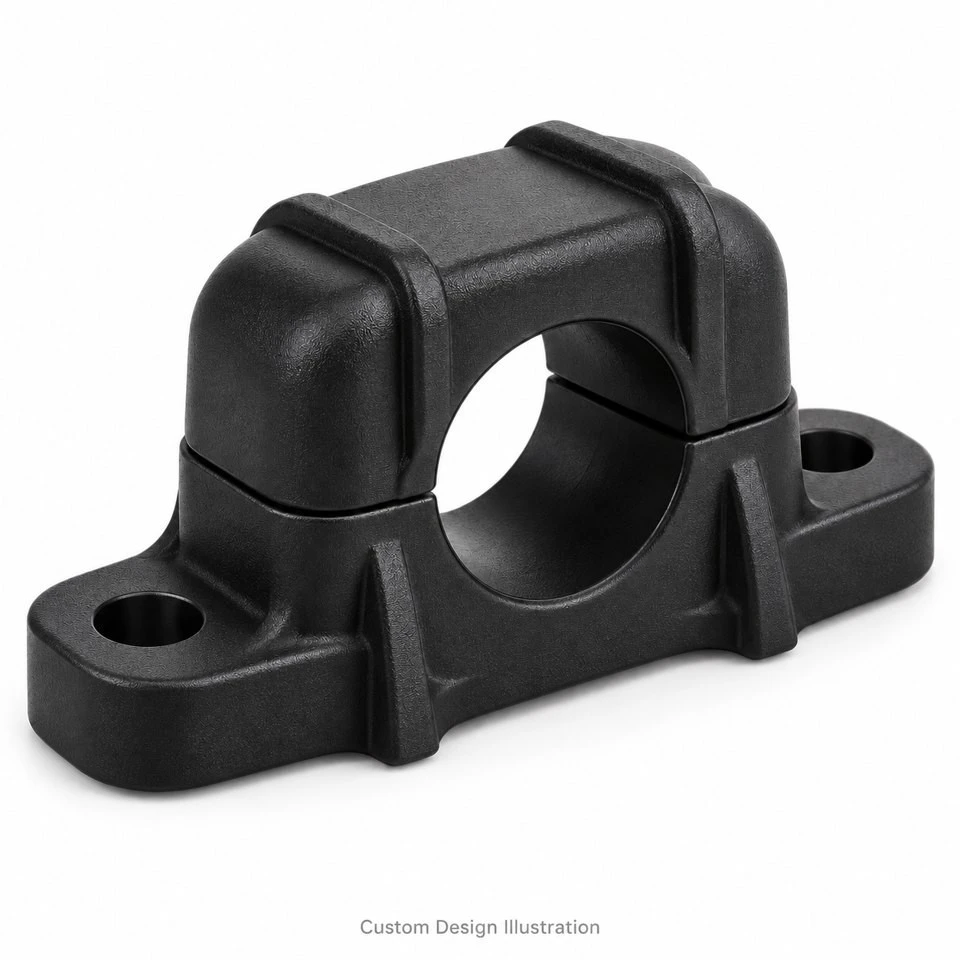

SWKS offers custom injection molded plastic pipe supports for equipment manufacturers seeking a component that matches their own installation space, mounting arrangement and tube routing. This product concept is a split nylon clamp with a circular seat, molded mounting ears and reinforcing ribs. The two-piece layout allows a designer to consider installation around an existing tube rather than sliding a closed ring over its end. Final construction, fastening and assembly requirements are reviewed against your drawing.
The illustrated component is a custom design example, rather than a stocked standard clamp with a fixed specification. Bore diameter, mounting hole spacing, overall envelope and material grade are established for each project. Send your model, mating tube information and purchase quantity so the geometry and molding approach can be reviewed together. A quotation can then identify the proposed material, tooling scope and inspection requirements without relying on assumptions taken from an image.
Where Can Custom Nylon Pipe Supports Be Used?

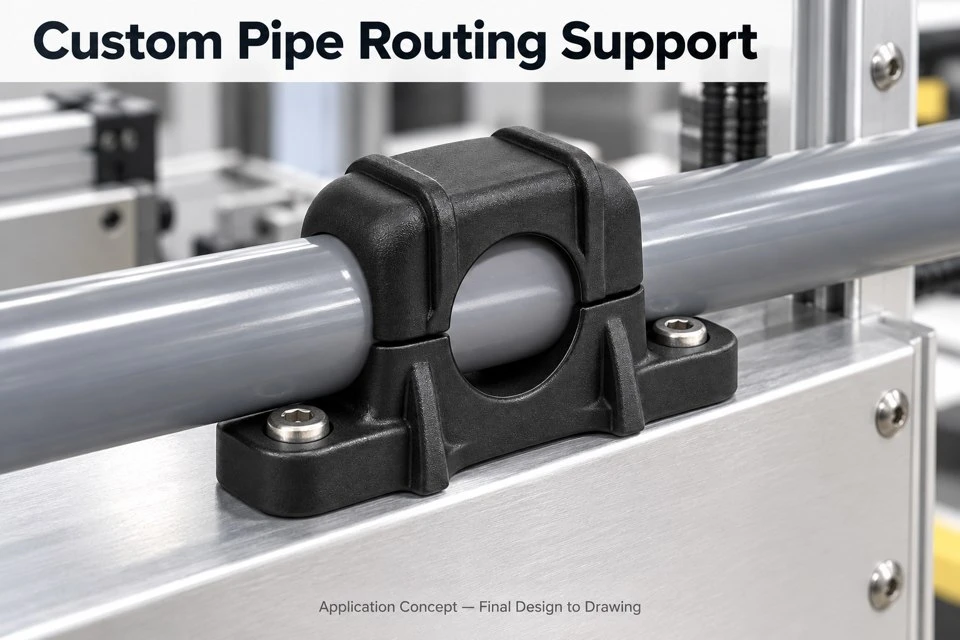

Potential applications include fluid routing assemblies, pneumatic equipment, packaging machinery, agricultural equipment and general industrial enclosures. A support can help locate a tube relative to the machine structure, maintain an intended route or organize adjacent lines. Suitability depends on the complete assembly. Tube movement, installation access, contact pressure and the consequences of a loose support must be evaluated by the equipment designer before a final configuration is approved.
Different installations require different functions. One assembly may need a close locating fit, while another must allow controlled movement for expansion or maintenance. Describe which function is intended in your inquiry. A photograph of an existing clamp does not communicate that distinction. Include nearby obstacles, the direction of service access and the location of the mounting surface so the proposed part can be assessed in the conditions where it will actually be assembled.
Which Features Can Be Customized to Your Drawing?

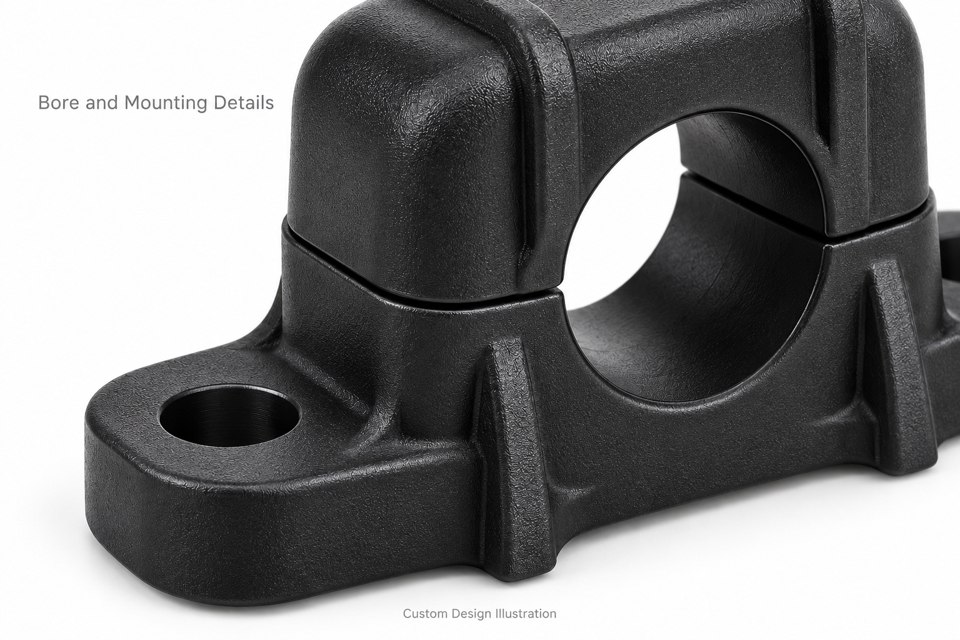

The design review can cover the tube seat profile, number of routing positions, external shape, mounting ears, fastener clearances and reinforcement layout. A customer may need an offset bore to clear another component or a longer base to match an existing panel. These features should be assessed together because a change to the mounting arrangement may also change the load path, available molding space or inspection method.
| Project Item | Information to Confirm |
|---|---|
| Tube interface | Outside diameter, surface condition, fit and permitted movement |
| Mounting arrangement | Hole spacing, fasteners, panel thickness and access |
| Material | Full resin grade, reinforcement and service environment |
| Appearance | Color reference, texture and visible surfaces |
| Order scope | Quantity, tooling, samples and packaging |
Identification features can also be discussed, including molded lettering, a customer part number or orientation marks. Provide the artwork and preferred location before tooling is finalized. Small lettering and fine details need a manufacturability review. If two halves are supplied as a matched set, define how they should be identified, packed and checked so receiving staff and assembly operators can distinguish the correct components.
How Should PA6, PA66 or Other Plastics Be Selected?

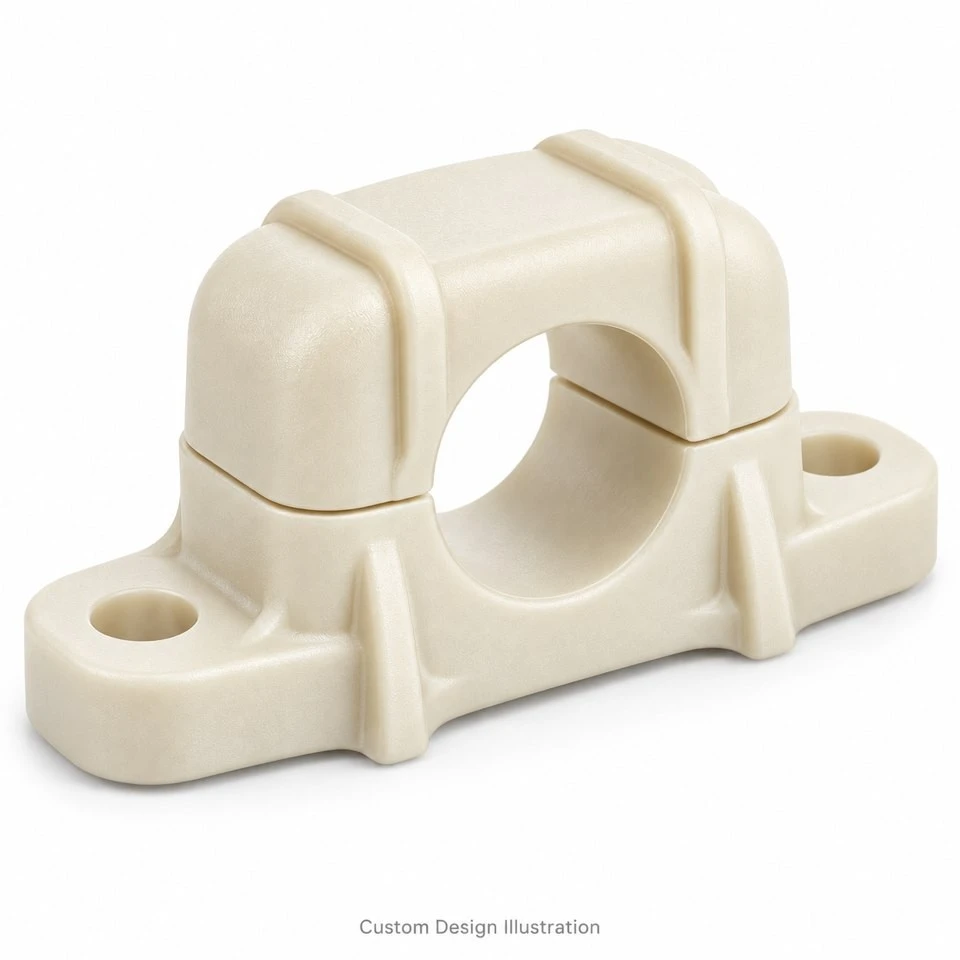

Nylon is a candidate material family for many mechanical supports, but the name alone is not a purchase specification. PA6, PA66, reinforced grades and modified formulations require separate evaluation. The selected grade must be considered alongside geometry, tube contact, loading and exposure. If you already have an approved material, send the full manufacturer and grade designation. If selection remains open, provide the required performance and ask for a clearly identified proposal.
Other materials from the listed molding range may be considered when the application calls for different behavior. This does not mean that every listed resin is interchangeable in the illustrated tool or suitable for the same duty. A substitution can affect fit, processing and part behavior. Agree on a grade before production approval, and establish how any later proposed substitution will be reviewed rather than accepting a generic material description on the order.
For nylon parts, the inspection condition deserves attention when the bore or mounting fit is critical. Moisture conditioning can influence dimensions and behavior. Specify the agreed condition for dimensional checks and explain the intended service environment. A sample measured immediately after molding should not automatically be treated as representative of every installation. Where necessary, the approval plan should compare relevant conditioning states against the same functional acceptance criteria.
What Loads and Assembly Conditions Should Be Defined?
Tell us whether the clamp locates a rigid tube, supports a flexible hose or separates lines inside an enclosure. Provide the direction and duration of relevant forces, expected vibration and any movement during service. The support spacing and adjacent restraints are also useful context. A single clamp cannot be assessed independently of the route it supports. The final designer should establish the appropriate number of supports and their positions.
Fastener selection and tightening require an assembly-level review. Define the screw size, washers or inserts where applicable, and the intended mounting stack. Excessive local compression or an unsuitable joint arrangement can affect a plastic support even when the external shape looks robust. The acceptable tightening procedure and retained fit should be established using representative components. Hardware supply, if required, should be explicitly included in the quotation rather than assumed from an application illustration.
How Are the Split Line and Tube Fit Reviewed?
A split clamp needs clear agreement on how its halves locate and remain secured. The illustrated design communicates one possible layout; the final joint may need different details to suit your equipment. Provide the assembly sequence, access direction and removal requirements. The review should identify whether the halves must close completely, retain a designed gap or use a specified fastening arrangement. These are functional decisions that should appear in the approved documentation.
The tube interface must also be defined beyond a nominal diameter. Include its tolerance, material, coating and any restrictions on surface marks. State whether gripping or clearance is intended. If the supported item is a hose, provide information about its construction and permitted compression. A bore that works for one tube or hose may not suit another with the same nominal size. Representative assembly trials help resolve these differences before production quantities are ordered.
What Should Be Considered During Injection Molding Review?
After receiving the model, the review can consider wall sections, ribs, transitions, draft, gate placement and ejection. The aim is to align the proposed geometry with the selected material and the intended process. Critical functional surfaces should be identified early so visible gate traces, parting lines or ejection marks can be discussed before the mold is made. Drawing requirements take priority over interpretations based only on the product rendering.
Tooling cost and unit price depend on the approved geometry, resin, cavity arrangement and order requirements. A simple change in a mounting feature can have implications for mold construction. For that reason, dimensions and material should be confirmed before treating a preliminary estimate as a final production price. Any agreed design changes should be incorporated into a controlled drawing revision so tooling and inspection follow the same definition.
How Can Samples and Production Parts Be Approved?
Begin approval with the agreed drawing revision, resin grade and inspection plan. Identify the dimensions that control installation, including the bore, hole spacing and mounting surface. General dimensional requirements can be recorded separately from these functional interfaces. This distinction helps focus the sample review on features that determine whether the part can be assembled and used as intended.
Representative molded samples should then be checked with the actual mating tube and mounting hardware. Record the installation method and the sample condition. Where vibration, repeated removal, sustained loading or environmental exposure matters, define a suitable test and acceptance criterion with the responsible designer. The result should describe retained fit and function, rather than simply stating that a sample looked acceptable after a brief demonstration.
Before repeat orders, agree on how approved samples, material identification and relevant inspection records will be retained. Document any restrictions on changes to the resin, color formulation or geometry. A production order should reference the correct revision and the agreed packaging requirements. Clear change control makes later deliveries easier to compare with the approved assembly and reduces ambiguity when different purchasing or engineering staff become involved.
What Packaging and Ordering Details Can Be Discussed?
Packaging can be reviewed around the part geometry and your assembly needs. Tell us whether the halves should be supplied together, separated by type or counted into sets. If identification labels or a customer part number are needed, include those instructions in the inquiry. Protection for visible surfaces and prevention of mixed revisions should be considered along with carton quantities. The final packing method is confirmed with the order.
Minimum order quantity, sample cost, tooling cost and production lead time are confirmed after reviewing the project. They are not fixed by the concept image. Provide the trial quantity and expected repeat demand so the quotation reflects your actual purchase plan. If an existing sample is available, it can support the discussion, but a sample alone does not establish the original resin grade or all dimensional tolerances.
What Information Is Needed for a Custom Pipe Clamp Quote?
Please send your STP, STEP or IGS model together with a dimensioned drawing, tube details, preferred material and quantity. Add operating conditions, mounting hardware information, required color and any applicable documentation requirements. Mark critical fits and explain how the clamp will be installed. If a requirement is still undecided, identify it clearly so the quotation can state the assumption or propose the next review step.
Images show custom design and application concepts. Final geometry, material, dimensions and performance are subject to the approved customer drawing and validation. No fixed load rating, certification or service life is implied by the illustrations.
Send your drawings, material requirements and quantity for a quotation. Contact: amanda@tjswks.com / 0086-15222707659
