Tianjin SWKS Technology & Development Co.,Ltd is one of the most reliable manufacturers and suppliers of custom injection molded pom conveyor guide blocks in China. If you're going to buy bulk cheap custom injection molded pom conveyor guide blocks, welcome to get quotation from our factory. Quality products and low price are available.

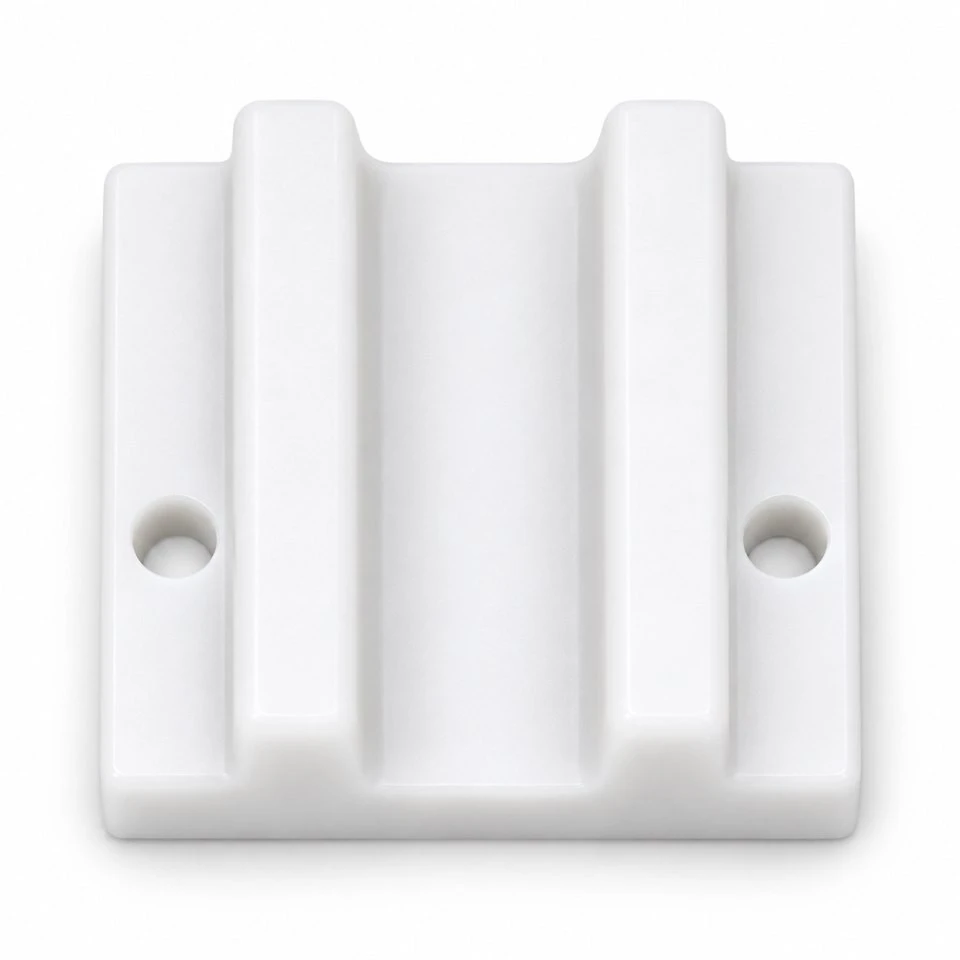

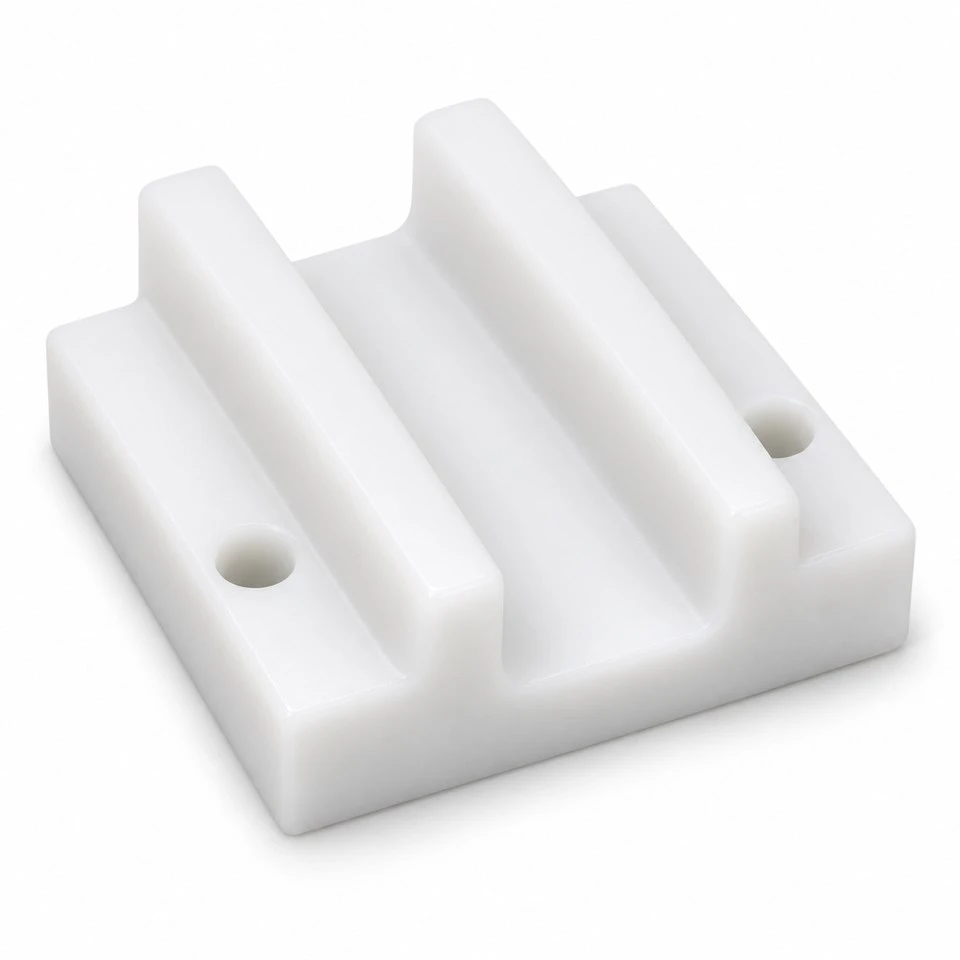

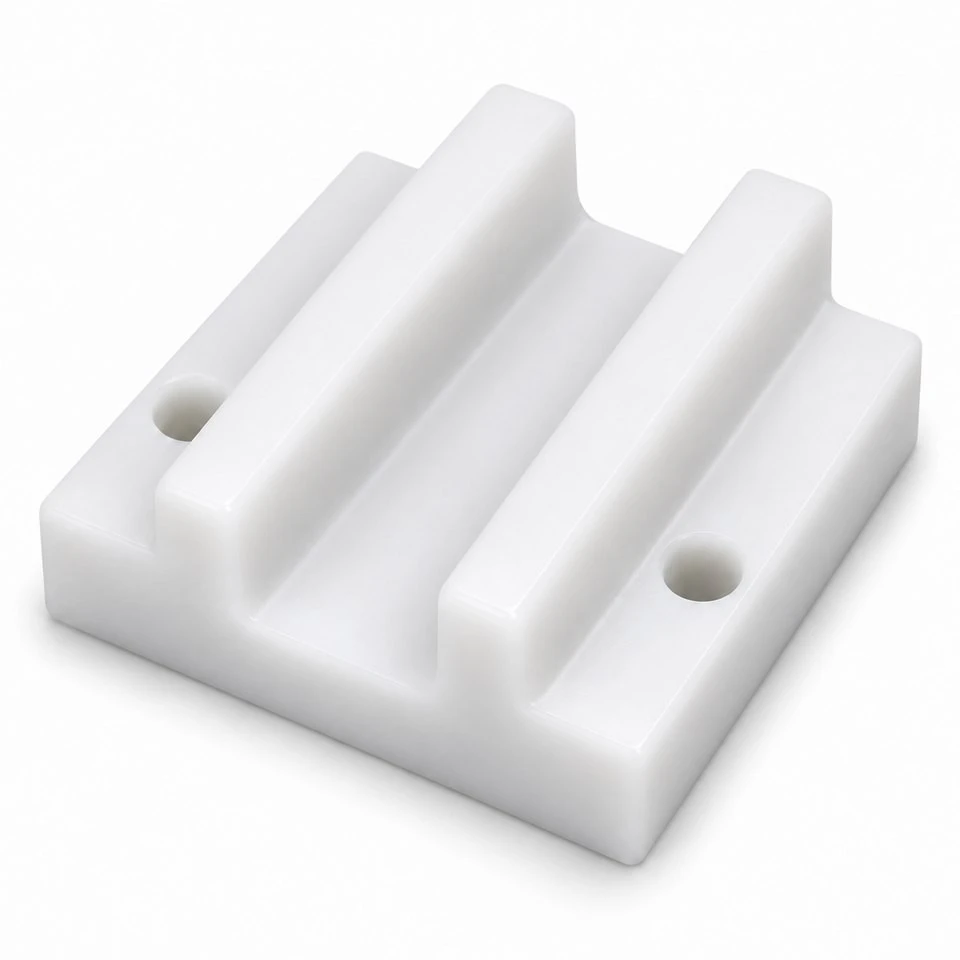

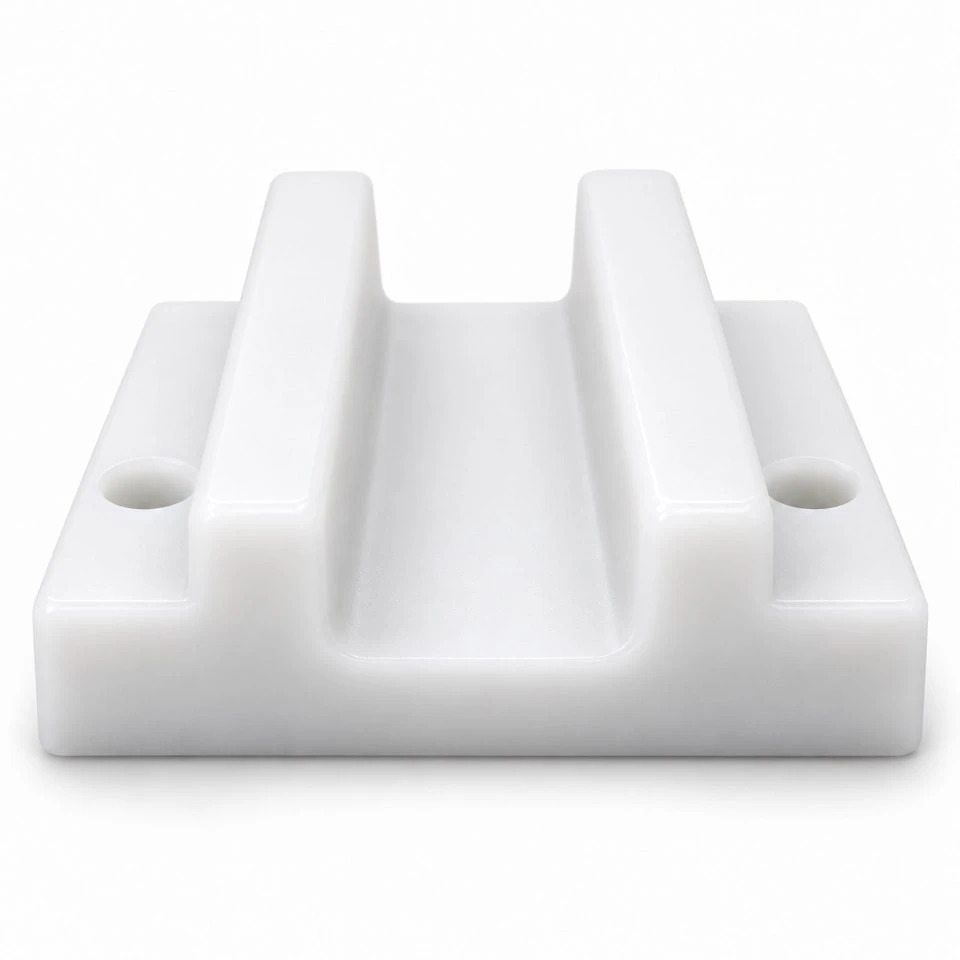

Custom Injection Molded POM Conveyor Guide Blocks
Material: ABS/POM/PA66/PP/PC/PA/PU/TPE/TPU etc.
Processing Service: Injection
Drawing: STP/STEP/IGS
Contact: amanda@tjswks.com / 0086-15222707659
| Custom Feature | Information to Supply |
|---|---|
| Guide channel | Width, depth, profile and mating component |
| Mounting pattern | Hole size, spacing, fasteners and base plate |
| Outside shape | Envelope, flange dimensions and clearances |
| Material | Resin grade, color and application requirements |
| Inspection | Critical dimensions, datums and acceptance method |
How Should the POM Material Grade Be Specified?
POM, also called acetal, is a material option for this custom guide block. The exact grade should be selected against the operating requirements and recorded in the quotation. If your engineering team has already approved a resin, provide its manufacturer and complete designation. Where the grade remains open, describe the service conditions so a proposed material can be reviewed before the mold and sample plan are finalized.
Specify whether the project requires POM copolymer, another acetal grade or a different polymer. Identify restrictions on recycled content, additives and color where they apply. The wider material list at the top describes the custom molding service and does not mean that these plastics are interchangeable in the same tool. Material changes can require a review of dimensions, processing and the approved assembly fit.

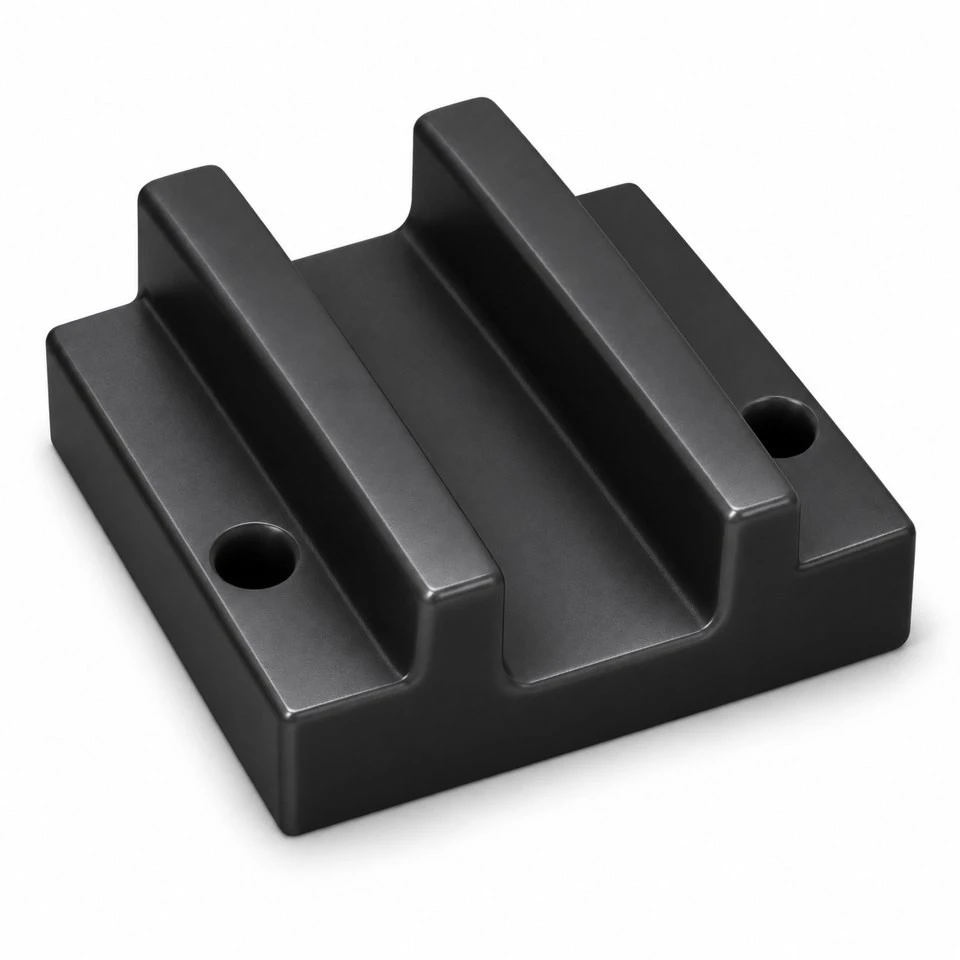

Color can be discussed alongside material selection. White and black versions are shown as product options, with the final shade subject to agreement. If a color reference is important, provide a physical master or an agreed reference and describe how it will be assessed. Requirements for food contact, electrical behavior or other documented properties must be stated for the actual application and confirmed for the selected grade.
What Clearance Is Needed Between the Block and Rail?
The guide channel should be defined with its mating rail rather than by nominal dimensions alone. Provide the rail drawing, its tolerances and the required movement. Explain whether the block guides continuously, supports only at certain positions or acts as a stationary locator. The designer should define the intended clearance and the conditions under which it is checked, including the installed position and surrounding constraints.
Alignment also matters when multiple blocks are installed along the same path. Include the mounting surface, block spacing and adjustment method in the review. A suitable clearance in a single loose component does not by itself confirm the assembled mechanism. Sample evaluation should check the actual rail through its intended travel, including end positions and any changes in direction that influence contact or movement.
Which Operating Conditions Should Be Included in the Inquiry?
Describe the load direction, expected movement, speed and frequency of operation. Include the temperature range and any contact with liquids, cleaners, oils or process materials. These details support a meaningful material and design review. A general product image cannot establish load capacity, service life or a permissible running condition, so requirements should be defined by the equipment team and linked to an agreed evaluation.
Where wear is a project concern, identify the mating material and its surface condition. Explain whether the contact is dry or lubricated and whether debris may enter the channel. If maintenance access is restricted, describe how the block is inspected and replaced. The acceptance plan can then focus on the functions that matter in the machine, with any testing scope and documentation confirmed before production approval.
What Is Reviewed Before Injection Mold Manufacture?
The tooling review considers the channel geometry, wall sections, transitions, draft and the locations of molding features. Mark the functional sliding surfaces and any areas where gate or ejection traces would interfere with use. This helps the manufacturing discussion address the contact geometry while keeping the mold construction consistent with the selected resin. Proposed changes should be recorded for customer approval before the model is released.
Hole position and the relationship between the channel and mounting base may be critical for a particular installation. Identify the datums used to inspect those relationships. Apply specific tolerances to the dimensions that control function, while using agreed general requirements elsewhere. A dimensioned drawing is useful alongside the three dimensional model because it makes the inspection priorities and revision status clear to both purchasing and quality teams.
For a new part, the tool quotation should state the component revision and the manufacturing operations included. If an existing sample is being reproduced, first establish the dimensions and material that the customer wants to retain. A worn sample may no longer represent the intended original geometry. Any uncertain features should be resolved through a drawing review rather than copied without understanding their function.
How Can Samples Be Checked Before Production?
Sample approval should reference the agreed drawing revision, resin grade and color. Dimensional inspection can cover channel width, mounting hole spacing, base geometry and other identified features. Where the part is used with a specific rail, include an assembly check using representative mating components. Record the result against a defined acceptance method so later orders have a clear reference for the expected fit.
A prototype can help confirm access and overall geometry during development. Its manufacturing method should be identified because it may not reproduce injection molded material behavior or production variation. For final approval, use representative molded samples when the decision depends on the selected resin and the molding process. If trial operation is required, agree on the machine setup, duration and criteria with the responsible equipment designer.
How Are Repeat Orders and Replacement Parts Defined?
Repeat orders should identify the part number, drawing revision and approved sample reference. This is particularly useful when similar blocks have different channels or mounting patterns. Keep the selected material and color connected to that specification. If the equipment design changes, review the new revision before ordering so the mold, inspection plan and purchasing record describe the same component.
Packaging can be arranged around the part shape and receiving process. State whether bulk packing is acceptable or whether the guide surfaces require separation during transport. Include labeling, quantities per pack and any assembly partner requirements. For replacement stocks, clear identification helps maintenance teams distinguish configurations and select the correct part without measuring every block at the time of installation.
What Is Needed for a Custom Guide Block Quotation?
Send a STP, STEP or IGS model with a dimensioned drawing, material requirements and order quantity. Include the mating rail profile, mounting information, expected repeat demand and delivery destination. Tooling cost, unit price, minimum order quantity, sample arrangements and lead time are confirmed after the project is reviewed. If there is a required trial date, include it so the proposed schedule can address that deadline.
If only a sample or sketch is available, explain the application and identify the dimensions that control installation. Photographs are helpful for discussing the shape, but a manufacturing proposal also needs a clear definition of the functional interfaces. We can discuss what further information is required to prepare a reviewable quotation for your custom molded component.
Send your drawing, material and quantity for a custom POM guide block quotation. Contact: amanda@tjswks.com / 0086-15222707659
