Custom Injection Molded ABS Display Mounting Bezels
Material: ABS/POM/PA66/PP/PC/PA/PU/TPE/TPU etc.
Processing Service: Injection
Drawing: STP/STEP/IGS
Contact: amanda@tjswks.com / 0086-15222707659
SWKS manufactures custom injection molded plastic display mounting bezels for industrial control panels, electronic instruments and equipment enclosures. The bezel forms the visible frame around a display opening and provides an interface with the surrounding panel. Its outline, viewing window and rear mounting features can be developed to follow your equipment drawing. This service is intended for buyers who need a dedicated molded component rather than a standard frame with an unsuitable opening or fixing pattern.

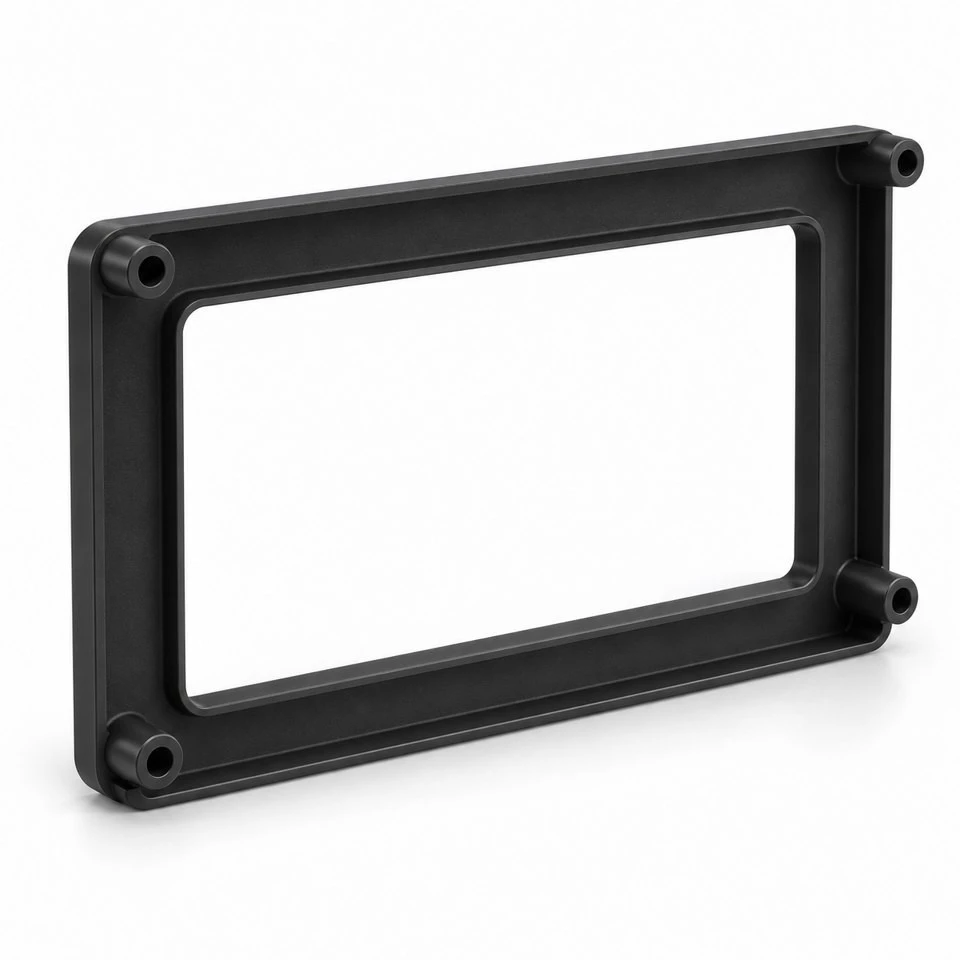

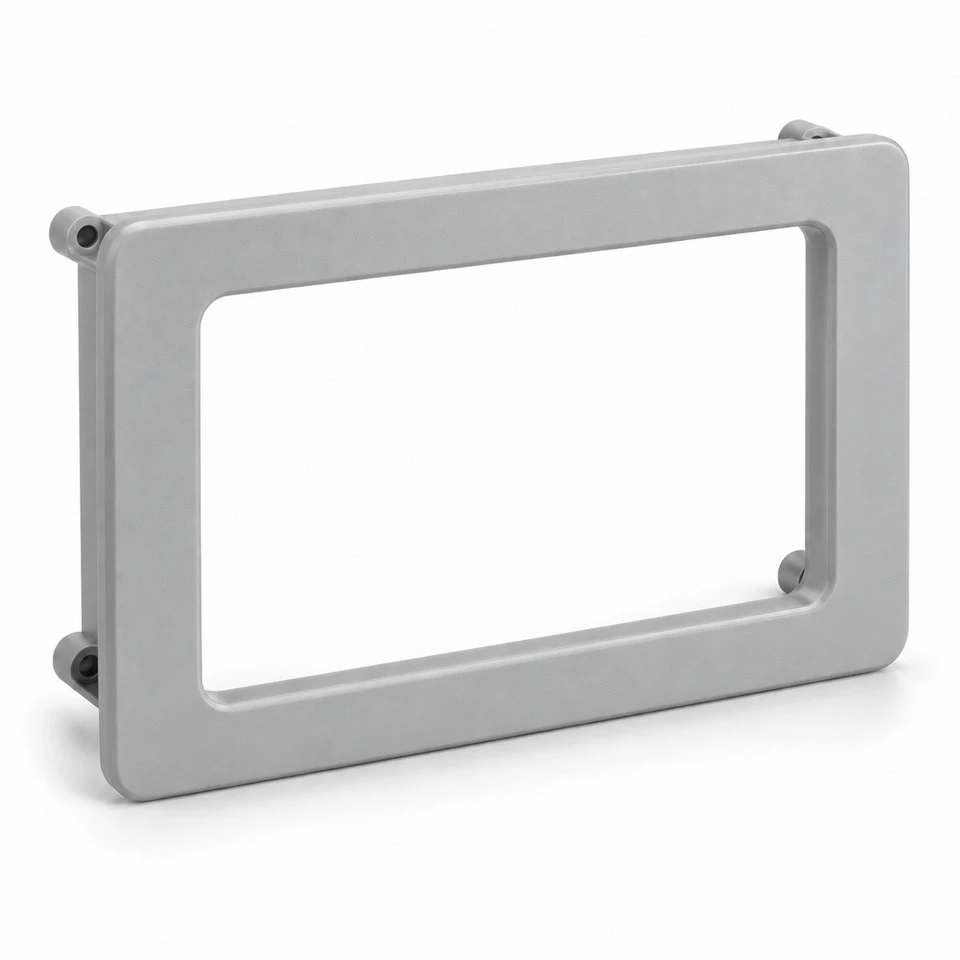

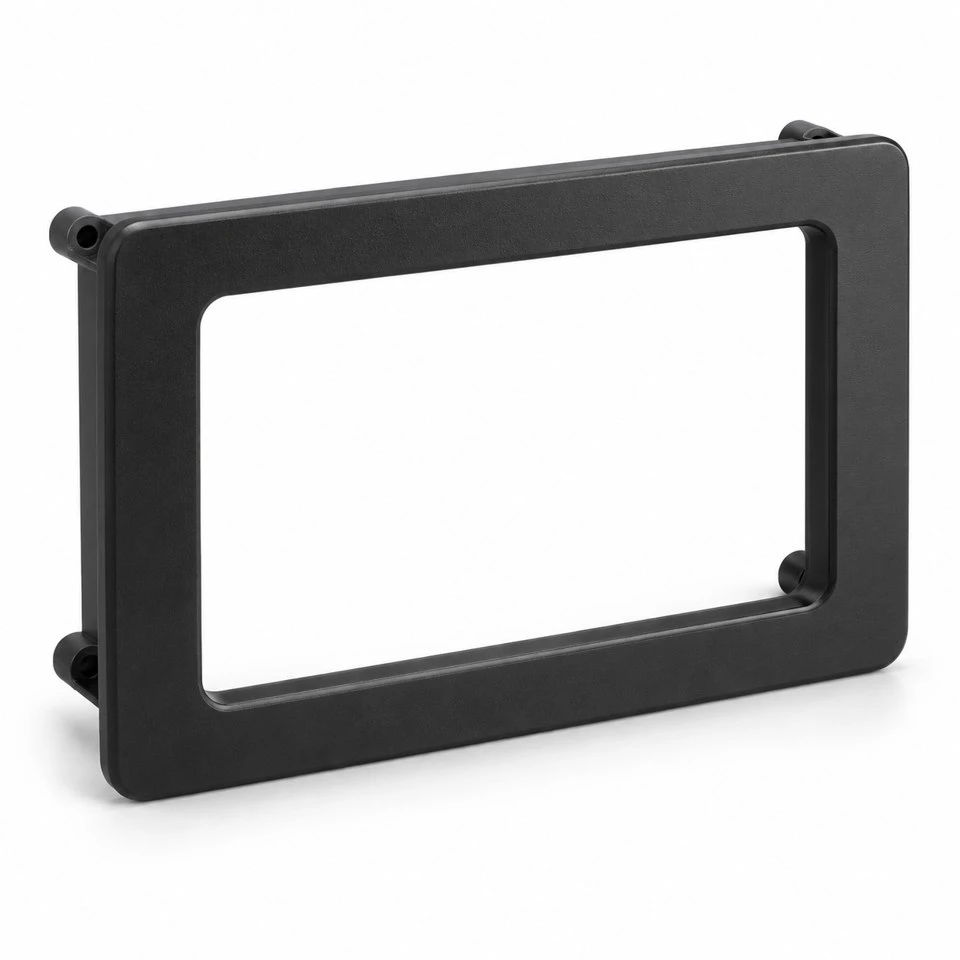

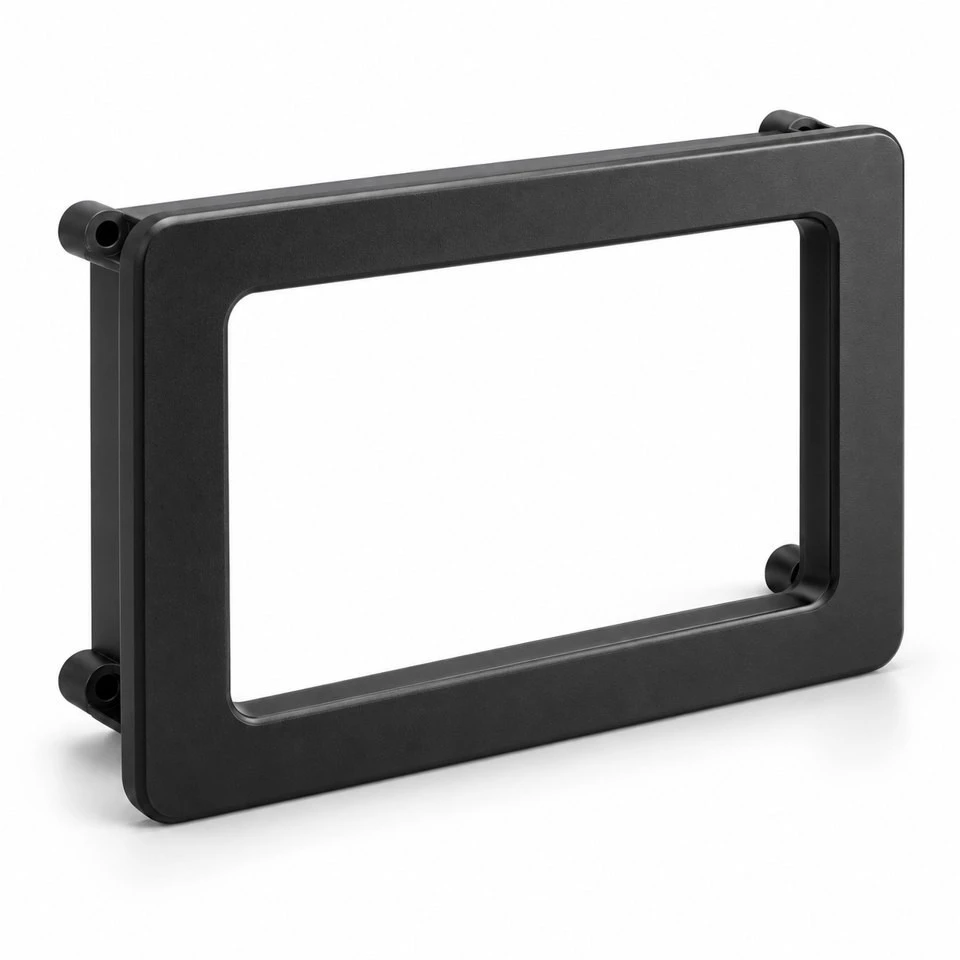

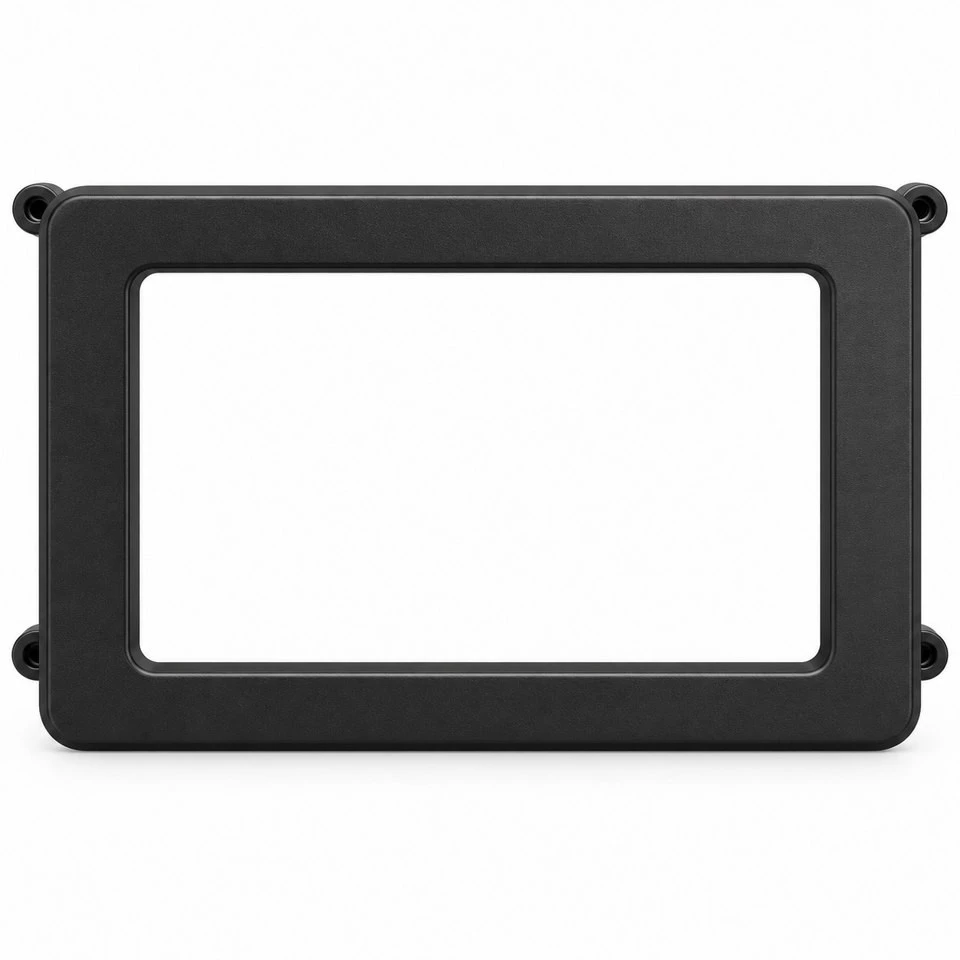

The design shown uses a rectangular open window, a flat front rim and a shallow rear skirt. Rear screw bosses provide a possible attachment arrangement for a custom assembly. Final dimensions, resin grade, color and mounting construction are confirmed against the approved drawing. The plastic bezel is quoted as a separate component; a display module, glass, gasket, fasteners and electronic parts are included only when specifically agreed in the order.
Where Can a Custom Display Mounting Bezel Be Used?

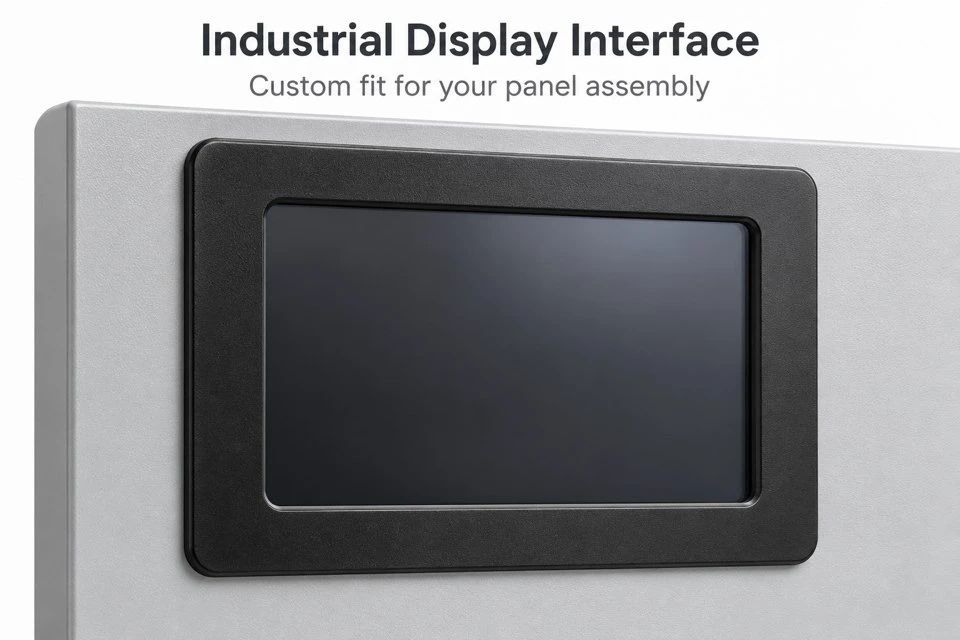

Potential uses include machine operator panels, measurement instruments, inspection equipment and electronic control enclosures. A bezel can finish the edge of a panel opening, locate a viewing area or provide mounting features around a display assembly. The required function depends on the equipment layout. Tell us whether the frame is primarily decorative, supports another component or forms part of a joint with a separate cover or seal.
Include an assembly view showing the display, panel and adjacent parts. This helps define available space behind the visible face and identifies any restrictions on assembly access. For an existing equipment model, explain which interfaces must remain unchanged. For a new design, identify the areas where the shape may be revised during tooling review so the proposal can address appearance and assembly together.
Which Bezel Dimensions and Mounting Features Can Be Customized?
Customization can include the outer length and width, corner radii, viewing opening and depth of the rear skirt. Front face width can follow the equipment appearance while the rear geometry follows the available mounting space. Screw bosses, locating shoulders and clearance features can be considered when they are defined in the model. Their positions should be reviewed with the panel and display drawings rather than inferred from the nominal screen size.
Other requested details may include a recess for a separate lens, a gasket seating surface or openings for adjacent controls. Provide a drawing of each mating component and identify which features belong to the bezel. If a threaded insert, secondary operation or separate accessory is needed, list it explicitly. The quotation can then distinguish the molded frame from any additional manufacturing or assembly work.
| Custom Feature | Information Required |
|---|---|
| Front face | Outside outline, rim width and appearance reference |

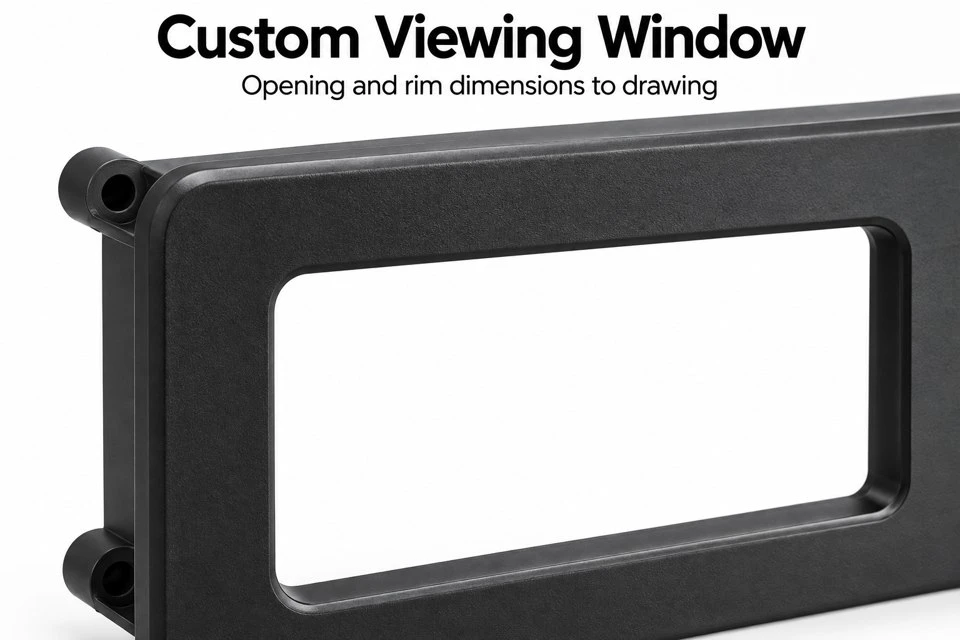

| Viewing window | Opening dimensions, corner radii and display clearance |

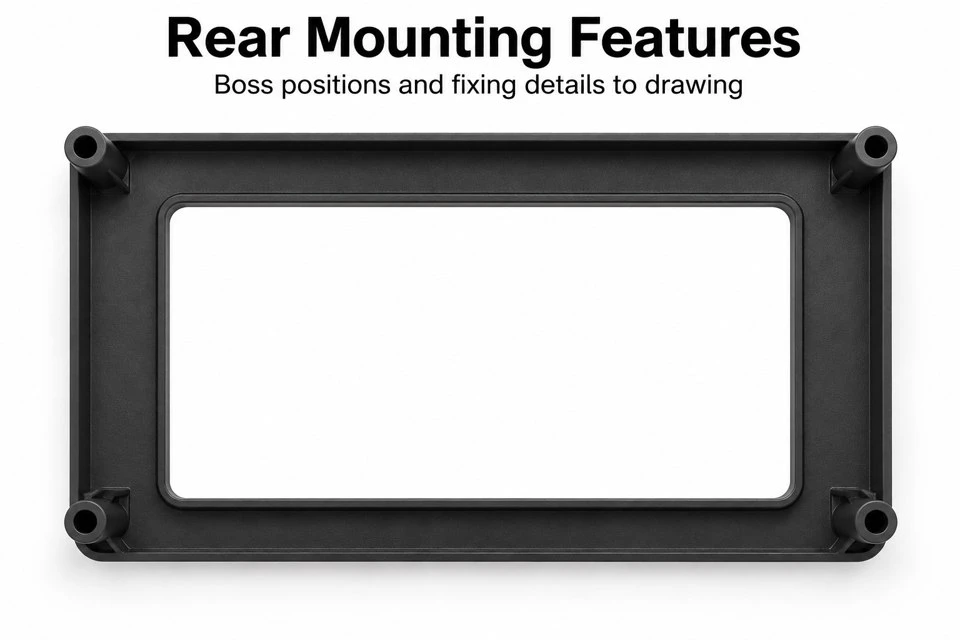

| Rear mounting | Boss positions, fixing method and panel geometry |
| Lens or gasket interface | Mating drawing, seating detail and assembly method |
| Material and finish | Resin grade, color and surface requirement |
How Should the Viewing Window Be Matched to the Display?
Supply the display module drawing with its active viewing area, overall envelope and mounting locations. A screen diagonal alone does not define the bezel opening. The window should be reviewed against the visible area and the module border, including any offset between the display center and the equipment panel. State which surfaces establish the display position so the drawing reflects the installed relationship.
The review should also account for the assembly sequence. Explain whether the display is installed from behind, mounted to a separate bracket or retained by another enclosure part. Include connectors and cable exits where they affect access. A clearance that appears sufficient in a front view may still interfere with a connector or fixing screw behind the frame, so a three dimensional assembly model is useful when available.
How Is the ABS Resin and Surface Finish Specified?
ABS is one material option for the custom display bezel. Provide the complete grade designation if the equipment team has already selected a resin. If material selection remains open, describe the operating environment, expected handling and documentation needs. The proposed grade should be agreed before tooling allowances and sample approval are finalized. A polymer family name alone does not establish suitability for every equipment application.
The broader material list at the top describes the custom molding service. It does not mean that ABS, PC, nylon and the other listed plastics can be substituted without a design review. A material change may influence fit, tooling and processing. Where an alternative is requested, state the reason and the required characteristics so the quotation identifies the actual material being considered.
Front surface texture and color should be specified with an appearance reference. Identify the surfaces visible after assembly and any areas where gloss variation would be noticeable. A physical color sample or approved master can support a clear acceptance agreement. If painting, printing or another finish is required, provide artwork and finish details separately so the proposed scope covers the requested operations.
What Should Be Defined for Rear Screw Bosses and Fixings?
The fixing arrangement should specify the screw type, insertion direction and available engagement space. Provide the panel or bracket drawing and state whether the assembly uses clearance holes, plastic screw engagement or inserts. Boss height, hole geometry and nearby walls should be reviewed together. The final construction follows the approved design and manufacturing review rather than a generic assumption about mounting features.
Identify the assembly access needed for tools and the order in which the display and bezel are fitted. If the frame is removed during service, describe the expected maintenance process. Where tightening torque or repeated removal matters, the responsible designer should define an appropriate evaluation and acceptance criterion. These requirements are best checked using representative molded samples and the intended mating hardware.
Which Application Requirements Should Be Included in the Inquiry?
Describe temperature conditions, sunlight exposure, cleaning methods and contact with chemicals or oils where relevant. Include mechanical loads if the bezel supports a lens, display or other component. The appearance of the product image does not define an operating rating. Material and design decisions should therefore begin with the equipment requirements and any specified verification methods.
If the assembly requires a seal, supply the gasket design and the mating surfaces that control compression. An open plastic frame does not by itself establish water or dust protection. State any enclosure test requirement for the complete assembly and identify who will perform the evaluation. Similarly, any flame classification or electrical documentation must relate to the selected resin and intended construction rather than a general description of ABS.
What Is Reviewed Before the Injection Mold Is Made?
The manufacturing review can address wall sections, transitions, draft, gate placement and ejection. The large central opening and the relationship between the face rim and rear features should be considered with the selected material. Mark cosmetic surfaces and functional interfaces clearly. This helps focus the tooling discussion on the areas where molding traces, parting lines or dimensional variation would affect the finished assembly.
Provide inspection datums for the viewing opening, mounting pattern and front seating surface. Apply specific tolerances to the features that determine fit, with agreed general requirements for other dimensions. A controlled drawing revision should accompany the three dimensional model so purchasing, tooling and inspection teams use the same specification. Proposed geometry changes should be approved before manufacture rather than introduced without a recorded revision.
For replacement projects, an existing physical sample can help explain the intended shape, but it may have wear or distortion. Identify which dimensions are original design requirements and which are measurements from the sample. Where only photographs exist, further dimensional definition will be needed before a mold proposal can be confirmed. Resolving those details early makes the quotation easier to review and compare.
How Can Samples Be Evaluated Before Production Approval?
Sample inspection should reference the approved drawing, material grade and color. Check the viewing window, mounting locations and seating surfaces against the agreed requirements. Then fit the bezel to representative panel and display components. Review the visible border, connector access and assembly sequence. Record the results so the approval describes a complete installed relationship rather than only a loose component.
Appearance evaluation should use agreed lighting and a representative viewing position. Identify cosmetic defects or surface variations that would be unacceptable on the equipment face. If trial operation or environmental testing is required, define the configuration and criteria in advance. A prototype can help check layout, while representative molded samples are needed when approval depends on the selected resin and injection molding process.
What Information Is Needed for a Custom Bezel Quotation?
Send a STP, STEP or IGS model, dimensioned drawing, material requirements and order quantity. Include the display and panel drawings, desired color, finish and expected repeat demand. Tooling cost, unit price, minimum order quantity, sample arrangements and production lead time are confirmed after the project is reviewed. If there is a target assembly trial date, include that date with the inquiry.
For repeat production, retain the approved part number, drawing revision and sample reference together. Packaging can be discussed according to the visible front surface and receiving process. State whether individual separation, protective packing or specific label information is required. Clear order identification helps distinguish similar frames with different viewing windows or mounting patterns and supports consistent purchasing across later production batches.
Send your drawing, material and quantity for a custom display mounting bezel quotation. Contact: amanda@tjswks.com / 0086-15222707659
