Tianjin SWKS Technology & Development Co.,Ltd is one of the most reliable manufacturers and suppliers of custom pa66 industrial proximity sensor protective guard in China. If you're going to buy bulk cheap custom pa66 industrial proximity sensor protective guard, welcome to get quotation from our factory. Quality products and low price are available.
Developing a sensor guard for an automation machine? Share your application details and CAD file with amanda@tjswks.com for a project-specific review.

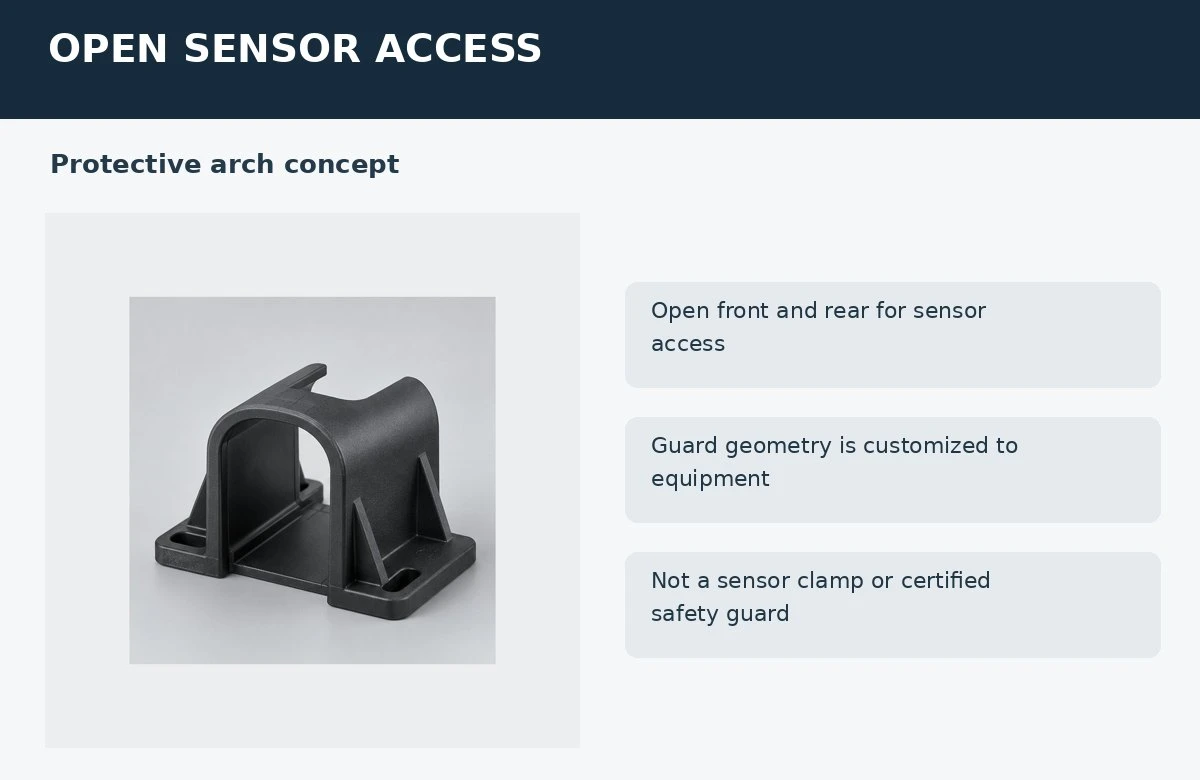

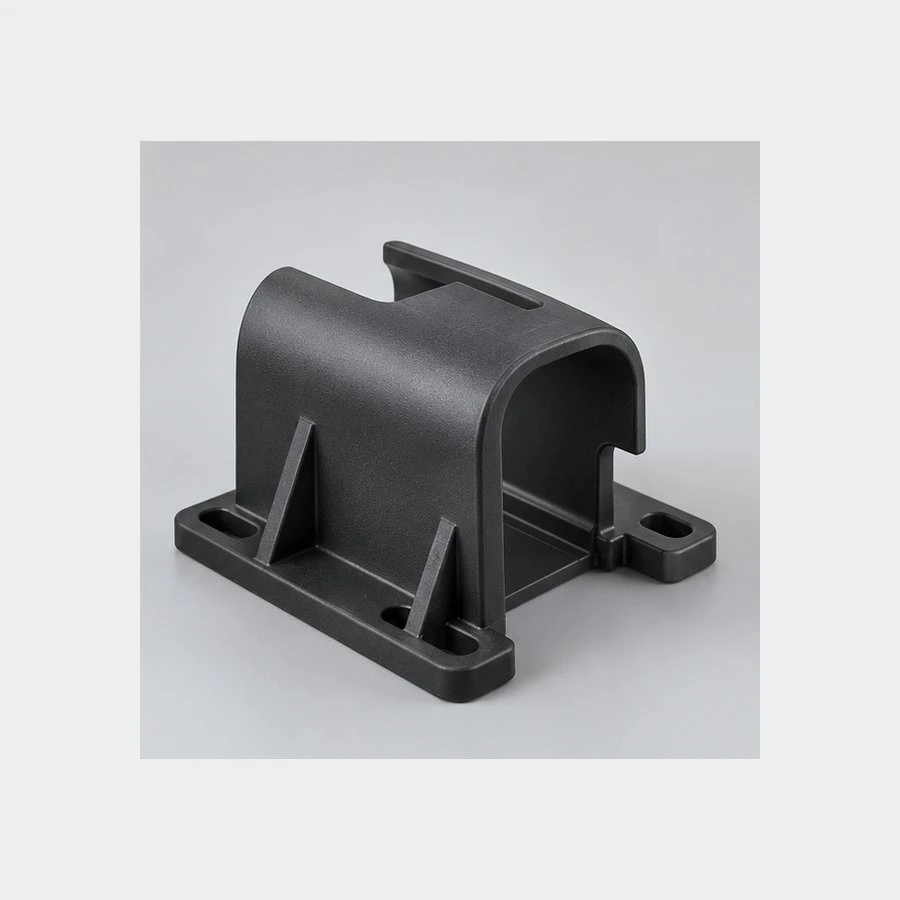

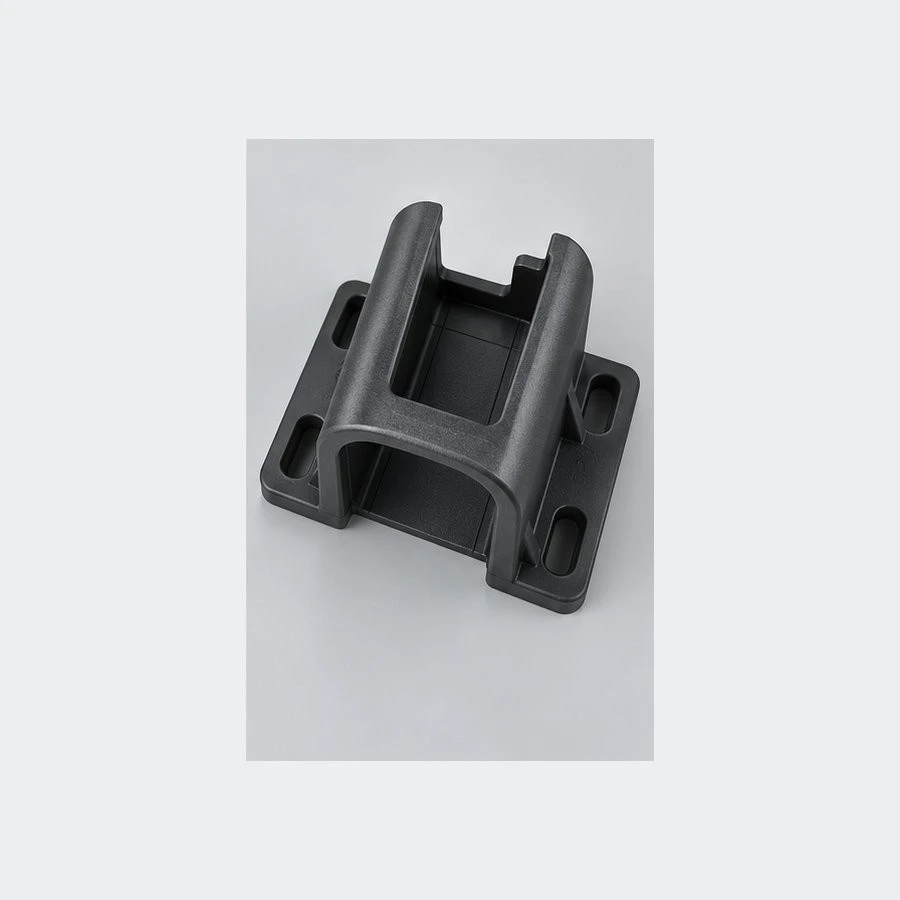

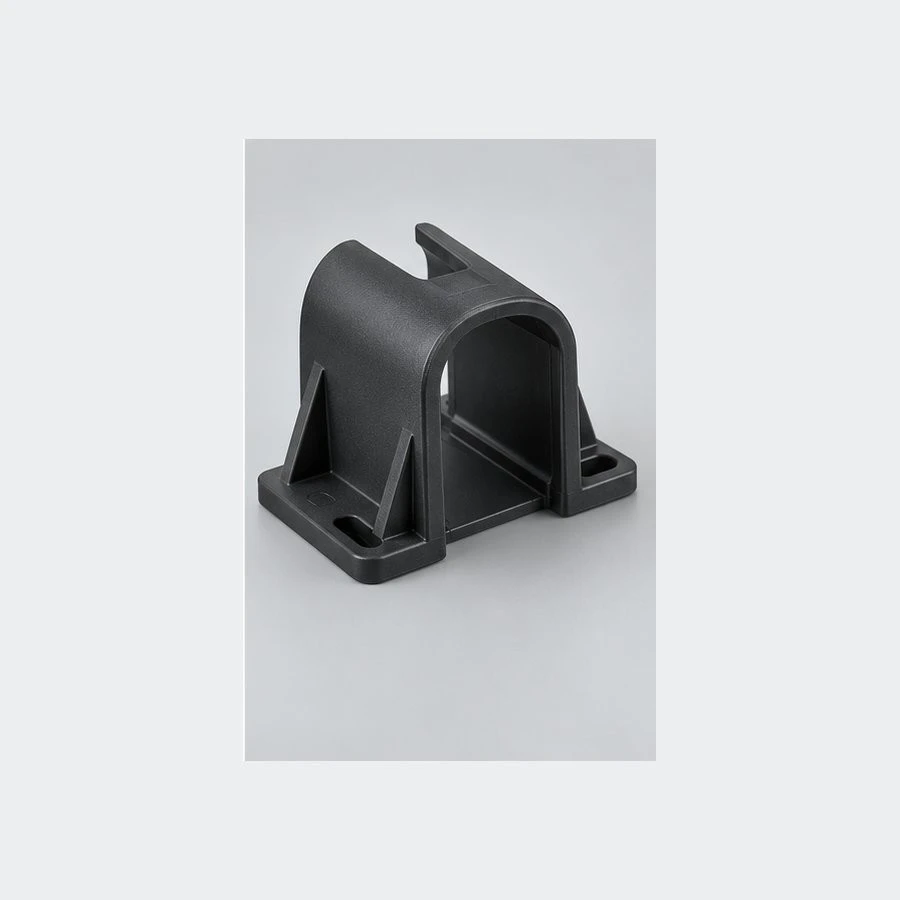

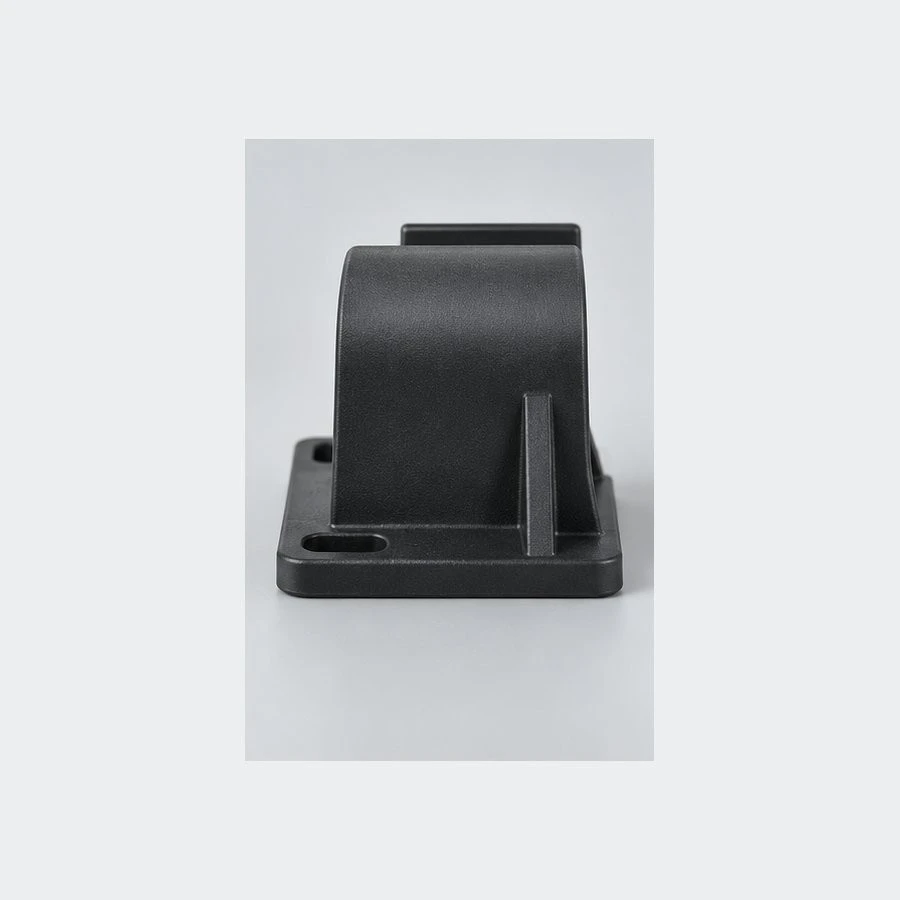

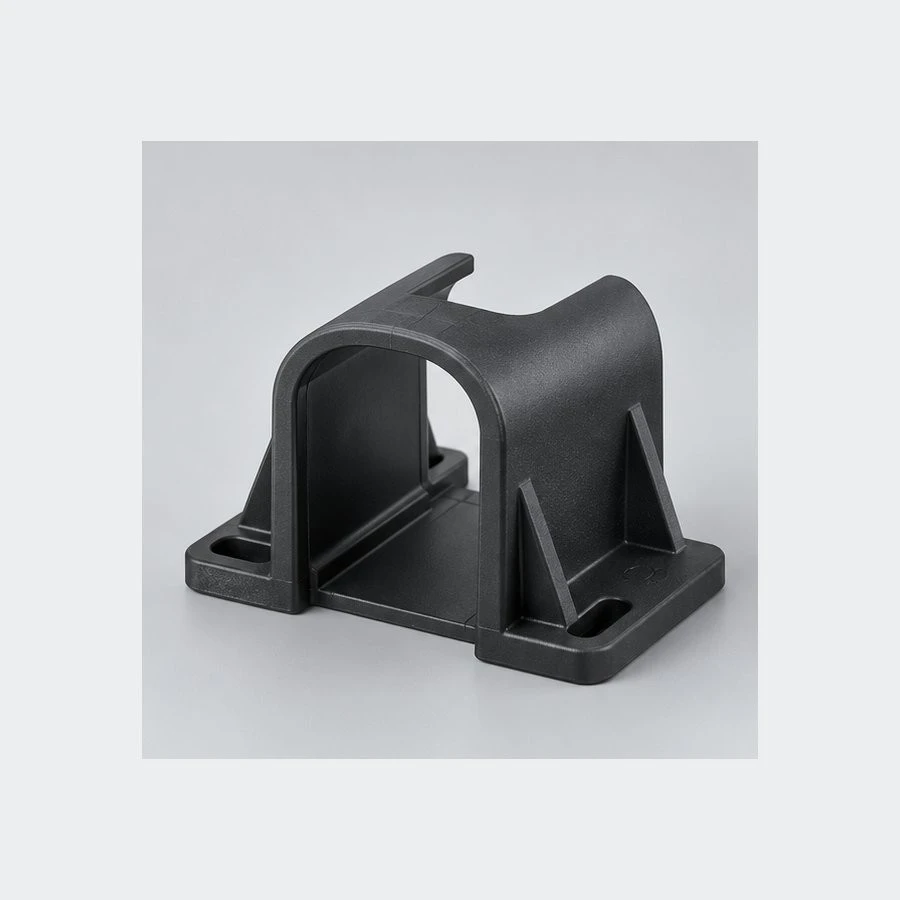

A cylindrical proximity sensor installed near moving tooling, conveyors or material transfer points may need a physical barrier against incidental side contact. This custom injection molded PA66 guard concept uses an open-ended arch over the sensor envelope and a base with elongated mounting slots. It is designed as a surrounding protective component rather than a generic sensor holding bracket; the sensor retains its separate mounting hardware.
The illustrated profile is a non-production design reference, not an off-the-shelf dimensional standard. Front clearance, sensor sensing face, cable exit, height and mounting-hole spacing must be defined by the customer. The protective cover must not obstruct the sensor's detection field or create unsafe interference with moving equipment.
Product Information
- Main material - PA66 / Nylon 66, grade to be selected to fit application
- Process - Custom thermoplastic injection molding
- Nominal geometry - Open-ended arch cover with base slots, ribs and generous corner radii

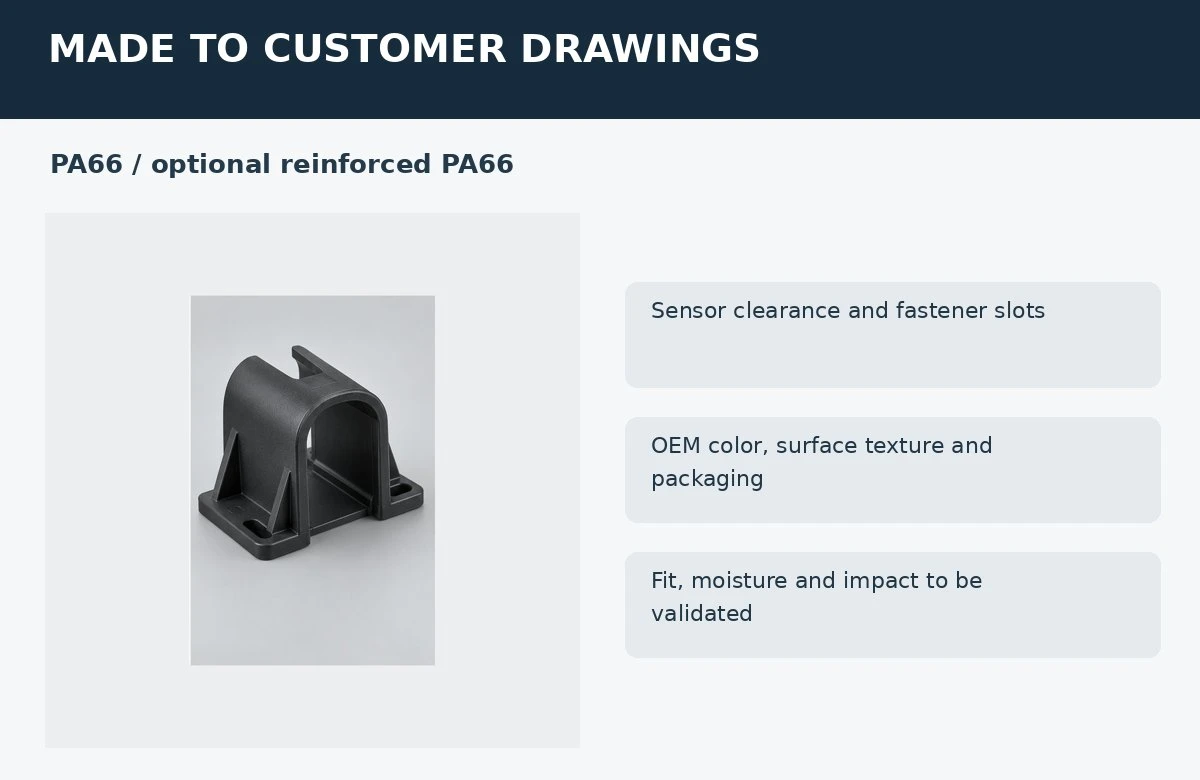

- Dimensions - Custom by customer STEP/STP/IGS or 2D drawing
- Color - Black shown; other molded colors subject to resin availability
- Sensor compatibility - Application-specific; no M12/M18/M30 fit claimed without a drawing
- Drawing formats - STP / STEP / IGS / PDF
- Secondary features - Optional clearance notches, mounting slots and localized reinforcement
- Certifications / performance - None claimed without grade documentation and application testing
Why PA66 for a Sensor Guard?
PA66 is an engineering thermoplastic often chosen for mechanically functional molded parts because it provides a useful balance of toughness, stiffness and wear resistance. Its exact performance depends on resin grade, moisture content, geometry and working temperature. PA66 absorbs moisture, which can influence dimensions and mechanical properties; protective clearances and tolerance requirements must be checked in the intended operating environment. If extra rigidity is required, a suitable glass-fiber-reinforced PA66 grade may be considered, but fiber orientation, appearance and warpage must be evaluated during DFM.

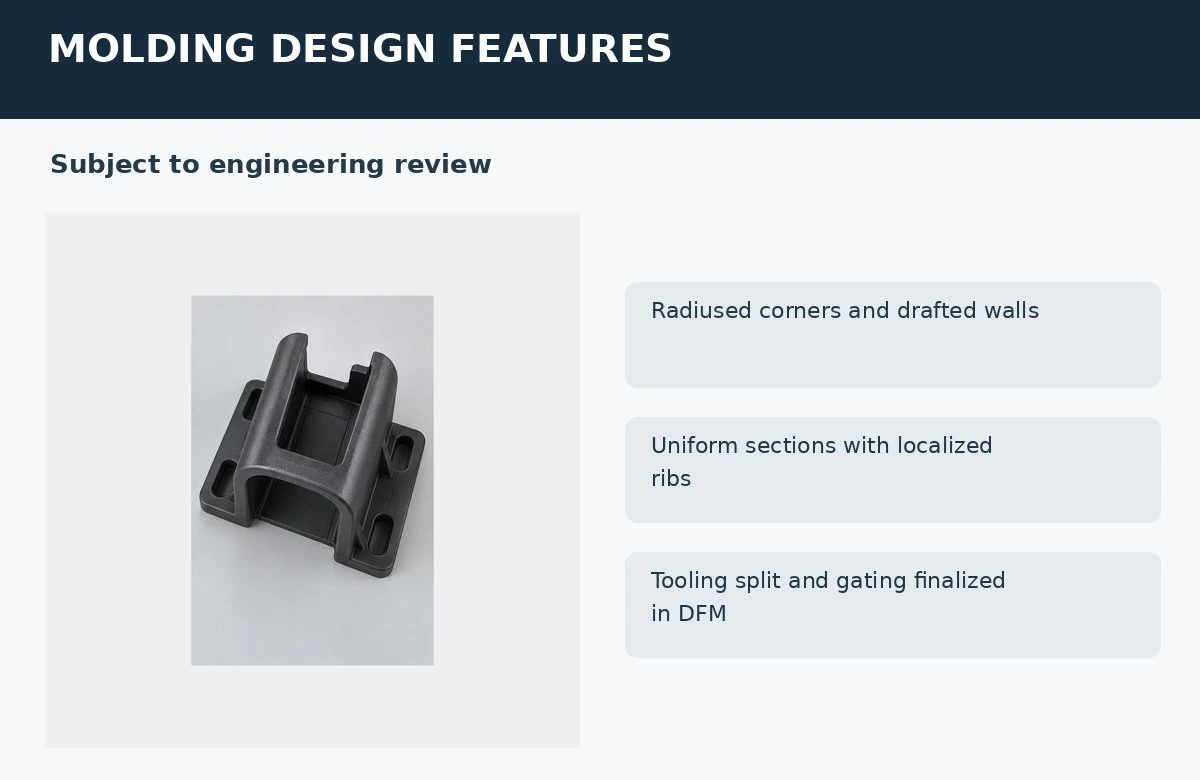

Injection Molding and DFM Considerations
- Review the guard envelope against sensor installation, sensing range, wiring and adjacent machine motion.
- Use reasonably uniform nominal wall thickness; connect reinforcement ribs to primary walls without excessive thick sections.
- Provide adequate draft on molded side surfaces and fillets at wall-to-base transitions; actual draft and radii depend on tooling and texture.
- Assess elongated fastener slots, tool opening direction, parting line, gate location and ejector positions before steel cutting.
- Confirm PA66 drying, molding settings, shrinkage allowance and conditioning expectations with the resin supplier and toolmaker.
- Make first-article samples and verify fit, interference, dimensional change and required protection under the real application before production approval.
Typical Industrial Applications
Potential uses include packaging conveyors, automated handling lines, assembly machines, transfer stations, and factory sensors positioned close to fixtures or incidental equipment contact. This component is not a machine-safety-certified guard and should not replace a risk-assessed safety barrier.
OEM Customization Options
Customizable features include protective arch height and width, sensor-to-guard clearance, open-end geometry, slot location and spacing, base footprint, rib layout, cable exit notch, resin grade, molded-in color, surface texture and packing method. Final design and quotation depend on 3D data and order volumes.
FAQ
Does this part hold the proximity sensor?
No. The illustrated component surrounds the sensor to help shield it from incidental contact. The sensor is mounted separately to the machine.
Does the guard fit an M12, M18 or M30 sensor?
No universal fit is implied. Provide the sensor model, body envelope, sensing clearance and mounting arrangement for a dedicated design.
Can you make the guard from PA66-GF?
A reinforced PA66 grade can be evaluated if the load and dimensional requirements justify it. The grade and fiber-related molding effects require review.
Can the slots be customized?
Yes. Slot width, length and pitch can be engineered to the installation drawing, subject to tool feasibility and strength requirements.
Is the guard impact rated or safety certified?
No impact rating or safety certification is claimed for this concept. The end-use validation plan must be agreed upon for the real machinery.
What is needed for a quotation?
Send CAD/2D drawings, sensor model, assembly space, expected quantities, resin/finish needs, temperature/chemicals, and critical fit dimensions.
Request an OEM Quotation
Email your STEP/STP/IGS drawing, installation reference and estimated order quantity to amanda@tjswks.com. We can discuss design-for-molding questions and quotation requirements based on your actual project.
