Custom Acetal Clamp Blocks for Toothed Belt Ends

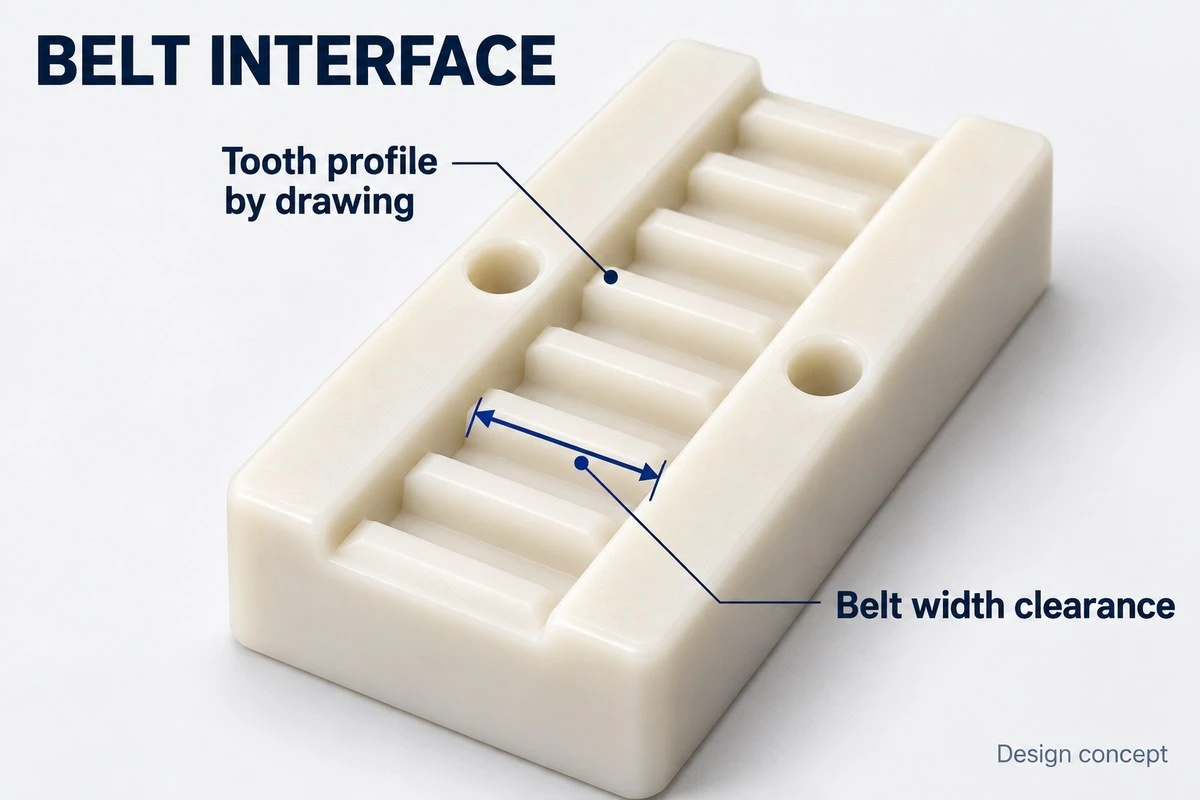

A timing belt clamp block provides a shaped seat for the toothed face of an open-ended belt at a carriage or fixed anchor. The illustrated POM concept has a transverse tooth pattern in a central channel and two mounting shoulders. The complete assembly requires a mating retaining plate or equivalent restraint designed to keep the belt seated. The block alone is not a complete tensioner, pulley or ready-to-install clamp assembly.

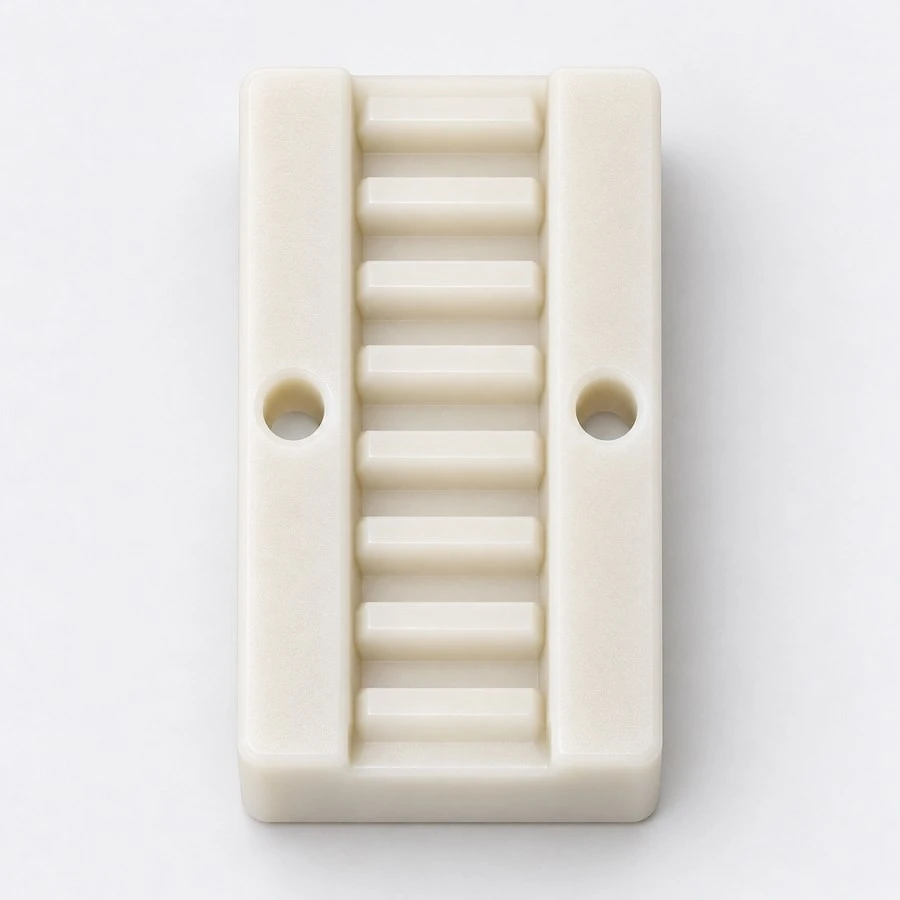

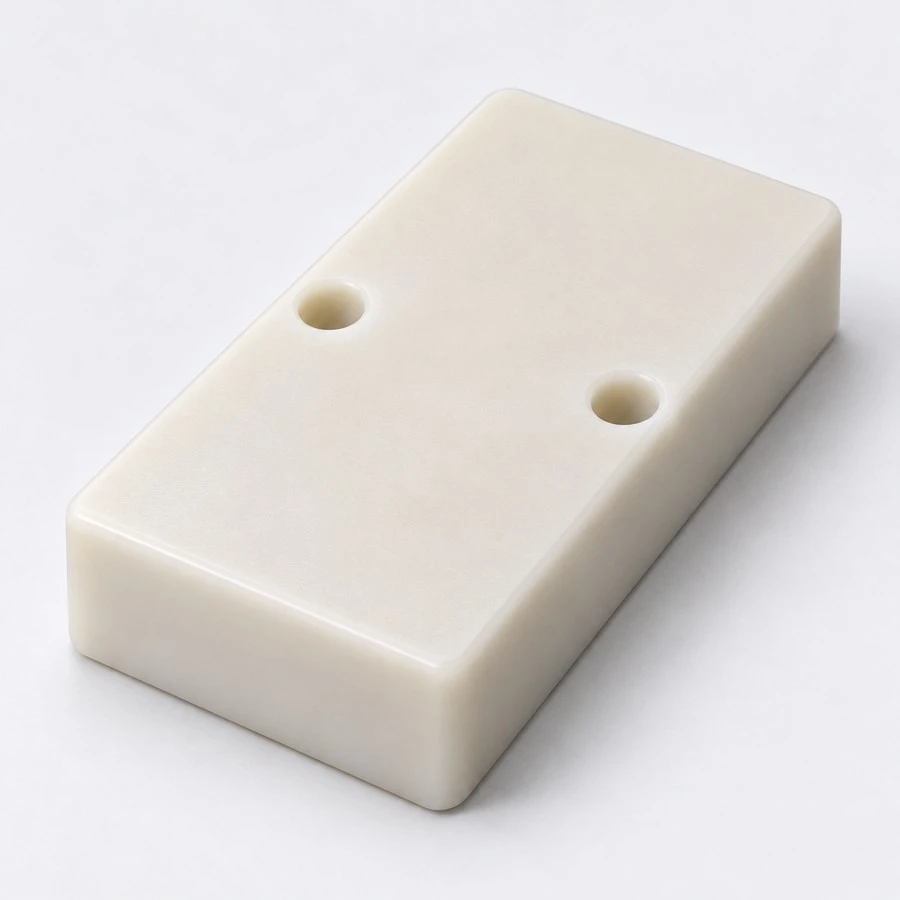

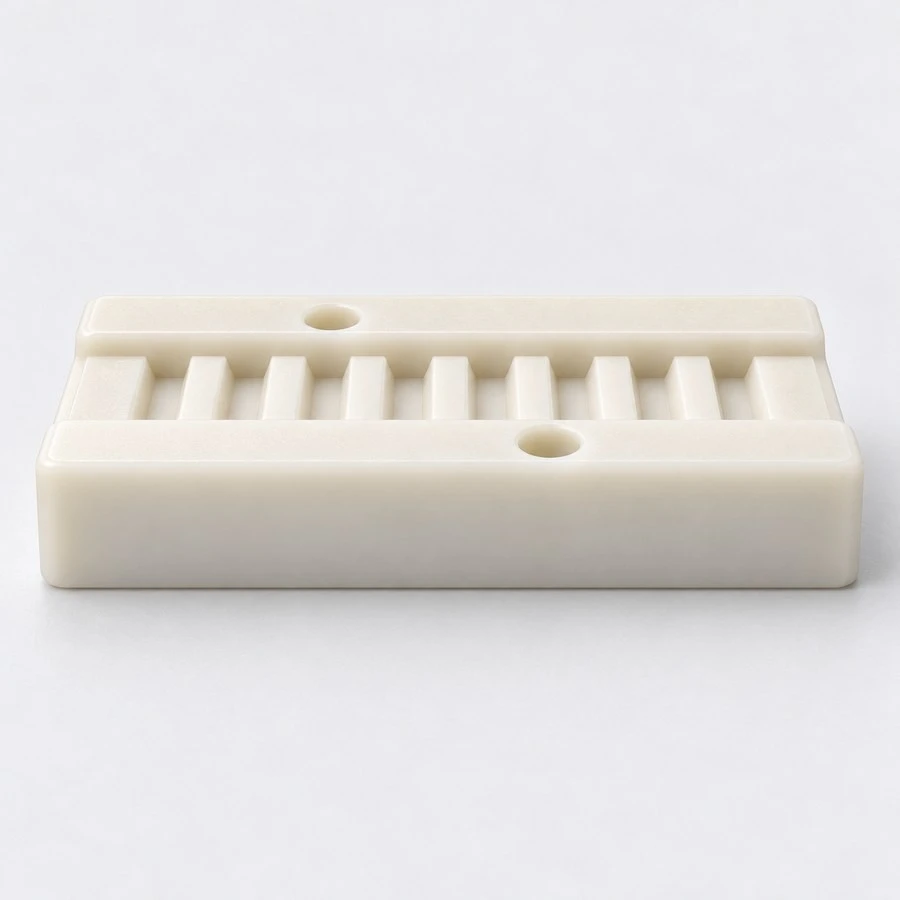

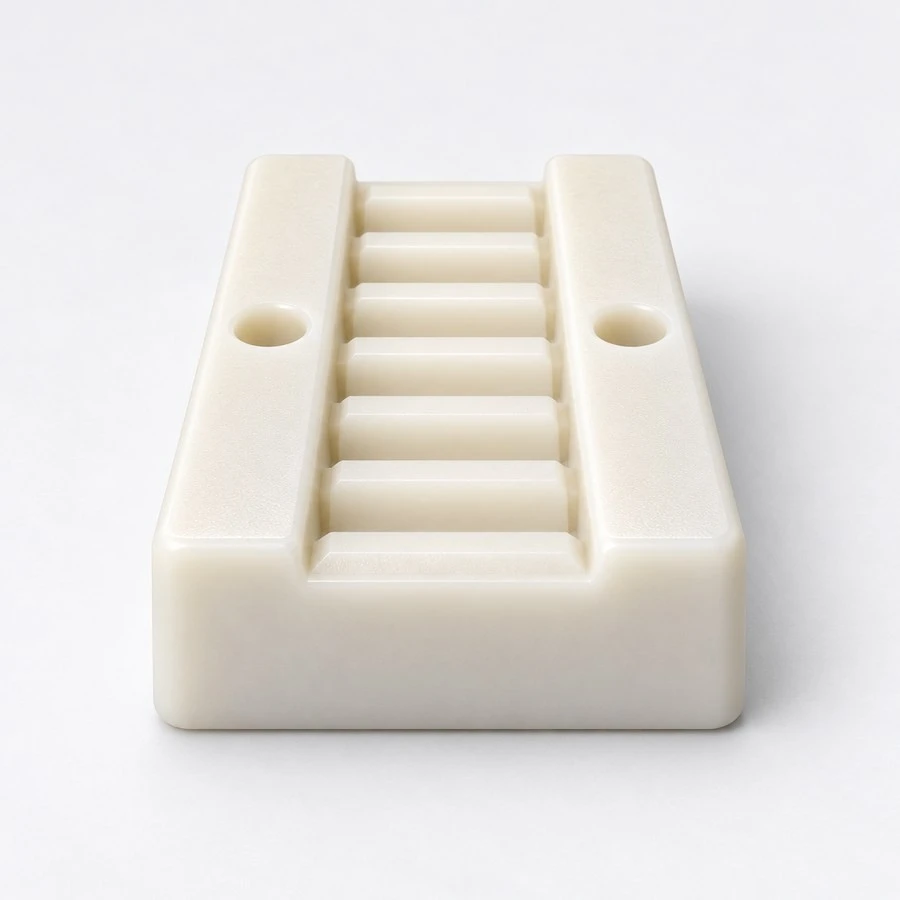

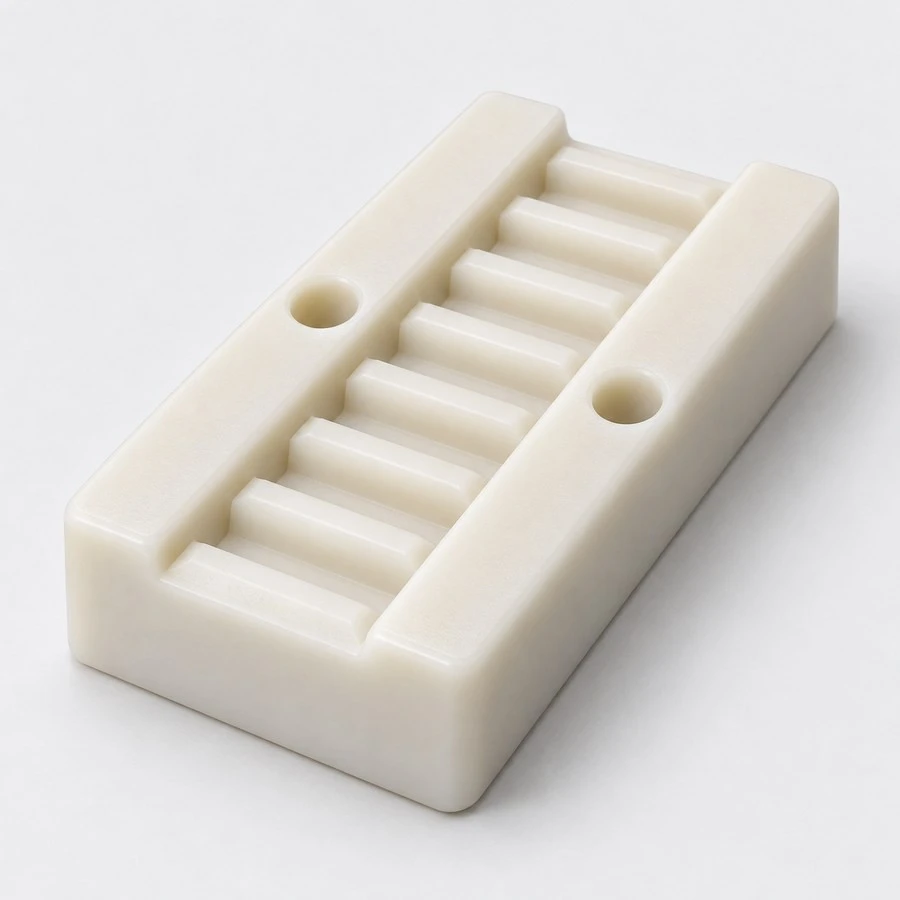

These images are design illustrations, not photographs of a verified production part. The illustrated ridges do not define a standard belt pitch. Final tooth geometry, fastener layout and suitability must follow the selected belt manufacturer's data and the customer's assembly drawing.
Define the Belt Interface Before Tooling
Matching nominal pitch alone is insufficient. Tooth shape, tooth height, belt width, backing thickness and the number of engaged teeth affect the interface. A mismatched pocket may prevent full seating or concentrate contact at the belt teeth. Supply the exact belt series and its profile drawing rather than requesting a generic "universal" clamp.
Product and Quotation Details
| Item | Project specification |
|---|---|
| Material | POM / acetal; copolymer or homopolymer grade to be agreed |
| Processing service | Custom injection molding, subject to drawing and tooling review |
| Belt engagement | Tooth profile, width and engaged length defined by belt data |
| Mounting | Through holes, shoulder geometry and mating plate interface by drawing |
| Dimensions and tolerances | Customer-specific; critical dimensions reviewed before quotation |
| Appearance | Natural color shown; color and mold finish to be specified |
| Drawing formats | STP / STEP / IGS plus dimensioned PDF where available |
| Order quantity | MOQ, tooling cost and unit price quoted after geometry and volume review |
| Secondary operations | Critical-hole finishing or other operations assessed individually |
Material Selection and Clamp Preload
POM can be considered where a rigid molded component with defined contact geometry is required. Resin selection must account for sustained compression, belt tension, operating temperature and cleaning exposure. Do not treat an acetal block as a direct substitute for a metal anchor without reviewing the load path.

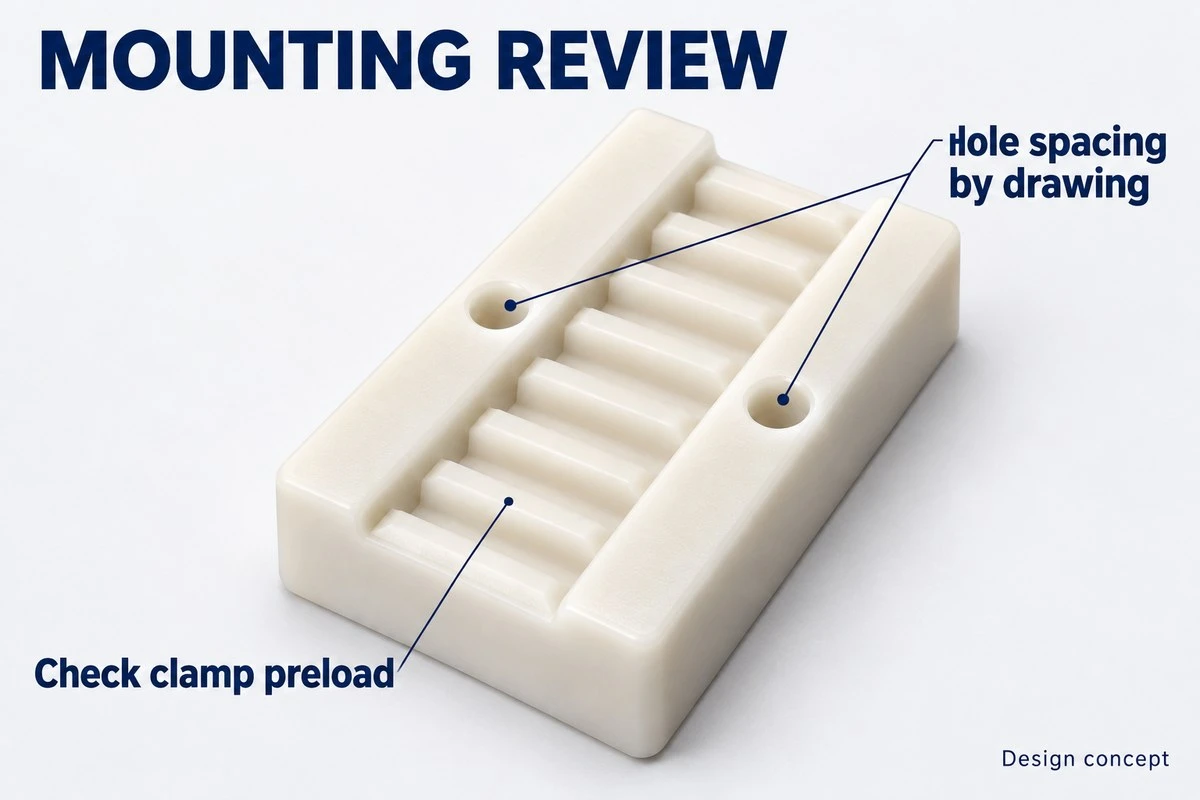

Fastener preload should be carried through a suitable assembly design. Excessive tightening can distort the plastic shoulders or compress the belt; time-dependent deformation can also change the clamping condition. A metal compression limiter, larger bearing area or a different material may be appropriate after engineering review. No installation torque, holding-force rating or service-life claim is assigned to this concept.
Molding Review and Sample Approval
- Identify the belt contact surfaces and keep gate vestige, flash and ejector marks outside critical engagement areas where practical.
- Review tooth detail, draft and tool access together; a release angle must not compromise the required mating profile.
- Evaluate section thickness and shrinkage around the channel and mounting shoulders to control distortion.
- Specify inspection datums for hole location, seating flatness and the toothed interface.
- Agree on trial assembly checks with the actual belt, retaining plate and fasteners. Validate retention under the intended load, temperature and duty cycle before production approval.
Information Needed for a Useful RFQ
Please include the belt supplier and series, tooth-profile drawing, belt width, available installation envelope, mating plate details, fastener size, expected tension and motion cycle. Add annual demand, first-order quantity, target color, critical tolerances and any required material documentation. A belt sample can support review when the interface is difficult to describe, but it does not replace the dimensional requirements.
Common Purchasing Questions
Can the same block fit different belt pitches?
Compatibility must be checked against each belt profile. A similar appearance does not establish interchangeability, and a different belt width may also require a revised channel and mounting footprint.
Are the retaining plate and screws included?
The listing covers the custom plastic block concept. State separately whether the quotation should include mating hardware or assembly support.
Can an existing machined design be converted to injection molding?
Provide the current drawing, quantities and functional surfaces. Tooling feasibility, shrinkage allowance and any necessary changes must be reviewed before the manufacturing route is confirmed.
Browse related custom POM parts or the wider plastic injection parts range for other OEM component requirements.
Request a Drawing-Based Quotation
Contact amanda@tjswks.com with your belt specification, STEP/STP/IGS file and order forecast. We will review the information needed to quote the custom clamp block, tooling and agreed inspection requirements.
