Tianjin SWKS Technology & Development Co.,Ltd is one of the most reliable manufacturers and suppliers of custom abs junction box internal mounting brackets in China. If you're going to buy bulk cheap custom abs junction box internal mounting brackets, welcome to get quotation from our factory. Quality products and low price are available.
Planning the terminal layout inside an industrial junction box? Email the enclosure drawing and terminal-strip mounting dimensions to amanda@tjswks.com for a custom ABS internal bracket quotation.
A Raised Support Inside the Enclosure

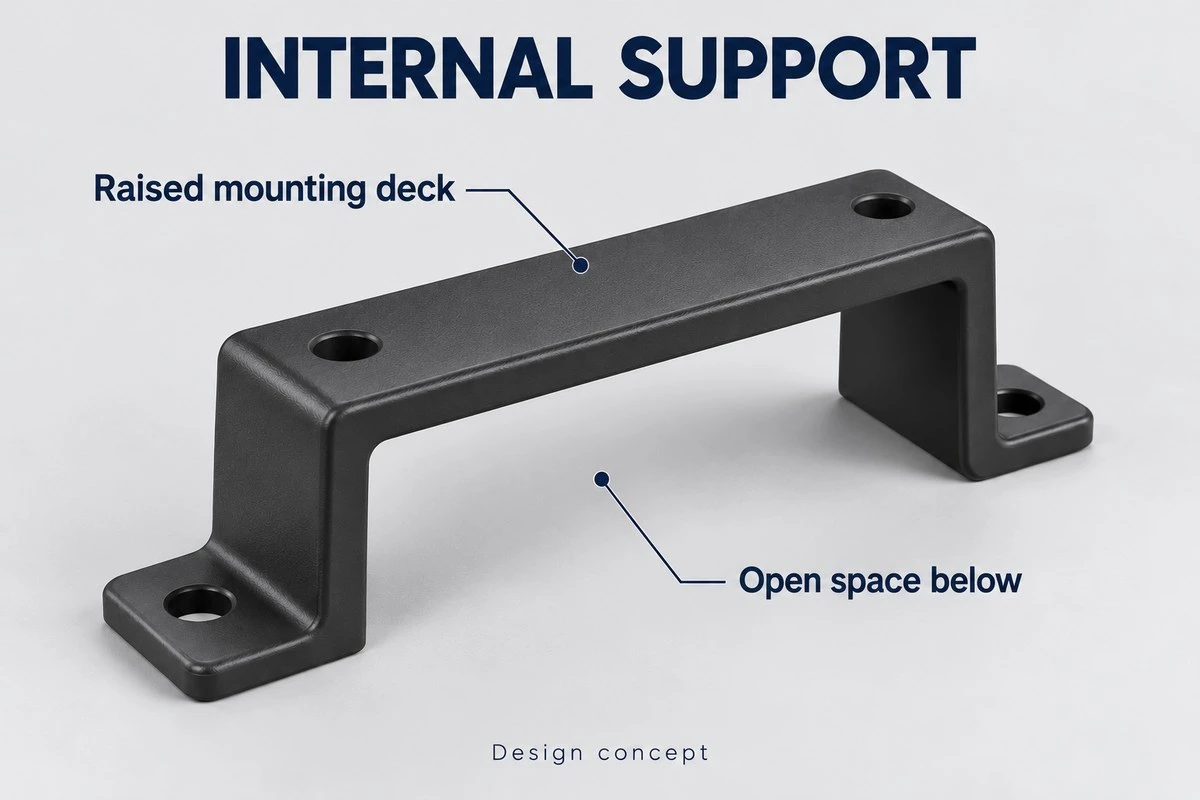

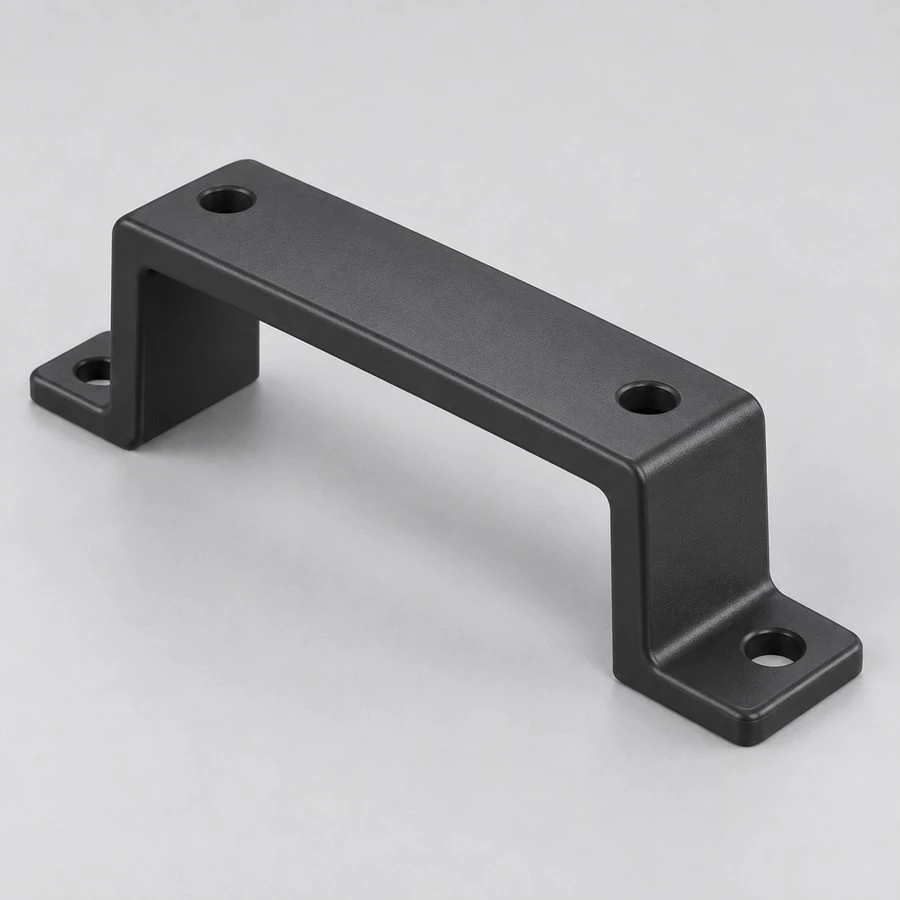

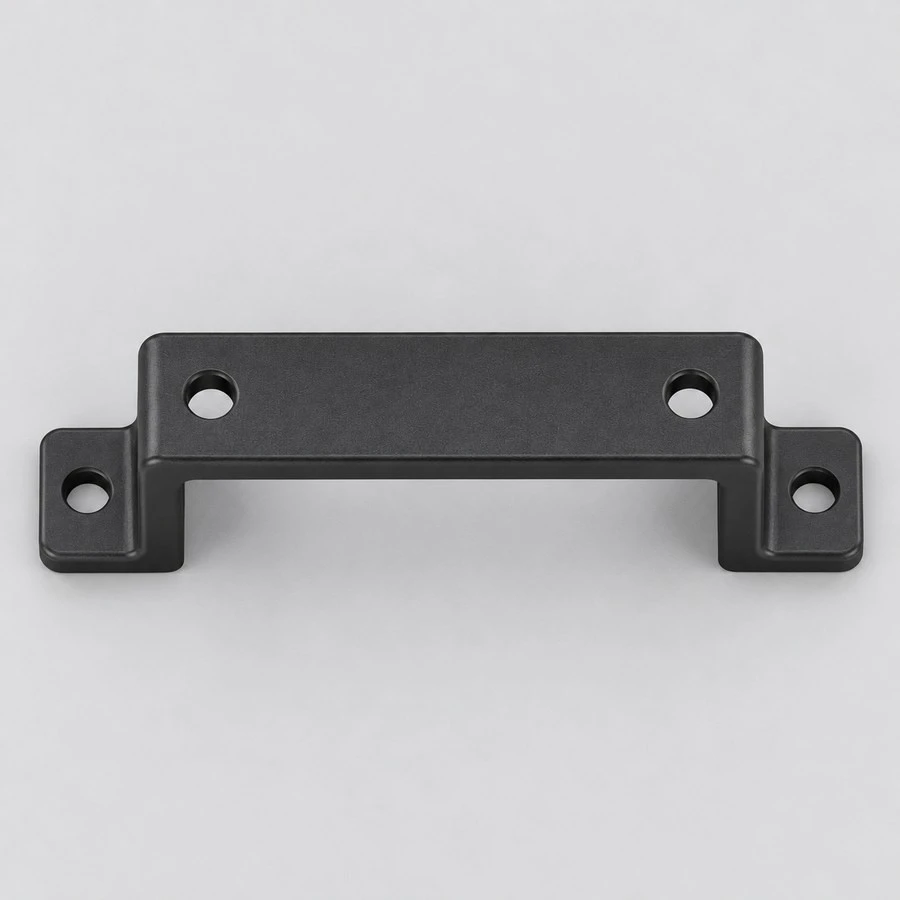

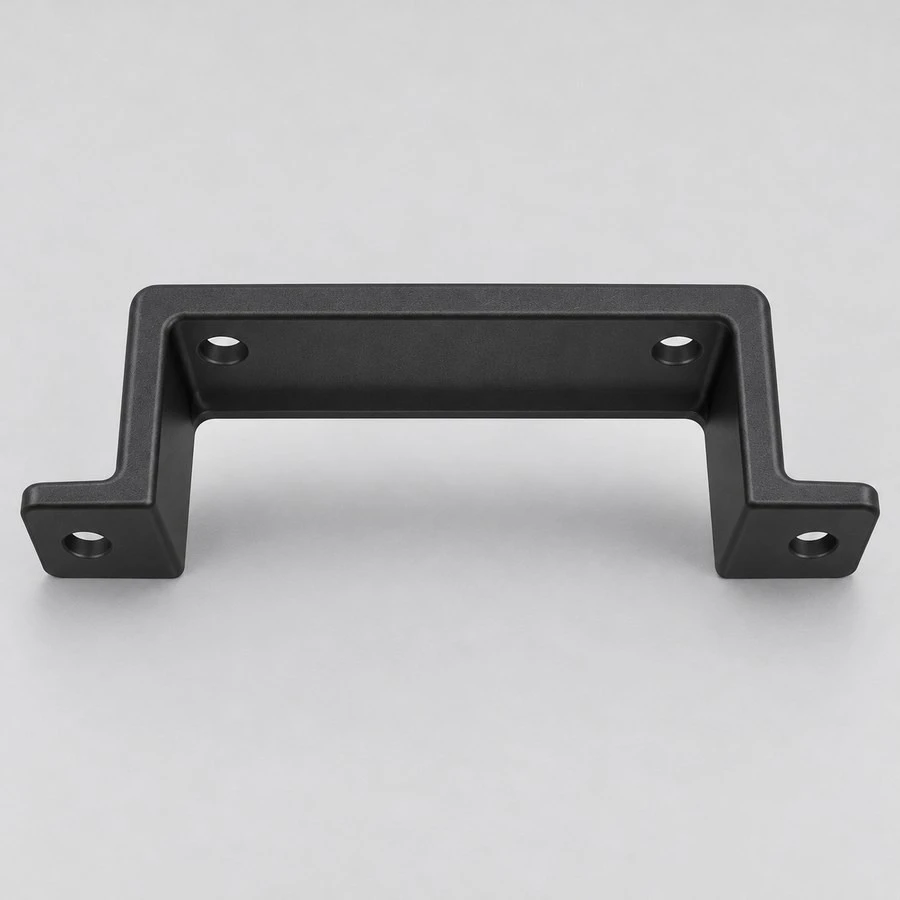

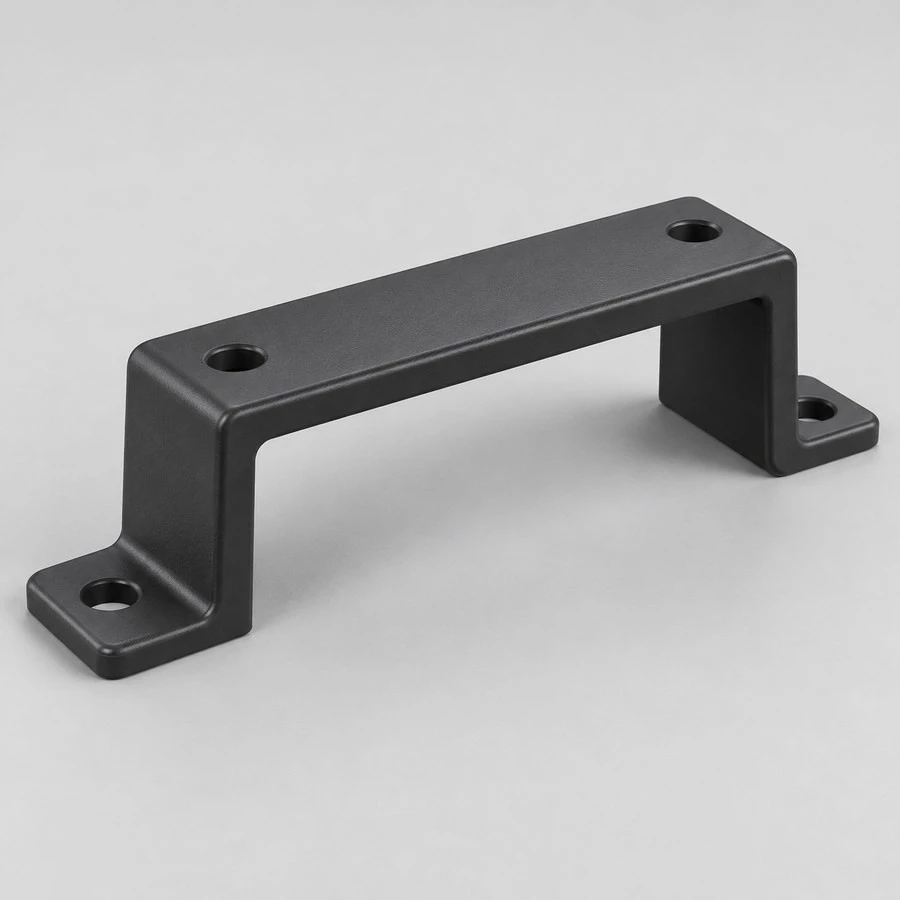

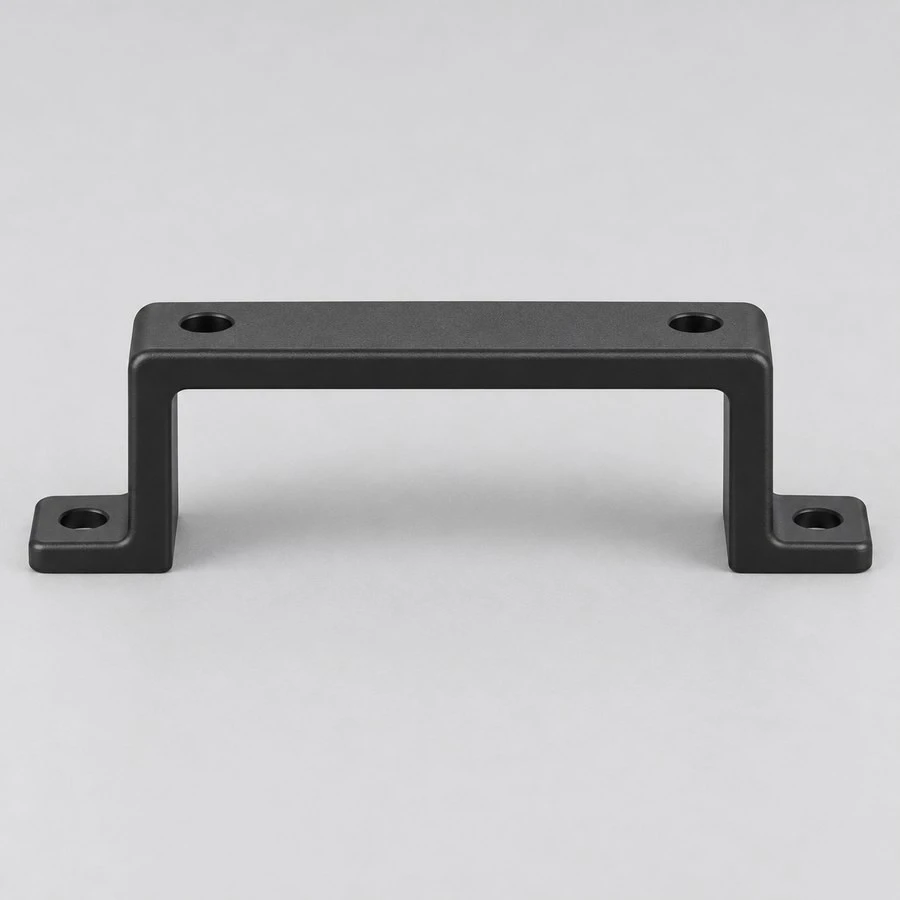

This injection molded bracket concept positions a screw-mounted terminal strip above the enclosure base. Its bridge-shaped body has a flat upper deck, an open space beneath it and two outward mounting feet. The deck holes locate the terminal assembly; the foot holes attach the support to the customer's enclosure bosses or mounting plate. Both interfaces are designed around the actual assembly.
The part is an internal mechanical support, not the junction-box shell, a DIN rail or the terminal block itself. It may be considered for layouts where an elevated fixing surface is needed without adding a full internal mounting panel. The illustrations show a proposed geometry rather than a stock item or verified production sample.
Start With the Complete Height Stack
A bracket can match the hole pattern and still interfere with the lid. Review the enclosure base or boss height, bracket deck height, terminal body, screw heads and connected wire envelope as one stack. Include the tool space needed to tighten terminal screws after installation. The space below the deck is a design feature whose permitted use must be established in the assembly layout.
Clearance around cable entries and the service loop also matters. A wire should not be forced against a molded edge merely because the terminal strip fits between the sidewalls. Provide the cable-entry locations and intended wire routing so the support footprint can be adjusted before the mold design is agreed.
Custom Product Specification
| Design item | To be defined for your assembly |
|---|---|
| Resin | ABS; exact grade and documentation requirements agreed before tooling |
| Manufacturing process | Custom thermoplastic injection molding |
| Upper interface | Terminal-strip fixing centers, hole diameter and seating area |
| Lower interface | Enclosure boss or mounting-plate pattern and foot dimensions |
| Raised deck | Height, span and width based on internal packaging space |
| Finish and color | Black textured appearance illustrated; final color and texture by agreement |
| Tolerances | Critical hole locations and contact surfaces specified on the drawing |
| CAD input | STP / STEP / IGS with dimensioned assembly or part PDF |
| Purchase basis | Tooling, MOQ, sample schedule and unit price depend on geometry and order volume |

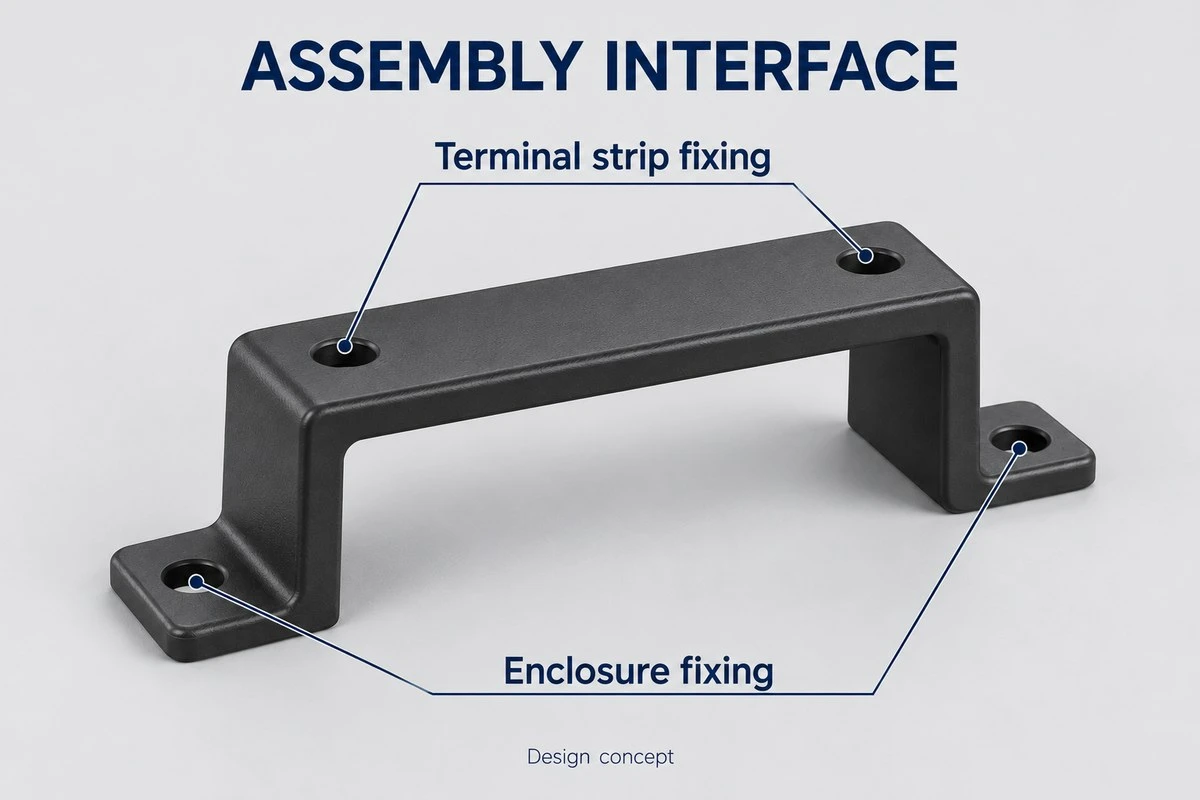

Two Hole Patterns, Two Assembly Tasks
The terminal-strip fixing pattern and enclosure fixing pattern do not have to be the same. Keeping these functions separate allows the support to bridge between the enclosure's existing mounting points and a different terminal arrangement. Hole position, fastener access and the available bearing area should be reviewed at both levels.
Specify the actual screw type, mating thread and assembly direction. Through holes do not imply that the bracket includes metal threads or supplied hardware. If captive nuts, inserts or an alternative fixing arrangement are needed, identify them in the RFQ for a separate feasibility review.
Checks Before Releasing the Mold
- Use the enclosure datum to locate both feet and verify that the support sits without rocking.
- Review the deck span and wall transitions against terminal mass and the forces applied during assembly and wiring.
- Check mold opening direction, draft and hole-core access for the selected bridge geometry.
- Keep gate vestige and ejector features away from required seating surfaces where practical.
- Trial the bracket with the actual terminal strip, screws and enclosure, then check lid closure and maintenance access.
Specify Electrical Material Requirements Explicitly
"ABS" alone does not establish flame classification, temperature suitability or electrical insulation approval. If the equipment requires a particular resin grade, flammability classification or supporting documentation, provide that requirement at the enquiry stage. This concept carries no claimed voltage rating, fire rating or electrical certification. Required creepage, clearance and equipment approval remain matters for the complete assembly design.
Send an Assembly-Focused Enquiry
Useful inputs include the enclosure model or CAD, terminal-strip outline, both mounting patterns, required deck elevation, fastener details and wire-entry positions. Please also state the installation environment, first batch quantity, annual forecast, color and inspection points. These details allow the quotation to address the actual support rather than a generic plastic bracket.
Explore other custom ABS parts and plastic injection parts for related enclosure component projects.
For this internal junction-box support, contact amanda@tjswks.com with your drawings and quantity requirements. Tooling scope and sample acceptance criteria can then be discussed for the proposed design.
