Guide a local return stream into the receiving area

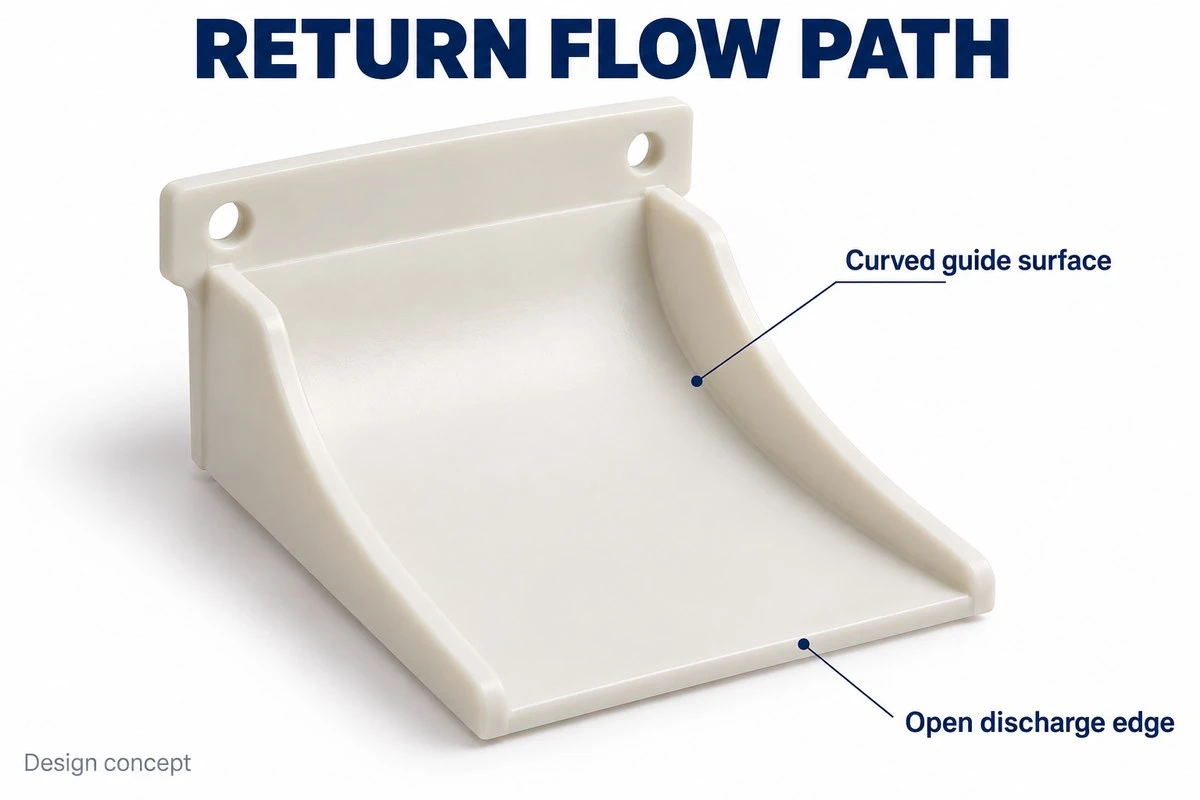

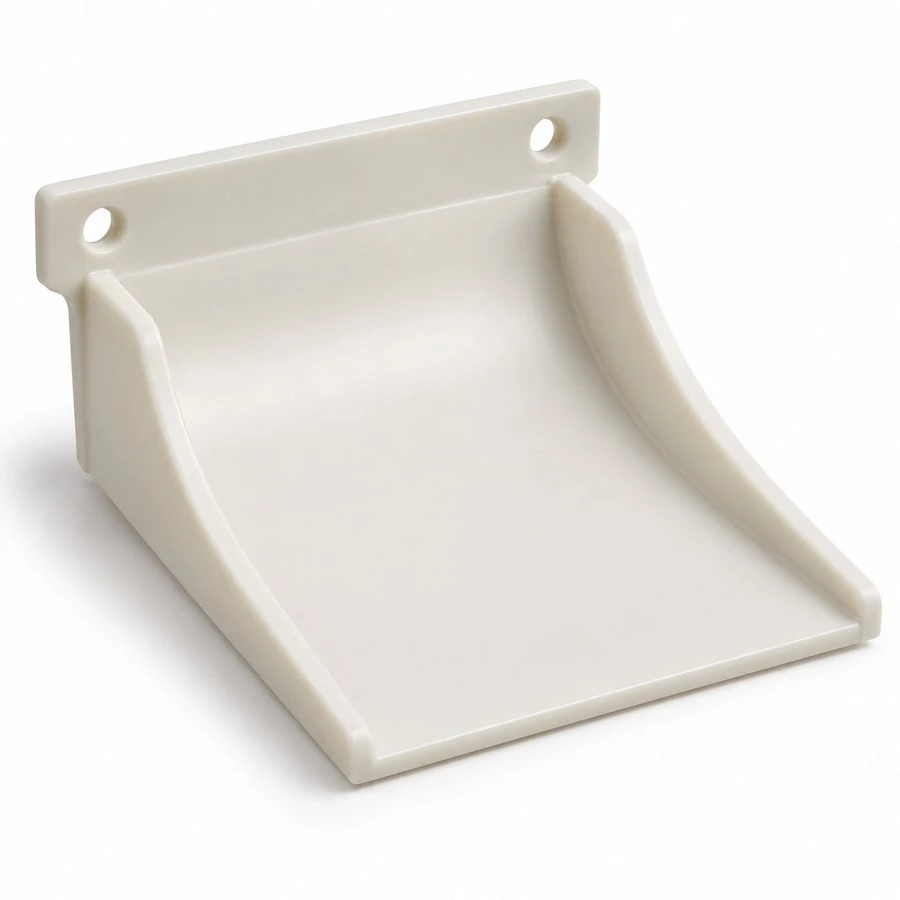

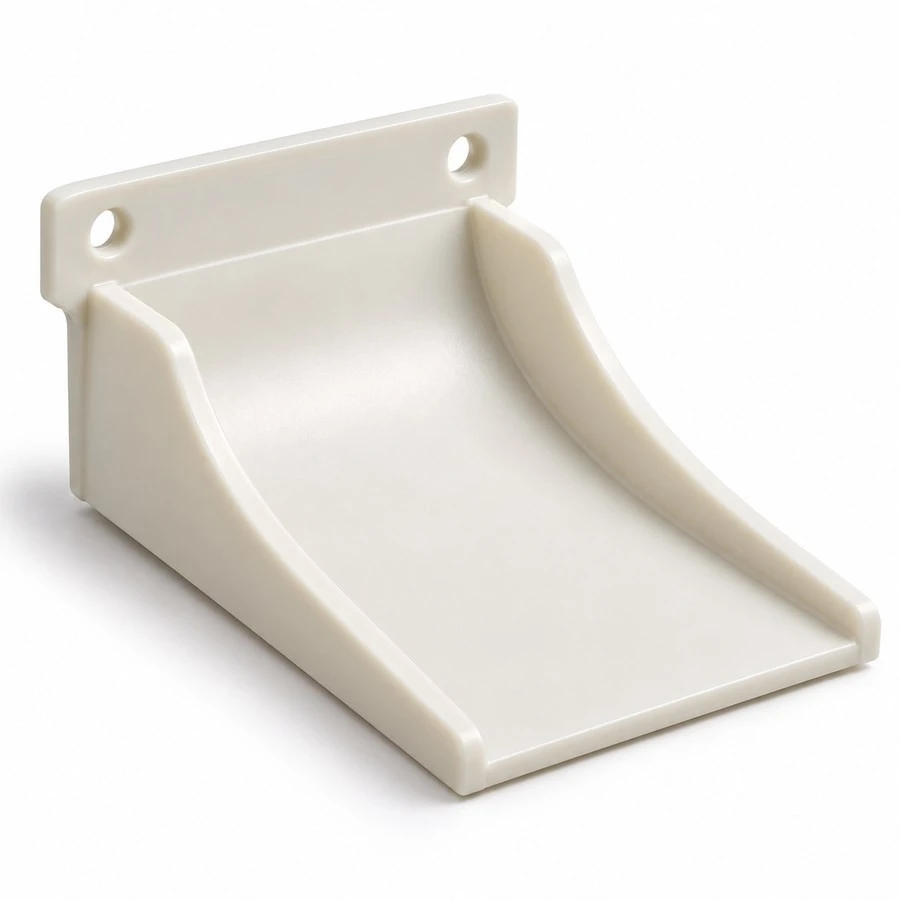

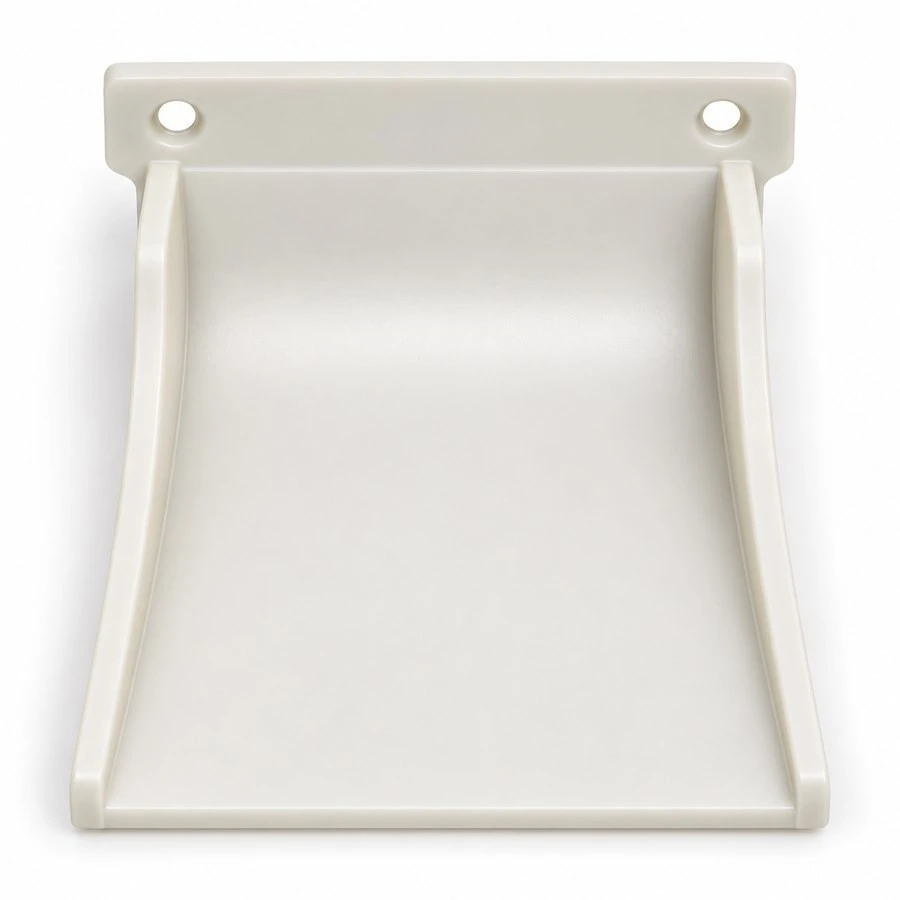

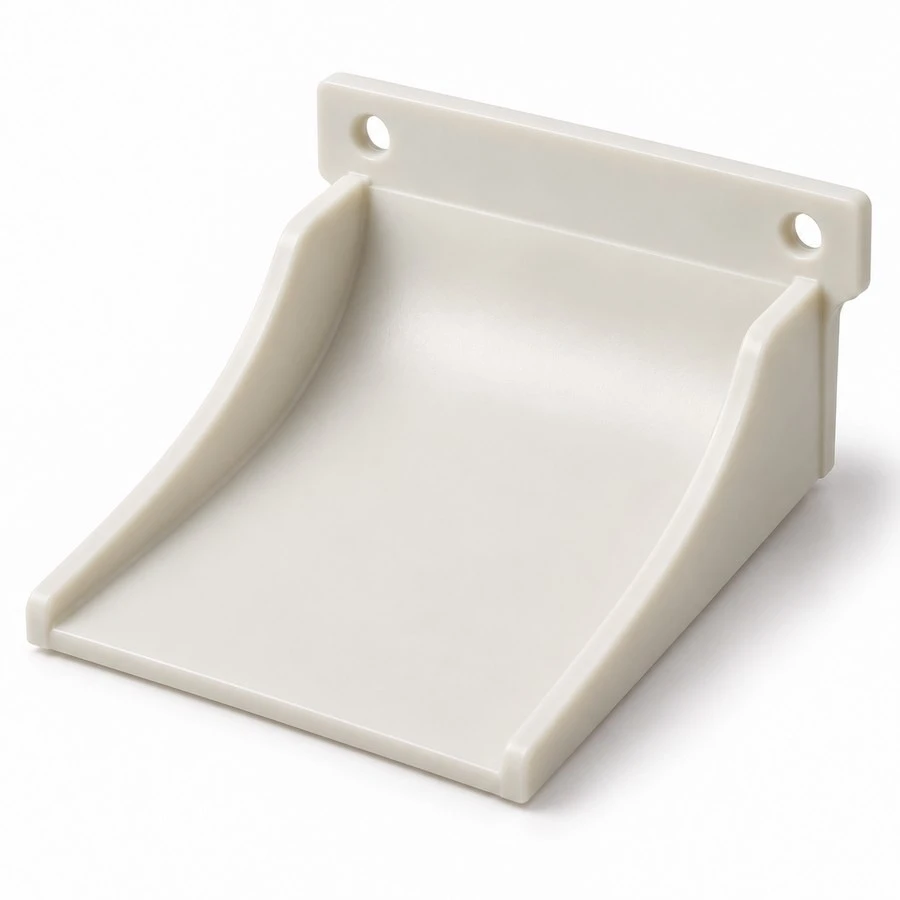

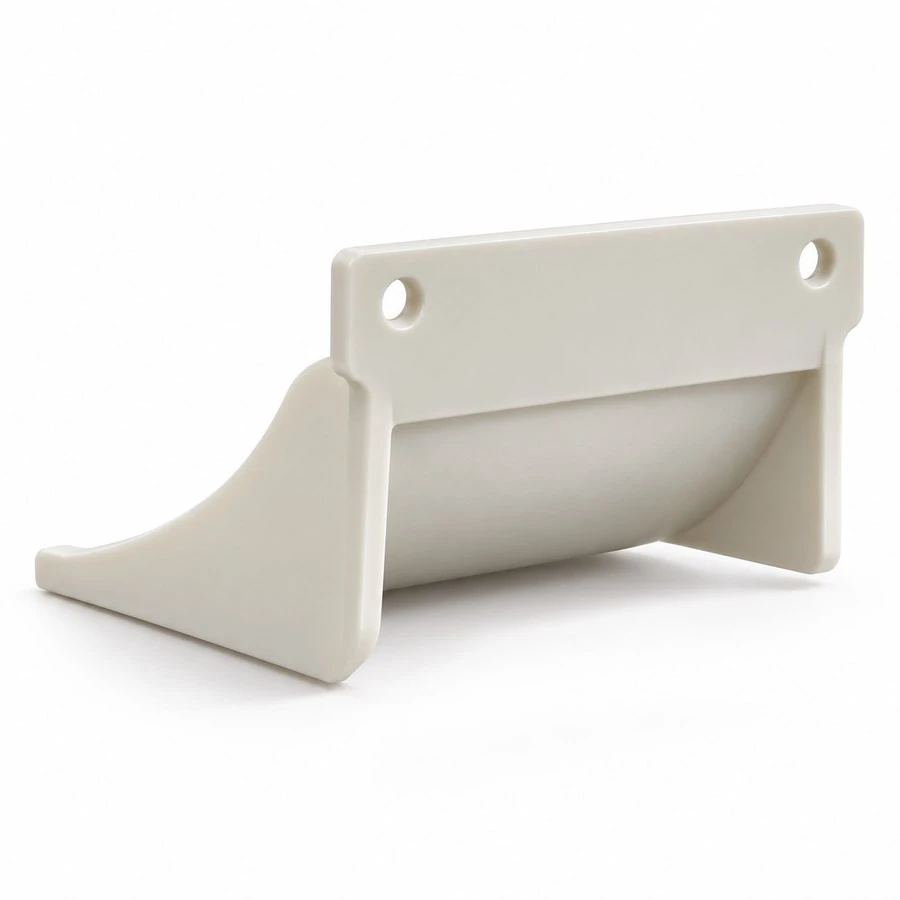

This polypropylene insert is a drawing-defined open guide positioned below a return outlet. The concept has a curved receiving surface, two side cheeks, an open discharge edge and a rear mounting plate with two fixing holes. Its purpose is to provide a specified path between an existing outlet and the intended receiving location inside equipment.
The part is distinct from a tank baffle used across a larger liquid volume. It is a local insert associated with one return point. It is also not a pipe fitting, valve or pressure-containing connection. The outlet remains a separate component, and the equipment designer must establish the complete collection and containment arrangement around the open guide.
Match the receiving surface to the outlet position
Begin with the outlet centerline, outlet direction and the distance to the proposed guide surface. Include the minimum and maximum liquid levels in the receiving area. These relationships determine where the incoming stream meets the insert and whether the discharge edge is above or below the surrounding liquid during operation.
Please describe whether return flow is continuous, intermittent or associated with a drain-down cycle. Provide the intended flow range and any information about solids or deposits in the liquid. A shape chosen only from the pipe diameter may miss the actual receiving footprint. No flow capacity, splash-reduction percentage or hydraulic performance is assigned to the illustrated geometry.
Custom component specification
| Item | Definition for quotation |
|---|---|
| Material | PP / Polypropylene; exact grade subject to application review |
| Processing service | Injection molding |
| Configuration | Open curved guide with two side cheeks and rear fixing plate |
| Installation | Beneath a separate return outlet, as shown in the assembly drawing |
| Custom features | Receiving width, curvature, edge position and fixing-hole pattern |
| Drawing | STP / STEP / IGS plus dimensioned equipment section |
| Scope | Plastic insert only; outlet, vessel, fasteners and seals excluded |
| Contact | amanda@tjswks.com / 0086-15222707659 |
Specify the discharge destination and removal path
The front edge should discharge into a defined collection zone. Show nearby level sensors, suction openings, strainers and other components that should remain clear. The two side cheeks are geometric boundaries of the concept, not a guarantee that liquid cannot escape over them. Overflow and abnormal operating conditions belong in the overall equipment assessment.

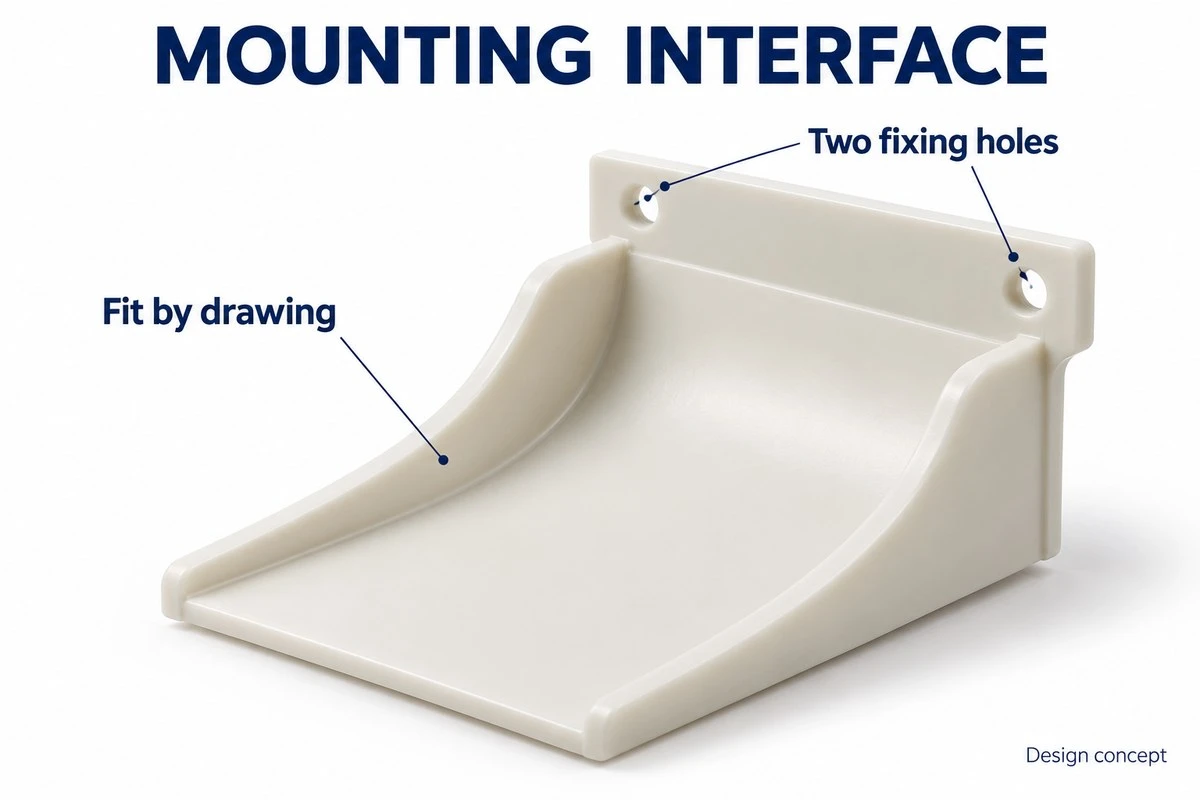

Include the installed orientation and the space behind the mounting plate. The fixing holes require a matching support surface and accessible hardware. Specify whether the insert is removed upward, forward or with a separate support bracket. A replaceable part must pass through the available service opening without disturbing equipment that is intended to remain installed.
Review the liquid and cleaning sequence before resin selection
For chemical-processing equipment, identify the actual liquid composition, concentration, operating temperature and exposure duration. Also describe cleaning agents, rinse steps and shutdown conditions. Selecting PP by material family alone does not confirm compatibility with every process fluid. Any material suitability decision should use the agreed resin information and application-specific evaluation.
Mark surfaces where residue buildup matters and explain how both sides will be reached during cleaning. The open front must be reviewed in the installed orientation for drainage; an open edge alone does not prove that the whole assembly drains completely. This listing makes no food-contact, hygienic-design, antistatic or chemical-resistance certification claim.
Before tooling, the curved wall section, side-cheek transitions, draft and gate location can be reviewed against the approved CAD model. Identify any surface-finish limits on the receiving face and any dimensions critical to outlet alignment. Separate these functional requirements from noncritical exterior features so that inspection priorities are clear.
For a quotation, send the insert model, equipment section, fluid conditions, quantity and preferred color. Sample evaluation should check installation, removal, drainage and the actual return-flow behavior under customer-defined conditions. These images are concept illustrations, not records of performance testing or previous production. Explore other custom PP parts and plastic injection parts, or email your return-guide requirements to amanda@tjswks.com.
