From the Meter Outlet to the Next Transfer Point

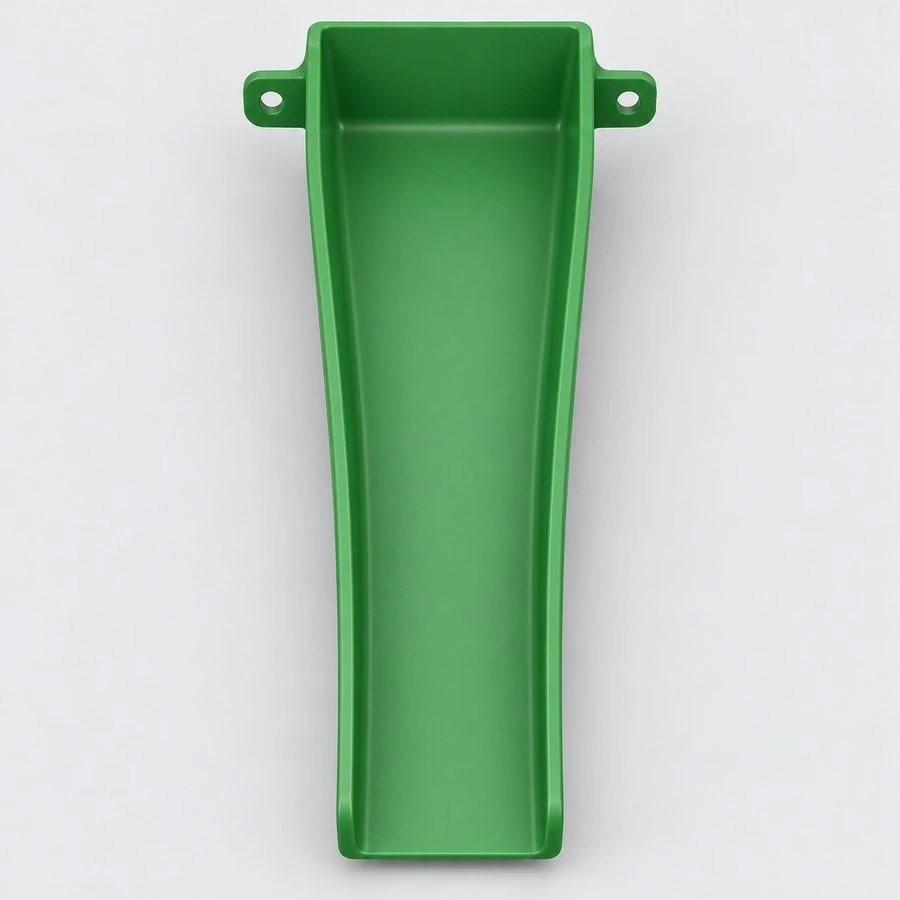

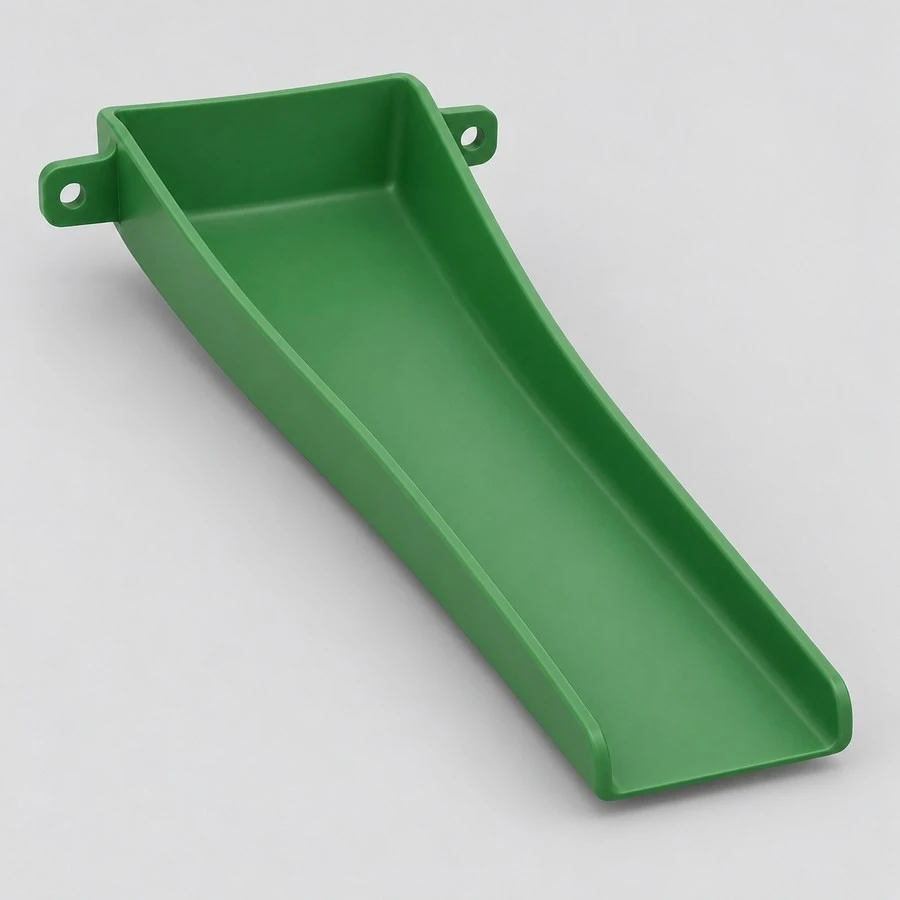

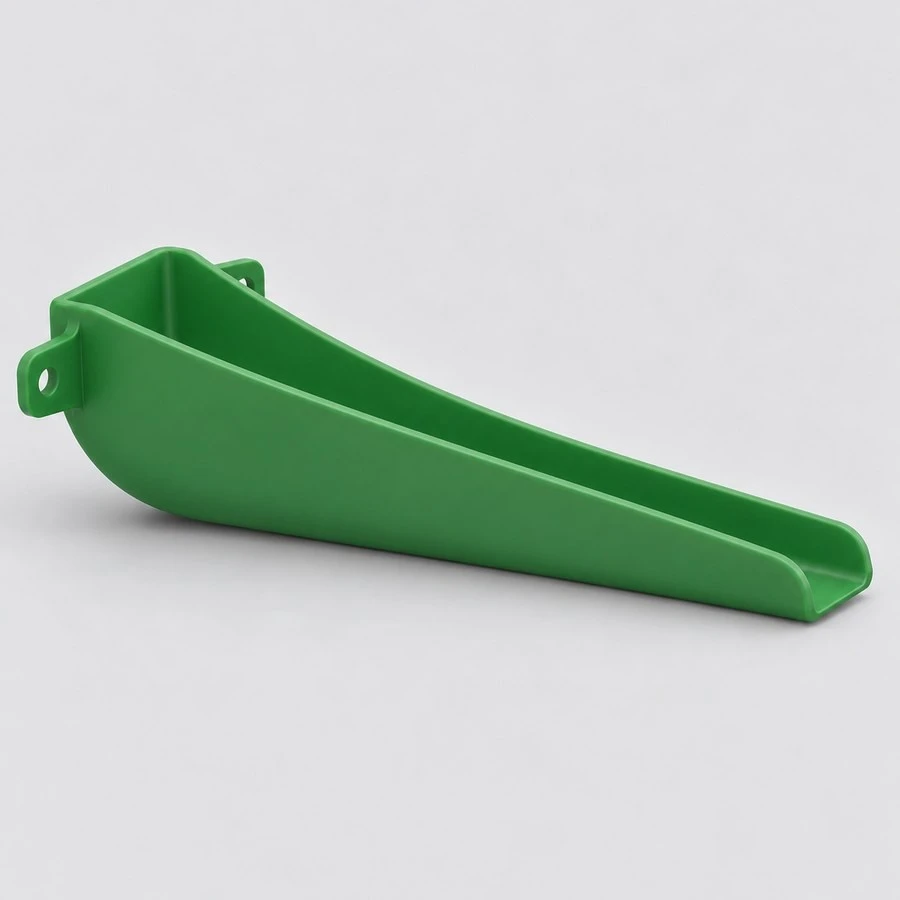

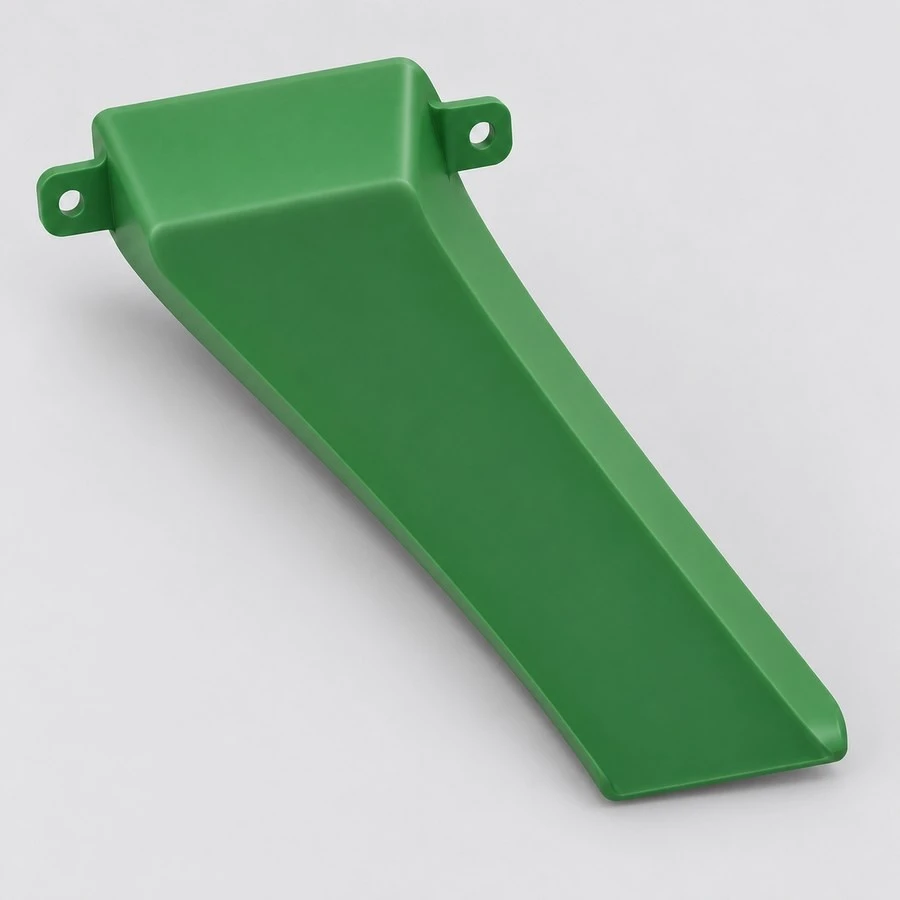

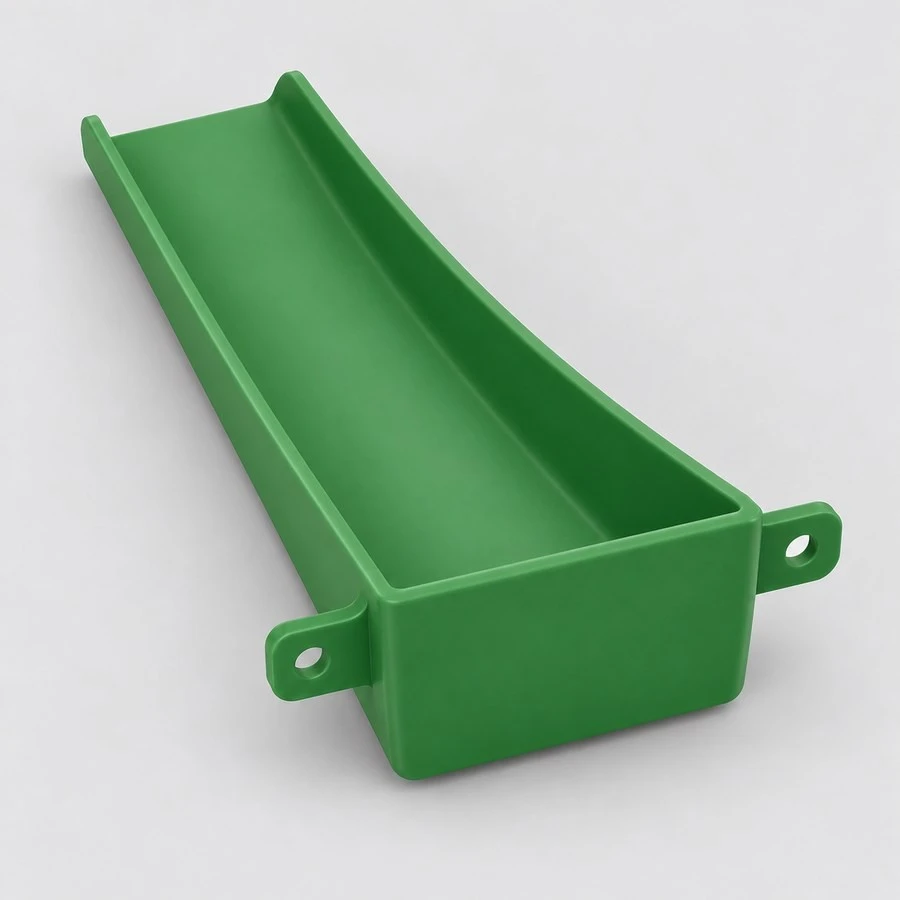

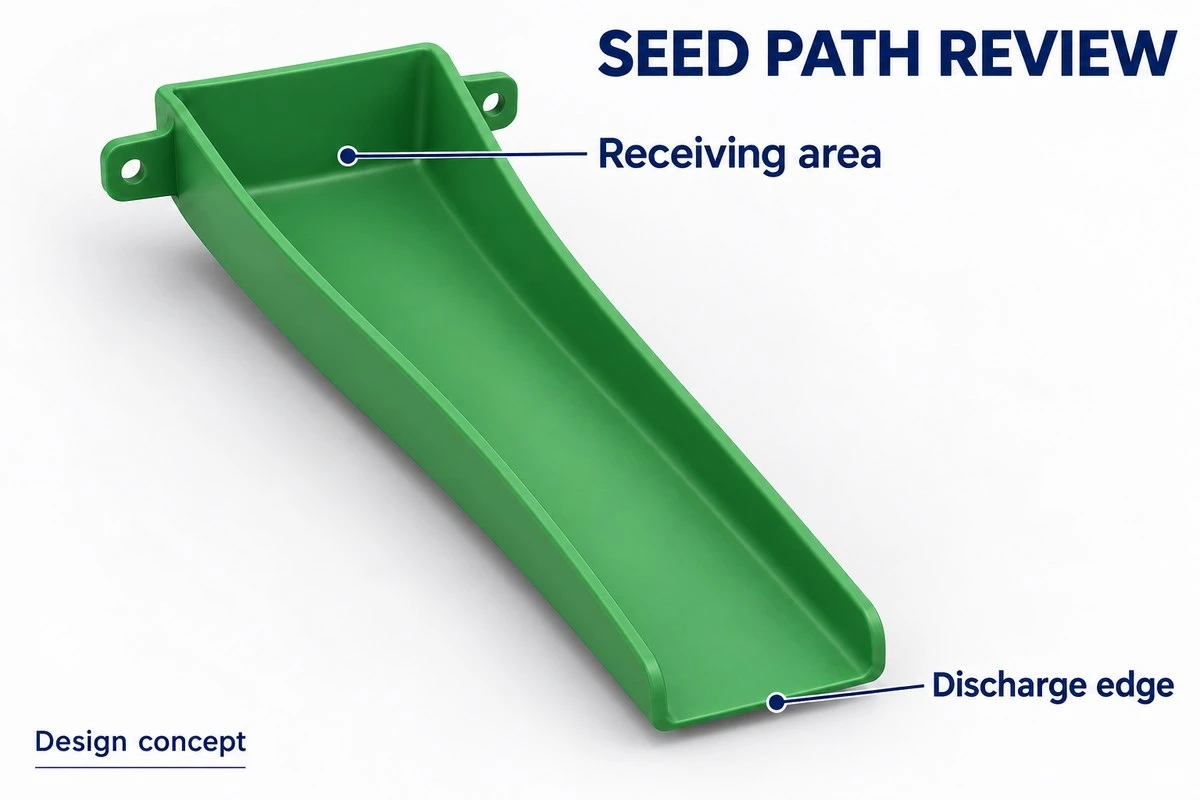

This polypropylene injection molding concept is a top-fed, open guide trough for directing discharged seeds toward a downstream opening or seed tube. The broad receiving area sits below the metering outlet, while the channel narrows toward a free discharge edge. Sidewalls define the path, and two external fixing ears locate the component on the customer's machine.
It is a seed transfer guide, not a rotating metering disc or a cup that picks up individual seeds. The concept does not determine seed spacing or meter the quantity released. Its role and geometry must be assessed as part of the complete planter assembly. All product images are design illustrations; they do not document a tested or mass-produced part.
Define the Seed Envelope, Not Only the Crop Name
A crop name alone is not enough to define a guide channel. Specify the smallest and largest seed dimensions, shape variation and any coating or treatment used. Include the intended feed rate and the position from which seeds enter the receiving area. These inputs form the basis for reviewing the channel width, sidewall height and transition toward the discharge point.
The illustrated taper is only a starting concept. No universal channel width, slope or bend profile is specified. The final design should be checked with representative seeds in the actual installation, including the machine's intended orientation and operating conditions.
Drawing-Based Component Details
| Feature | Customization basis |
|---|---|
| Material | PP / polypropylene; grade selected for the stated use environment |
| Process | Custom injection molding after part and tool feasibility review |
| Receiving area | Width, depth and backstop geometry matched to the meter outlet layout |
| Guide channel | Length, taper, floor profile and sidewall height by customer drawing |
| Discharge interface | Free-edge position and transition to the downstream opening |
| Mounting ears | Hole centers, fastening direction and bracket clearance to be defined |
| Appearance | Green illustrated; final molded color and contact-surface finish by agreement |
| Files required | STP / STEP / IGS plus critical dimensions or an assembly PDF |
| Commercial scope | MOQ, tooling charge, samples and unit price quoted against the drawing and volume |
Review the Discharge Joint as a Separate Interface

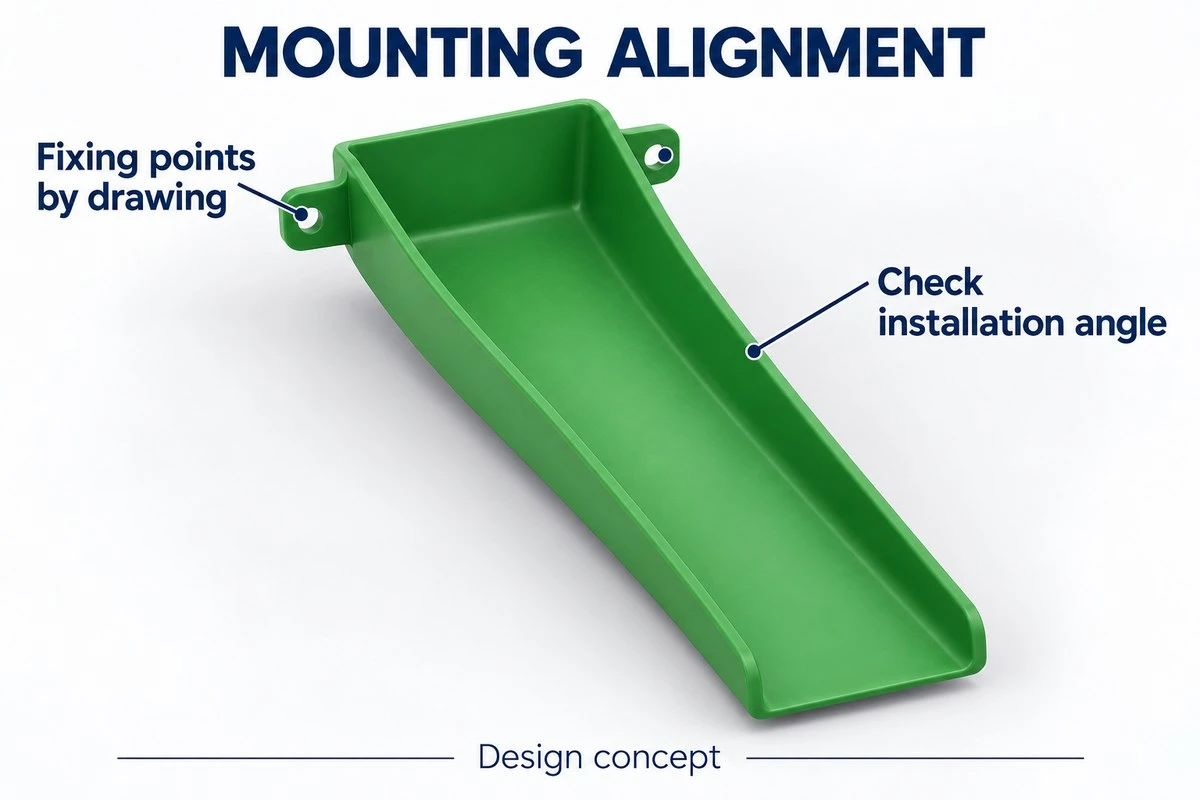

The narrow end must be considered together with the receiving tube or opening below it. Show the relative position of both parts in the assembly drawing. Check the intended overlap, any gap between components and access for removal. A chute that fits its mounting screws may still discharge outside the next opening if the installation angle is wrong.
Keep fastening features outside the intended seed path where the design allows. Define the permissible surface condition at the outlet edge and on seed-contact areas, including how flash or gate vestige will be inspected. These are project requirements to agree before samples are accepted.
Access for Emptying and Cleaning
Describe how operators empty the planter and change seed types. The open-top concept allows the channel to be viewed when the surrounding assembly provides access. Confirm whether the guide can be removed without disturbing the metering unit, and show the space needed to reach its fasteners. Any pockets, ledges or inaccessible joints should be reviewed against the required clean-out procedure.
Agree on the PP Grade and Sample Checks
State whether the part will remain inside a covered mechanism or experience sunlight, low temperatures, seed treatments or cleaning chemicals. A green color does not establish UV stabilization, and the PP material name does not establish chemical compatibility or wear life. Specify the relevant exposure conditions and any required material records so a grade can be evaluated.
- Check mounting-hole location and the installed discharge position against assembly datums.
- Inspect the seed-contact surface and outlet edge against the agreed finish requirements.
- Trial representative seed sizes and coatings at the intended machine angle and feed conditions.
- Observe transfer, retention of residual seed and clean-out access using an agreed acceptance procedure.
- Confirm any further environmental or durability validation before approving production.
No seed-damage rate, blockage-free performance, planting accuracy or field-life rating is claimed for this design illustration.
Prepare Your Agricultural OEM Enquiry
Please provide the metering-unit interface, downstream tube position, seed envelope, fastening layout and available space. Add your first-order quantity, annual demand, target color, operating environment and inspection priorities. Explore related custom PP parts or the broader plastic injection parts range.
Email amanda@tjswks.com with the STEP/STP/IGS file and installation reference for a quotation covering the proposed seed guide chute and its tooling.
